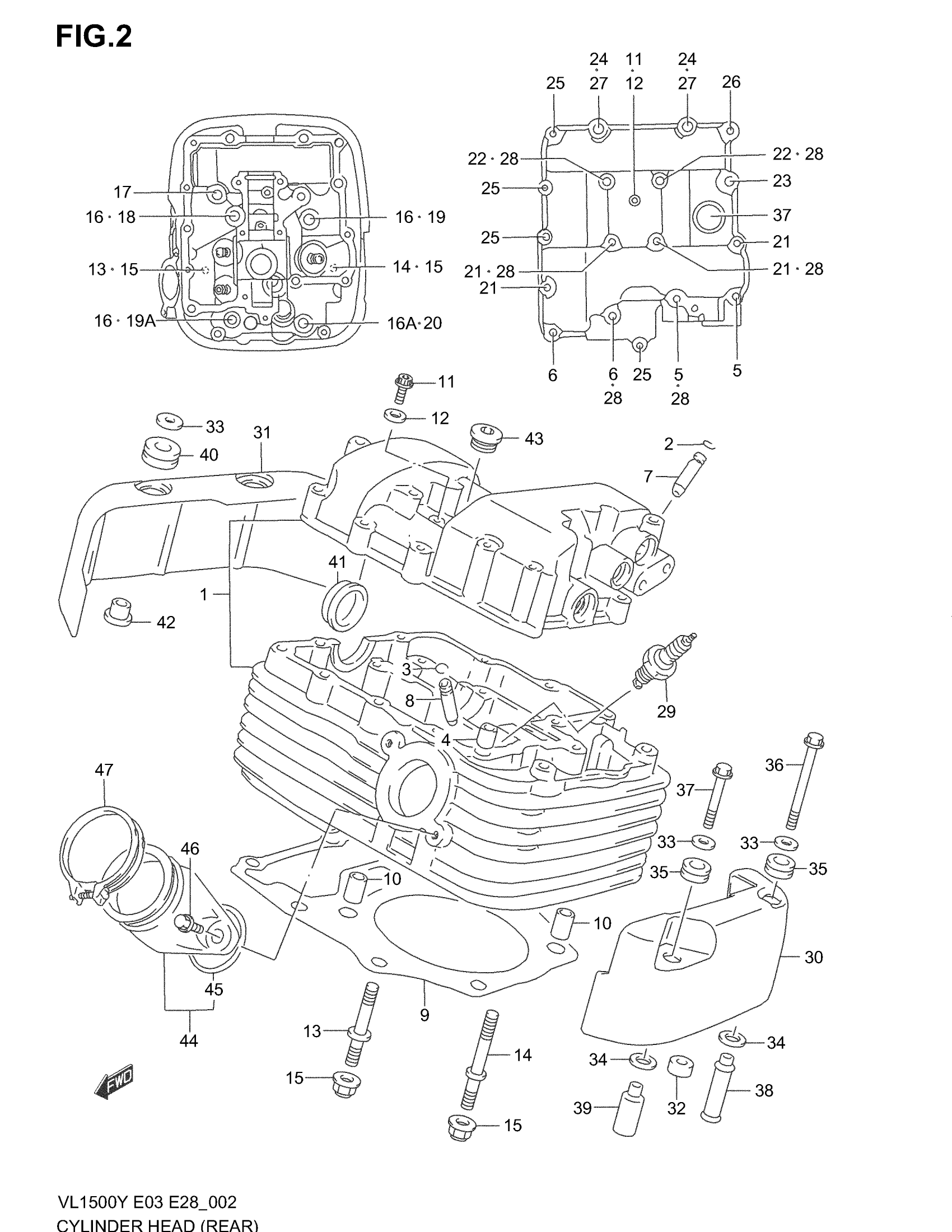

Suzuki VL1500 (2004) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 6

11103-10F10

Unavailable

2

.RING (10X85)

09381-10004

$1.35

3

RING, VALVE GUIDE EXHAUST

09381-10003

$2.69

4

PIN

09206-08001

$1.77

5

BOLT (6X60)

09103-06064

$2.13

6

BOLT (6X55)

09103-06102

$1.68

7

GUIDE, VALVE INTAKE (OS:0.3) | OPT

11115-38B70

Unavailable

8

GUIDE, VALVE EXHAUST (OS:0.3) | OPT

11115-45740

$45.97

9

GASKET, CYLINDER HEAD REAR

11142-10F00

$69.47

10

PIN

04211-13189

$2.19

11

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

12

GASKET

09168-06018

$1.70

13

STUD BOLT (L:30)

09108-08142

$2.87

14

STUD BOLT (M12/8)

09108-08205

$15.70

15

NUT (CHROME) | MODEL W

08316-10087

$2.24

15

NUT | MODEL X/Y/K1/K2/K3/K4 This part replaces 08316-10083.

08316-1008B

$2.65

16

WASHER

09160-10039

$2.24

16A

WASHER

09168-10017

$2.80

17

BOLT (8X57)

09103-08181

Unavailable

18

BOLT (10X180)

09103-10178

$13.30

19

BOLT (10X190)

09103-10179

$14.02

19A

BOLT (L:200)

09103-10180

$14.02

20

BOLT (10X215)

09103-10181

Unavailable

21

BOLT (6X50)

09103-06101

$2.72

22

BOLT (6X45)

09103-06112

Unavailable

23

BOLT (8X130)

09103-08086

Unavailable

24

BOLT (8X268)

09103-08213

$30.17

25

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

26

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

27

WASHER

09160-08130

$2.01

28

GASKET

09168-06023

$2.01

29

SPARK PLUG (NGK,DPR7EA-9)

09482-00354

$3.04

29

SPARK PLUG (NGK,DPR7EA-9) This part replaces 09482-00355.

09482-00354

$3.04

29

SPARK PLUG (NGK,DPR8EA-9) | OPT

09482-00334

$2.80

29

SPARK PLUG (DENSO,X24EPR-U9) | OPT

09482-00335

$4.90

29

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$2.85

29

SPARK PLUG (DENSO,X27EPR-U9) | OPT

09482-00331

$5.77

30

CAP, HEAD COVER LH

11173-10F00

$218.02

31

CAP, HEAD COVER RH

11174-10F00

Unavailable

32

CUSHION, HEAD COVER CAP

11273-24B00

$4.26

33

WASHER, HEAD COVER CAP UPPER

09160-06084

$1.77

34

WASHER, HEAD COVER CAP LOWER

09160-09016

$2.50

35

CUSHION, HEAD COVER CAP NO.2

09320-09016

$1.97

36

BOLT, HEAD COVER CAP NO.1

01547-06707

$2.77

37

BOLT, HEAD COVER CAP NO.2

01547-06507

$2.42

38

SPACER, HEAD COVER CAP NO.1

11179-10F00

$18.23

39

SPACER, HEAD COVER CAP NO.2

11179-10F10

$13.73

40

CUSHION

09320-13015

$2.80

41

PLUG, CYLINDER HEAD

09241-30008

$6.45

42

BUSH

09301-08007

$7.38

43

PLUG, HEAD COVER

09248-22004

$17.87

44

PIPE, INTAKE REAR | Includes Item(s) 45

13102-10F00

$73.95

45

O RING (D:1.9,ID:40.7)

09280-41007

$8.16

46

SCREW

09119-06092

$2.87

47

CLAMP, INTAKE PIPE

09402-52208

$4.84
