2004 Suzuki VL1500 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2004 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

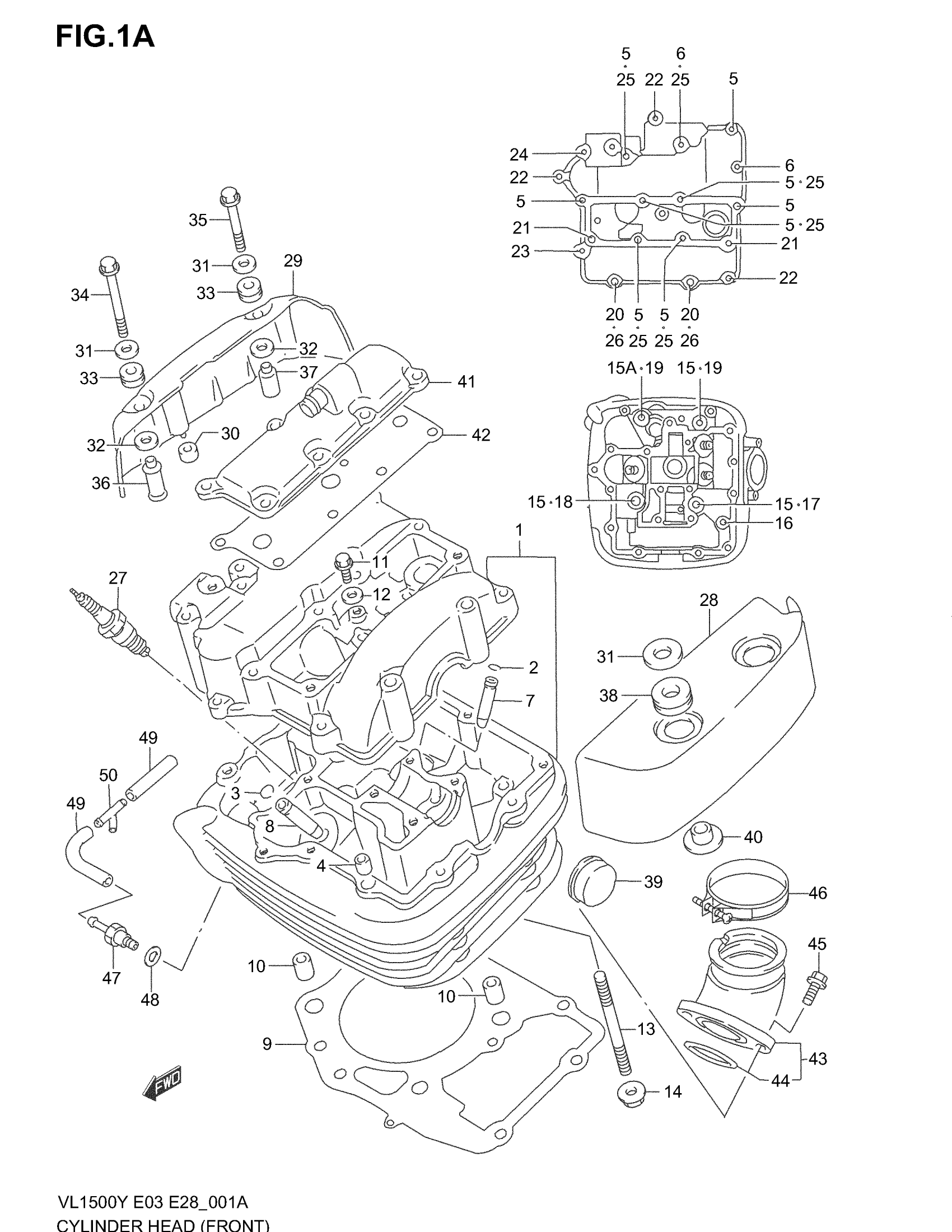

2004 Suzuki VL1500 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 6

11101-10F10

1
Out of stock

2

.RING (10X85)

09381-10004

2
Out of stock

3

RING, VALVE GUIDE EXHAUST

09381-10003

1
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT (6X60)

09103-06064

8
Out of stock

6

BOLT (6X55)

09103-06102

2
Out of stock

7

GUIDE, VALVE INTAKE (OS:0.3) | OPT

11115-38B70

2
Out of stock

8

GUIDE, VALVE EXHAUST (OS:0.3) | OPT

11115-45740

1
Out of stock

9

GASKET, CYLINDER HEAD FRONT

11141-10F00

1
Out of stock

10

PIN

04211-13189

2
Out of stock

11

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

1
Out of stock

12

GASKET

09168-06018

1
Out of stock

13

STUD BOLT (L:30)

09108-08142

2
Out of stock

14

NUT (CHROME) | MODEL W

08316-10087

2
Out of stock

14

NUT | MODEL X/Y/K1/K2/K3/K4 This part replaces 08316-10083.

08316-1008B

2
Out of stock

15

WASHER

09160-10039

3
Out of stock

15A

WASHER

09168-10017

1
Out of stock

16

BOLT (8X70)

09103-08099

1
Out of stock

17

BOLT (10X180)

09103-10178

1
Out of stock

18

BOLT (10X190)

09103-10179

1
Out of stock

19

BOLT (L:200)

09103-10180

2
Out of stock

20

BOLT (8X268)

09103-08213

2
Out of stock

21

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

22

BOLT This part replaces 01550-06303.

01550-0630A

3
Out of stock

23

BOLT This part replaces 01550-06353.

01550-0635A

1
Out of stock

24

BOLT This part replaces 01550-06703.

01550-0670B

1
Out of stock

25

GASKET

09168-06023

6
Out of stock

26

WASHER

09160-08130

2
Out of stock

27

SPARK PLUG (NGK,DPR7EA-9)

09482-00354

1
Out of stock

27

SPARK PLUG (NGK,DPR7EA-9) This part replaces 09482-00355.

09482-00354

1
Out of stock

27

SPARK PLUG (NGK,DPR8EA-9) | OPT

09482-00334

1
Out of stock

27

SPARK PLUG (DENSO,X24EPR-U9) | OPT

09482-00335

1
Out of stock

27

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

1
Out of stock

27

SPARK PLUG (DENSO,X27EPR-U9) | OPT

09482-00331

1
Out of stock

28

CAP, HEAD COVER LH

11171-10F00

1
Out of stock

29

CAP, HEAD COVER RH

11172-10F00

1
Out of stock

30

CUSHION, HEAD COVER CAP

11273-24B00

2
Out of stock

31

WASHER, HEAD COVER CAP UPPER

09160-06084

2
Out of stock

32

WASHER, HEAD COVER CAP LOWER

09160-09016

2
Out of stock

33

CUSHION, HEAD COVER CAP NO.2

09320-09016

2
Out of stock

34

BOLT, HEAD COVER CAP NO.1

01547-06707

1
Out of stock

35

BOLT, HEAD COVER CAP NO.2

01547-06507

1
Out of stock

36

SPACER, HEAD COVER CAP NO.1

11179-10F00

1
Out of stock

37

SPACER, HEAD COVER CAP NO.2

11179-10F10

1
Out of stock

38

CUSHION

09320-13015

2
Out of stock

39

PLUG, CYLINDER HEAD

09241-30008

1
Out of stock

40

BUSH

09301-08007

2
Out of stock

41

COVER, BREATHER

11180-38B10

1
Out of stock

42

GASKET, BREATHER COVER

11177-38B01-H17

1
Out of stock

43

PIPE, INTAKE FRONT | Includes Item(s) 44

13101-10F00

1
Out of stock

44

O RING (D:2.4,ID:41.7)

09280-41007

1
Out of stock

45

BOLT

09119-06092

2
Out of stock

46

CLAMP, INTAKE PIPE

09402-52208

1
Out of stock

47

UNION, INTAKE PORT

09362-06002

1
Out of stock

48

GASKET

09168-06018

1
Out of stock

49

HOSE (3.5X7.5X600) | L:600!70 This part replaces 09355-35755-600.

09355-35007-600

2
Out of stock

50

3 WAY

09367-04007

1
Out of stock
