Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-38B00

$146.87

2

GUIDE, CAM CHAIN FRONT

12771-38B00

$81.27

3

GUIDE, CAM CHAIN REAR

12771-10F00

$81.27

4

TENSIONER, CAM CHAIN

12811-38B00

$79.35

5

BOLT (6X26)

09100-06129

$2.58

6

WASHER

08211-06182

$2.08

7

SPACER

09180-06184

Unavailable

8

ADJUSTER ASSY, TENSIONER FRONT This part replaces 12831-38A00.

12831-38A01

$168.88

9

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$2.80

10

BOLT This part replaces 07130-06453.

07130-0645B

$4.45

11

ADJUSTER ASSY, TENSIONER REAR This part replaces 12832-38A00.

12832-38A01

$173.67

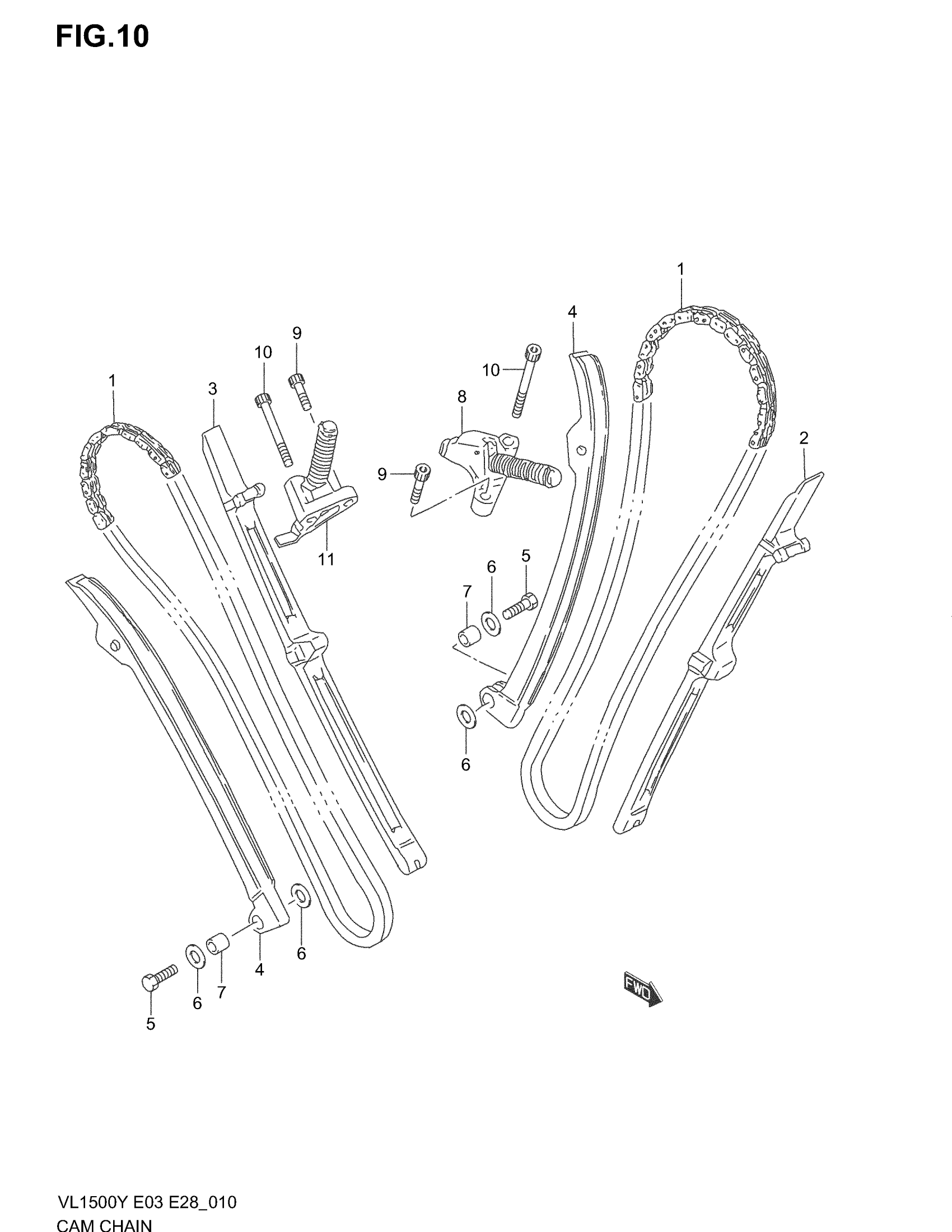

Suzuki VL1500 (2004) CAM CHAIN Diagram
