2004 Suzuki VL1500 Camshaft/valve Diagram

← All diagrams

Find the part on the Camshaft/valve diagram for your 2004 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

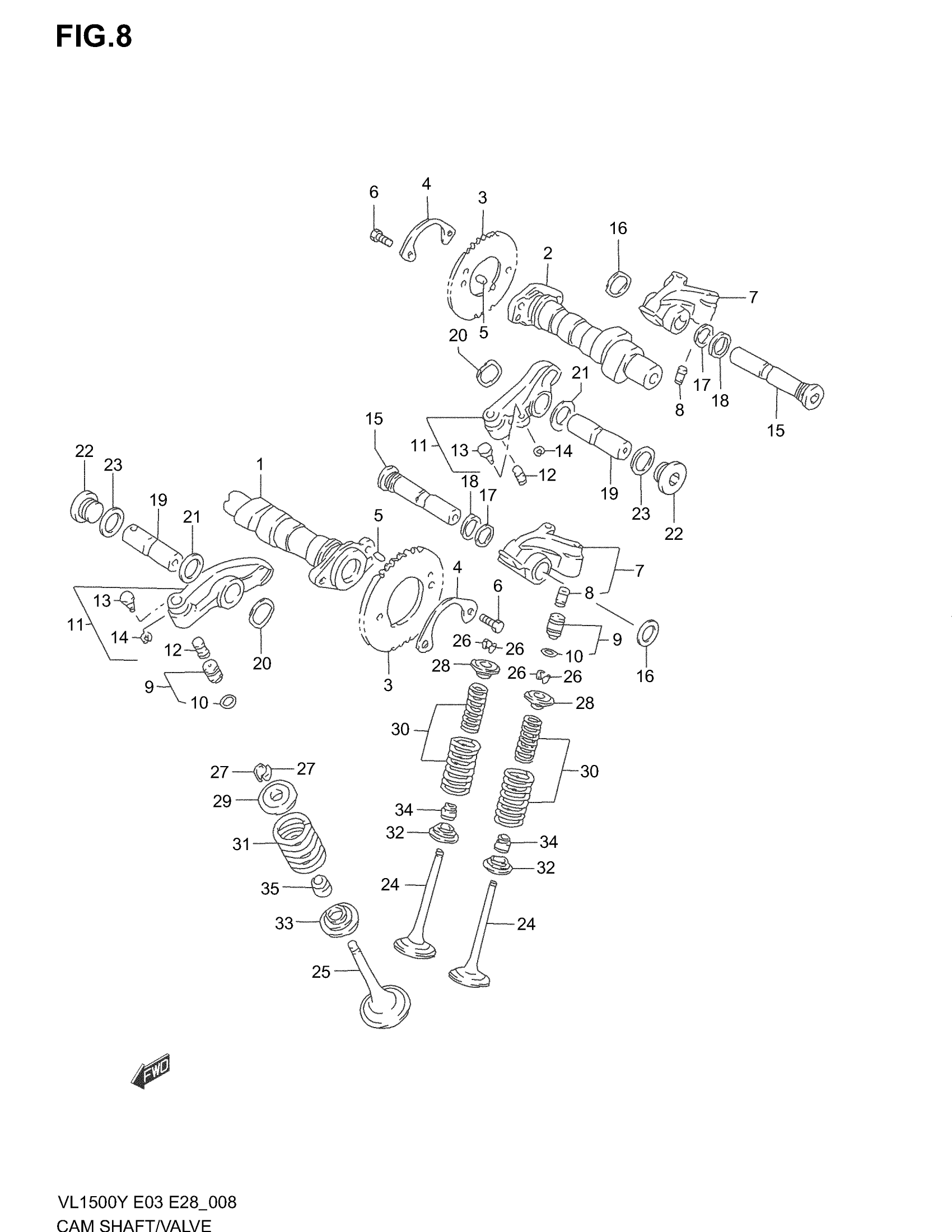

2004 Suzuki VL1500 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT, FRONT

12711-38B00

1
Out of stock

2

CAMSHAFT, REAR

12713-10F00

1
Out of stock

3

SPROCKET, CAMSHAFT | MODEL W/X This part replaces 12741-38B00.

12741-38B01

2
Out of stock

3

SPROCKET, CAMSHAFT | MODEL Y/K1/K2/K3/K4

12741-38B01

2
Out of stock

4

WASHER This part replaces 12747-44000.

12747-44001

2
Out of stock

5

PIN | MODEL W/X

04221-05109

2
Out of stock

5

PIN (5X8) | MODEL Y/K1/K2/K3/K4

09261-05005

2
Out of stock

6

BOLT (6X12.5)

09111-06027

4
Out of stock

7

ARM, VALVE ROCKER IN | Includes Item(s) 8

12840-38B01

2
Out of stock

8

CHAMBER, ADJUSTER

12863-38B00

4
Out of stock

9

ADJUSTER, VALVE LASH | Includes Item(s) 10

12860-38B01

6
Out of stock

10

O RING

12864-38B01

6
Out of stock

11

ARM, VALVE ROCKER FRONT EX | Includes Item(s) 12 - 14

12850-38B02

2
Out of stock

12

CHAMBER, ADJUSTER

12863-38B00

2
Out of stock

13

PIN, DECOMP

12844-38B00

2
Out of stock

14

E RING This part replaces 08332-11033.

08332-1103A

2
Out of stock

15

SHAFT, VALVE ROCKER ARM IN

12861-38B00

2
Out of stock

16

WASHER, WAVE

09164-14012

2
Out of stock

17

WASHER

09181-14139

2
Out of stock

18

GASKET

09168-16003

2
Out of stock

19

SHAFT, VALVE ROCKER ARM EX

12871-38B00

2
Out of stock

20

WASHER, WAVE

09164-16003

2
Out of stock

21

WASHER

09160-16033

2
Out of stock

22

PLUG, ROCKER ARM SHAFT

09248-18004

2
Out of stock

23

GASKET

09168-18003

2
Out of stock

24

VALVE, INTAKE

12911-38B00

4
Out of stock

25

VALVE, EXHAUST

12912-38B00

2
Out of stock

26

COTTER, VALVE

12932-24400

8
Out of stock

27

COTTER, VALVE EX

12932-82000

4
Out of stock

28

RETAINER, SPRING This part replaces 12931-33200.

12931-33201

4
Out of stock

29

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

2
Out of stock

30

SPRING SET, VALVE IN

12920-06B00

4
Out of stock

31

SPRING, VALVE EX

12922-44110

2
Out of stock

32

SEAT, SPRING IN

12933-33201

4
Out of stock

33

SEAT, SPRING EX

12933-45001

2
Out of stock

34

OIL SEAL, IN (5.5X11X8.2)

09289-05015

4
Out of stock

35

OIL SEAL, EX (7X14.4X9)

09289-07002

2
Out of stock
