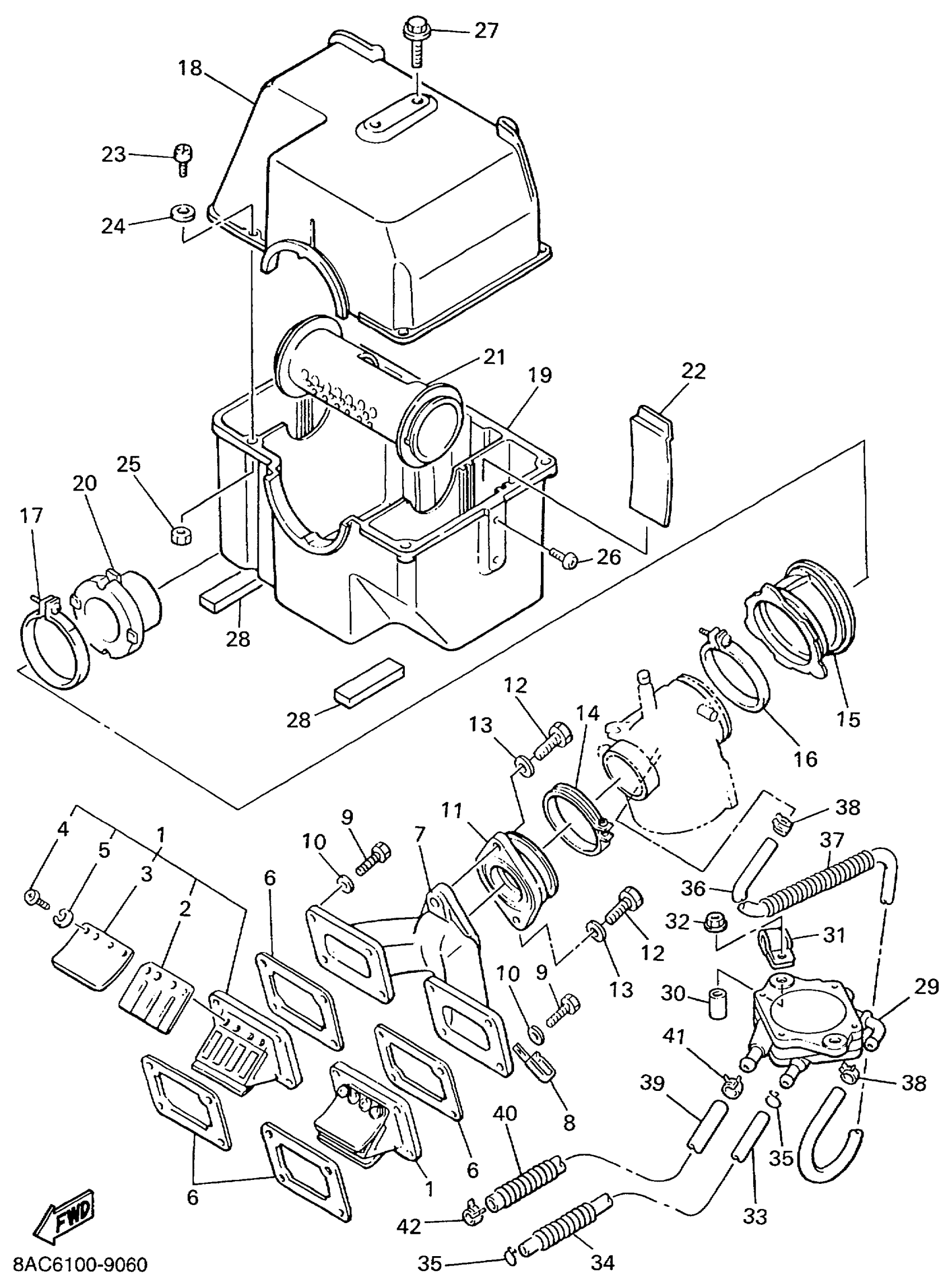

Yamaha VK540EC (VK540 III) 8AC6 1999 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

8AT-13610-00-00

$154.68

2

REED, VALVE

8AT-13613-00-00

$28.12

3

STOPPER REED VALVE

8H8-13616-00-00

$4.45

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

5

WASHER, SPRING

92990-03100-00

$6.17

6

GASKET, MANIFOLD

8Y7-13556-01-00

$6.92

7

JOINT, CARBURETOR

83R-13565-00-00

$91.28

8

CLAMP(51Y)

90465-08277-00

$9.43

9

BOLT, HEXAGON

97017-06025-00

$2.98

10

WASHER(6TA)

92907-06600-00

$0.78

11

MANIFOLD

8G8-13555-01-00

$106.31

12

BOLT, HEXAGON

97017-08025-00

$7.46

13

WASHER(6TA)

92907-08600-00

$2.52

14

BAND

86M-13575-00-00

$16.45

15

JOINT, AIR CLEANER 1

83R-14453-00-00

$40.42

16

CLAMP, HOSE (29L)

90460-68230-00

$12.54

17

HOSE CLAMP ASSY(3TU)

90450-99050-00

$12.72

18

SILENCER

8H8-14431-00-00

$61.62

19

SILENCER

8H8-14441-00-00

$109.58

20

PIPE

83R-14465-00-00

$20.72

21

PIPE, BALANCE 2

8H8-14466-00-00

$20.83

22

PLATE

8H8-14477-00-00

$3.78

23

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

24

WASHER(1RW)

92907-05600-00

$0.78

25

NUT, HEXAGON SMALL

95317-05700-00

$6.18

26

SCREW, PAN

98507-06010-00

$2.69

27

BOLT, FLANGE

95817-06012-00

$1.49

28

DAMPER 1

83R-14425-00-00

$6.40

29

FUEL PUMP ASSY

8AT-24410-00-00

$220.48

30

COLLAR (8U7)

90387-105G5-00

$7.35

31

CLAMP (706)

90465-06100-00

Unavailable

32

NUT, FLANGE(4MV)

95707-06500-00

$0.78

33

HOSE (L400)

90445-116K9-00

$19.08

34

SPRING, COMPRESSION (3LD4)

90501-084G9-00

$3.98

35

CLIP (7K7)

90467-11044-00

$5.10

36

HOSE (L420)

90445-092K1-00

$10.63

37

SPRING, COMPRESSION(7MX)

90501-084J0-00

$5.86

38

CLIP (8A1)

90467-09026-00

$2.72

39

HOSE (L210)

90445-110F5-00

$14.08

40

PROTECTOR, PIPE

84M-24327-00-00

$3.77

41

CLIP (7K7)

90467-11044-00

$5.10

42

CLIP (8J7)

90467-11009-00

$7.55
