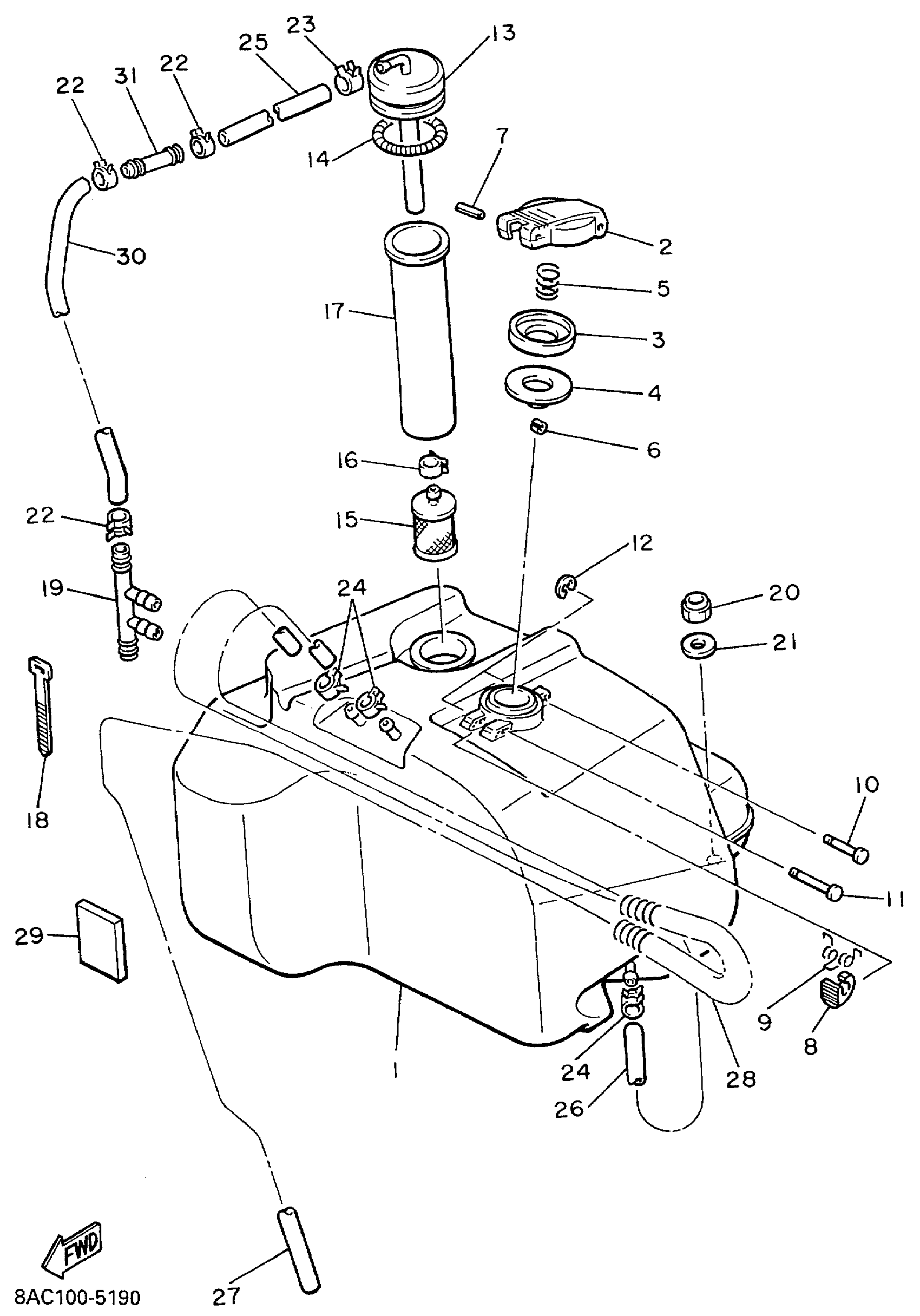

Yamaha VK540EC (VK540 III) 8AC6 1999 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

83R-24111-00-00

Unavailable

2

BODY, CAP

8W6-24611-00-00

$39.46

3

DISK,CAP

813-24613-01-00

$18.71

4

GASKET, CAP 1

89A-24641-00-00

$9.35

5

SPRING, CAP

90501-20130-00

$6.80

6

PIN, SPRING

91690-30016-00

$5.88

7

PIN, SPRING (8W6)

91609-25050-00

$1.20

8

HOOK

83M-24628-00-00

$19.68

9

SPRING, TORSION(81E)

90508-10715-00

$5.48

10

PIN (8W6)

90249-03175-00

$2.57

11

PIN (813)

90249-03017-00

$2.25

12

CIRCLIP (604)

93430-02001-00

$6.69

13

PIPE, SUCTION 1

83R-24335-00-00

$24.65

14

SPRING, TENSION (8R4)

90506-06261-00

$6.94

15

FILTER ASSY

8H5-24560-00-00

$11.47

16

CLIP (7K7)

90467-11044-00

$5.10

17

PIPE, SUCTUIN

813-24336-00-00

$28.46

18

BAND

341-26397-01-00

Unavailable

19

PIPE, JOINT 1

82M-24376-00-00

$28.02

20

NUT, NYLON

95717-08300-00

$2.57

21

WASHER, PLATE (3L7)

90201-08784-00

$2.54

22

CLIP (8J7)

90467-11009-00

$7.55

23

CLIP (7K7)

90467-11044-00

$5.10

24

CLIP (8A1)

90467-09026-00

$2.72

25

HOSE (L390)

90445-115K6-00

Unavailable

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$12.58

27

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

28

PROTECTOR, PIPE

81E-24328-00-00

$6.98

29

SPACER

8V0-23858-00-00

$2.37

30

HOSE (L700)

90445-117F2-00

$24.48

31

PIPE, JOINT 4

878-24379-00-00

$6.46
