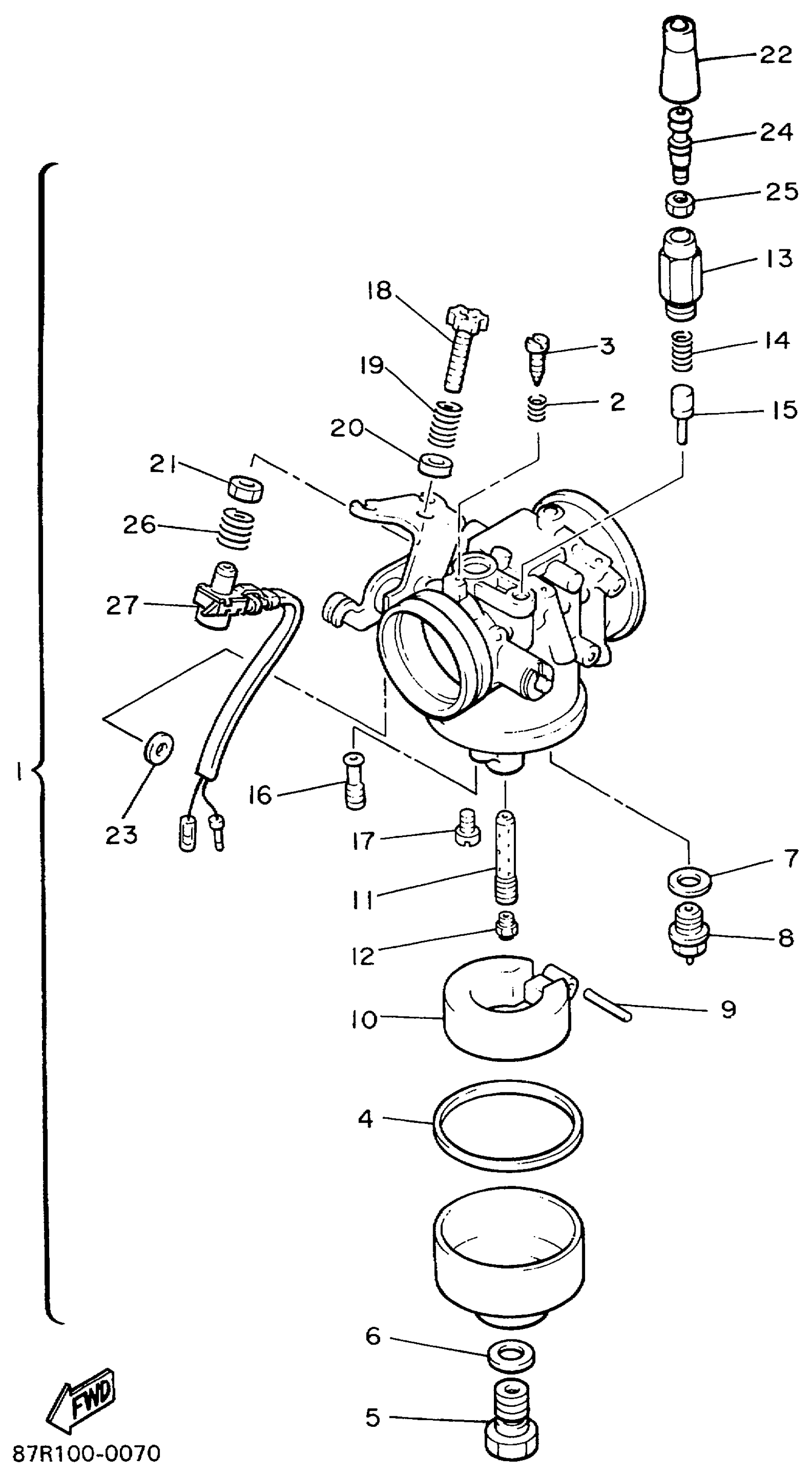

Yamaha VK540EC (VK540 III) 8AC6 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

86R-14101-03-00

$619.88

2

SPRING, AIR ADJUSTING

82A-14134-00-00

$8.22

3

SCREW, PILOT ADJUSTING

620-14211-00-00

$17.41

4

GASKET, FLOAT CHAMBER

8M6-14126-00-00

$16.37

5

HOLDER

8M6-14261-00-00

$39.83

6

GASKET

286-14198-00-00

$7.45

7

WASHER, VALVE SEAT

214-14195-00-00

$6.11

8

NEEDLE VALVE ASSY

83R-14190-15-00

$44.40

9

PIN,FLOAT

8M6-14186-00-00

$9.46

10

FLOAT ASSY

8M6-14185-00-00

$85.35

11

NOZZLE, MAIN

83R-14941-4E-00

$27.45

12

JET, MAIN (#141.3)

3G2-1423E-56-00

$10.45

12

JET, MAIN (#135)

3G2-14231-27-00

$10.60

12

JET, MAIN (#140)

3G2-14231-28-00

$11.09

12

JET,MAIN #132.5

3G2-1423A-77-00

$12.17

12

JET,MAIN #137.5

3G2-1423A-78-00

$10.57

12

JET,MAIN #142.5

3G2-1423A-79-00

$8.02

13

CAP, PLUNGER

8G8-14174-00-00

$23.77

14

SPRING, PLUNGER

127-14135-00-00

$6.40

15

PLUNGER, STARTER

8G8-14171-00-00

$26.92

16

JET, PILOT (# 90)

193-14142-90-A1

$11.08

16

JET, PILOT # 100

193-1414F-00-A1

Unavailable

17

CAP

8V0-14118-00-00

$12.45

18

. SCREW, THROTTLE

8V0-14122-00-00

Unavailable

19

SPRING

8X0-14500-00-00

$17.91

20

RING

8X0-14184-00-00

$20.43

21

. NUT

8V0-14358-00-00

Unavailable

22

CAP

8A7-14169-00-00

$15.80

23

WASHER

80L-14227-00-00

$3.78

24

CABLE ADJUST SCREW SET

12G-14106-00-00

$17.66

25

NUT, WIRE ADJUSTING

802-14161-00-00

$6.65

26

SPRING, THROTTLE STOP

8X0-14133-00-00

$15.40

27

SWITCH, CARBURETOR

87S-8259A-01-00

$73.57
