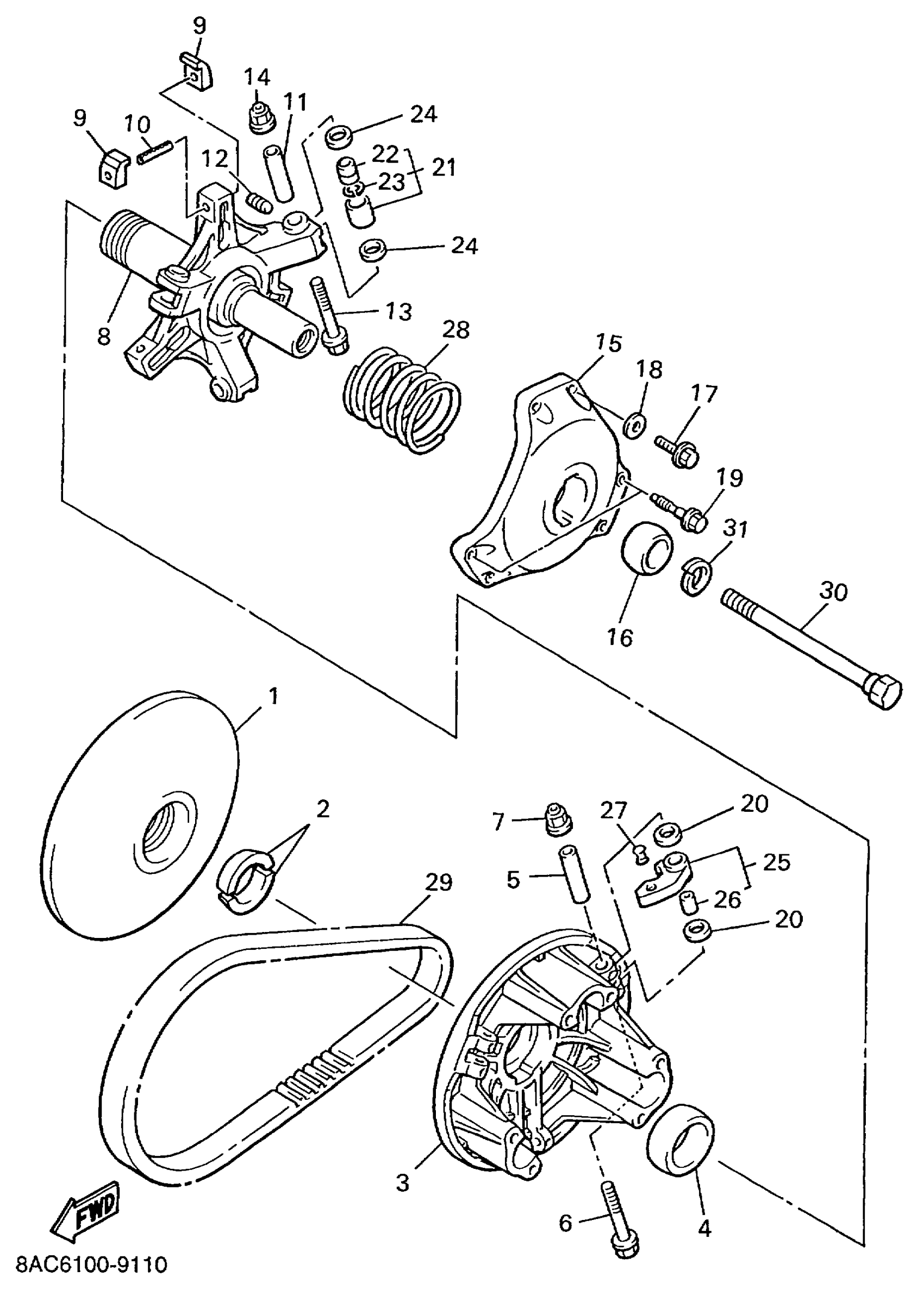

Yamaha VK540EC (VK540 III) 8AC6 1999 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

88R-17611-02-00

$103.89

2

STOPPER

8V0-17639-00-00

$10.52

3

SHEAVE, PRIMARY SLIDING

89F-17621-00-00

$213.62

4

BUSH(88R)

90389-41031-00

$73.72

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

7

NUT, S/L FLANGE

95607-05200-00

$6.86

8

SPIDER COMPLETE

8BW-17640-11-00

$293.52

9

SLIDER

8BW-17653-00-00

$13.86

10

PIN, SPRING (7F7)

91609-50032-00

$3.66

11

COLLAR

90387-0514T-00

$14.86

12

BOLT, SET

90113-05041-00

$6.68

13

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

14

NUT, S/L FLANGE

95607-05200-00

$6.86

15

CAP

88R-17631-01-00

$71.45

16

BUSH(83R)

90389-28032-00

$55.86

17

BOLT, HEXAGON

97017-06030-00

$3.00

18

WASHER(6TA)

92907-06600-00

$0.78

19

BOLT(89J)

90109-066F4-00

$4.15

20

WASHER, PLATE(88R)

90202-08204-00

$5.72

21

ROLLER, COMP

88R-17624-01-00

$42.62

22

BUSH(88K)

90386-08183-00

$22.97

23

CIRCLIP(88K)

93450-13133-00

$1.78

24

WASHER, PLATE(88R)

90202-08204-00

$5.72

25

WEIGHT COMP

8AT-17605-00-00

$83.94

26

BUSH(88R)

90386-08182-00

Unavailable

27

RIVET, COUNTER SUNK (8G8)

90261-06017-00

$3.52

27

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

$6.82

28

SPRING, COMPRESSION(8AT)

90501-481J1-00

$38.01

28

SPRING, COMPRESSION(89F)

90501-556G6-00

$33.15

28

SPRING, COMPRESSION(8AX)

90501-581J7-00

$31.54

29

V-BELT

89L-17641-02-00

Unavailable

30

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

30

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

31

WASHER(JN5)

92907-16100-00

$12.08
