2020 Kawasaki Versys-X 300 ABS Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

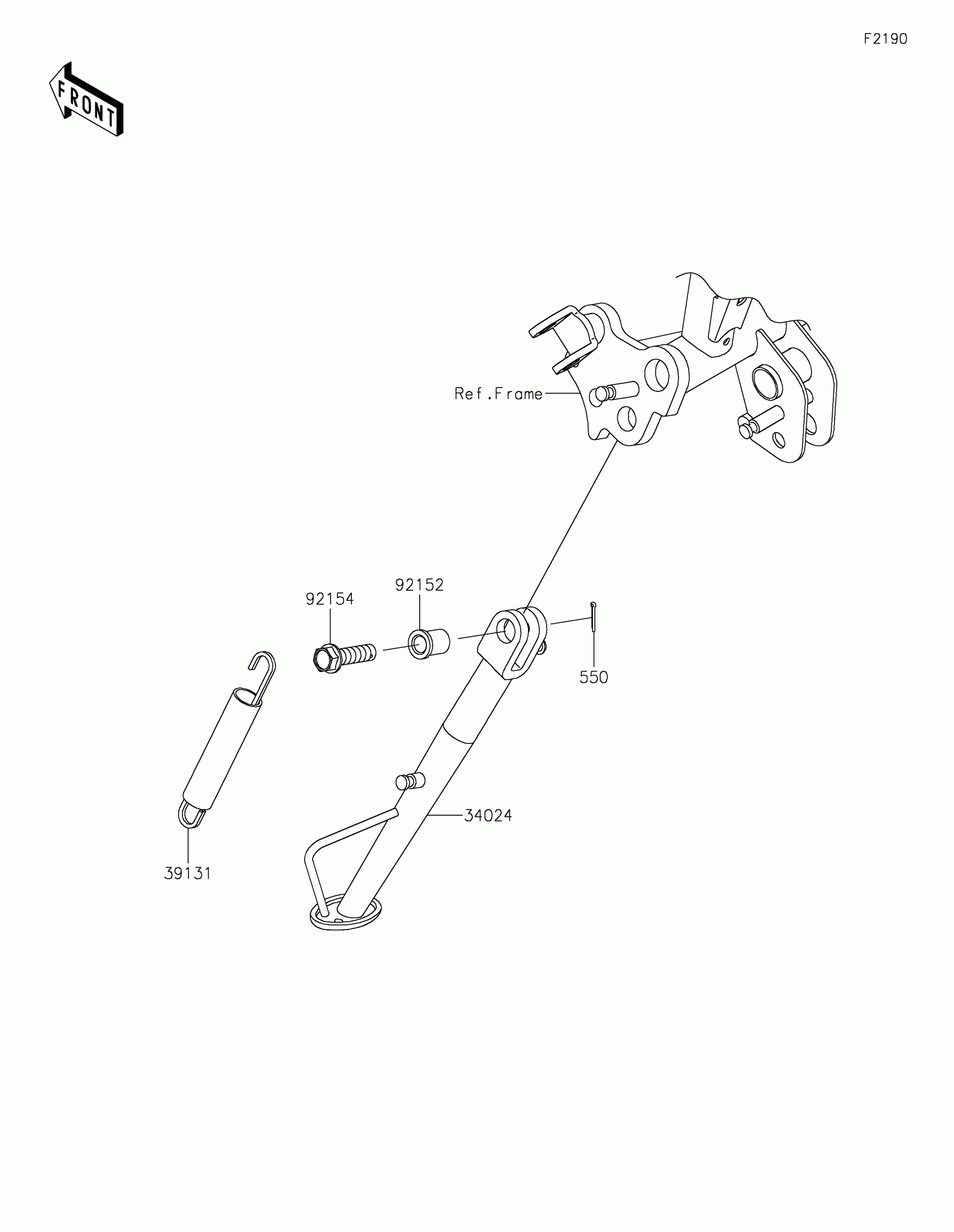

2020 Kawasaki Versys-X 300 ABS Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE

34024-0144

1
Out of stock

39131

SPRING-ASSY,SIDE STAND

39131-0002

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

92152

COLLAR,10.2X18X20.1

92152-2299

1
Out of stock

92154

BOLT,FLANGED,10X37

92154-1539

1
Out of stock
