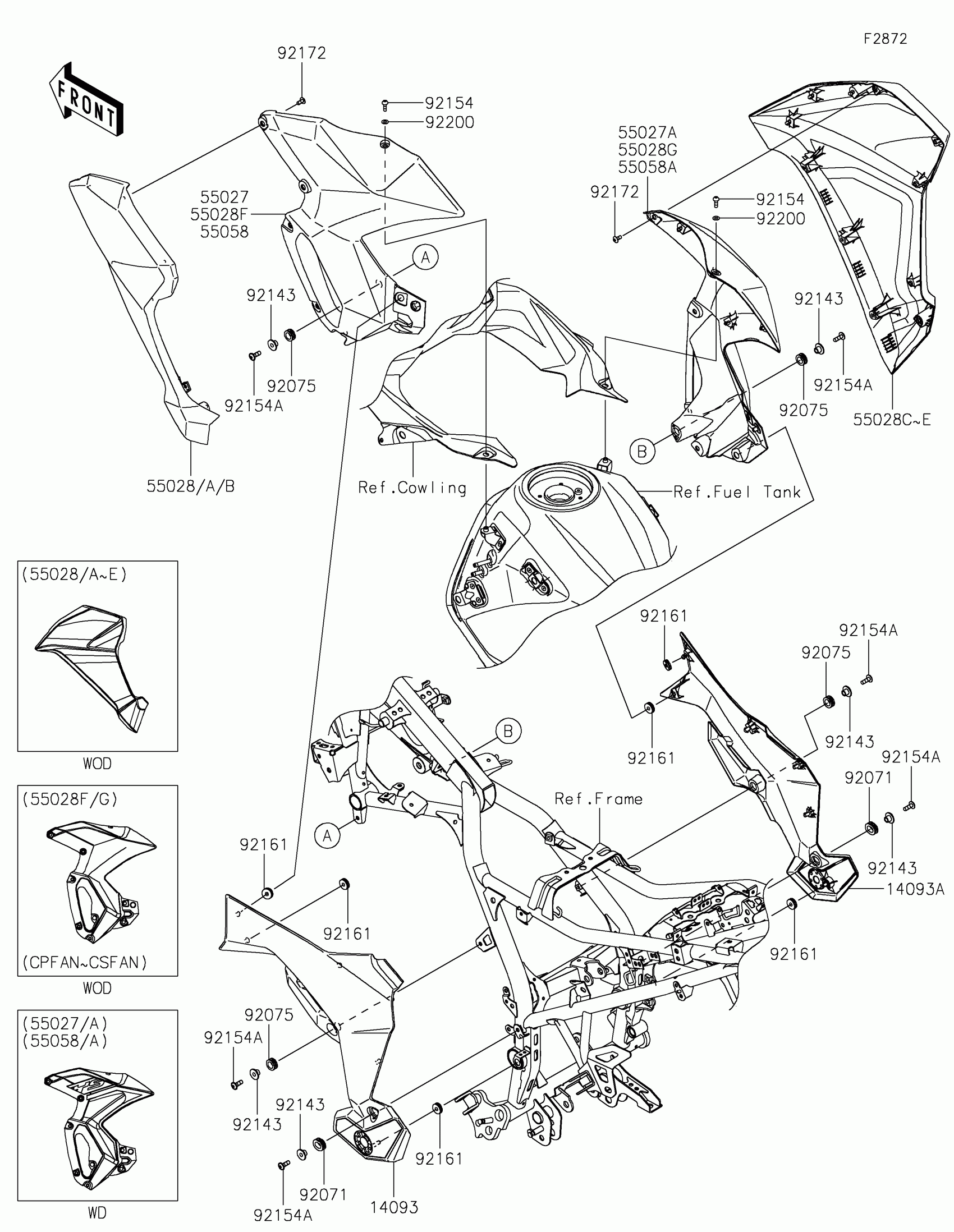

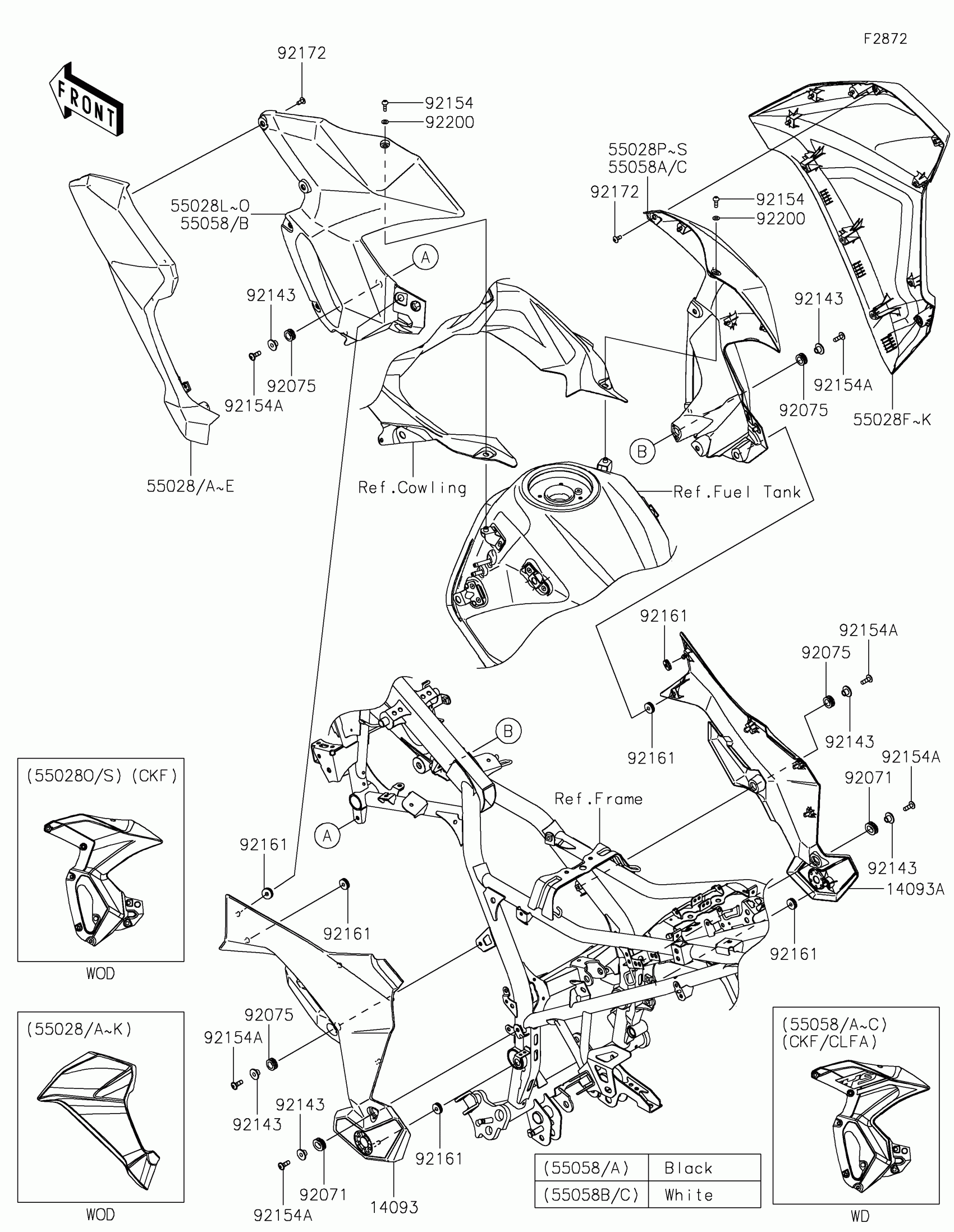

Kawasaki Versys-X 300 ABS Cowling Lowers Diagram

Description

Price

14093

COVER,PIVOT,LH

14093-0558

$126.51

14093A

COVER,PIVOT,RH

14093-0559

$144.75

55028C

COWLING,SIDE,LH,P.B.WHITE

55028-0626-54X

$242.59

55028E

COWLING,SIDE,LH,M.F.S.BLACK

55028-0626-739

$231.19

55028I

COWLING,SIDE,RH,P.B.WHITE

55028-0627-54X

$242.59

55028K

COWLING,SIDE,RH,M.F.S.BLACK

55028-0627-739

$231.19

55058

COWLING,TANK SIDE,LH,M.F.S.BLK

55058-5379-739

$522.66

55058A

COWLING,TANK SIDE,RH,M.F.S.BLK

55058-5381-739

$460.82

55058B

COWLING,TANK SIDE,LH,P.B.WHITE

55058-5481-54X

$459.89

55058C

COWLING,TANK SIDE,RH,P.B.WHITE

55058-5482-54X

$459.89

92071

GROMMET,20X24X8

92071-0768

$1.46

92075

DAMPER

92075-1634

$3.57

92143

COLLAR,L=9.6

92143-1016

$4.67

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,6X18

92154-2340

$1.57

92161

DAMPER,6X19X5.6

92161-1911

$0.76

92172

SCREW,5X12

92172-0821

$0.73

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36
