2020 Kawasaki Versys-X 300 ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

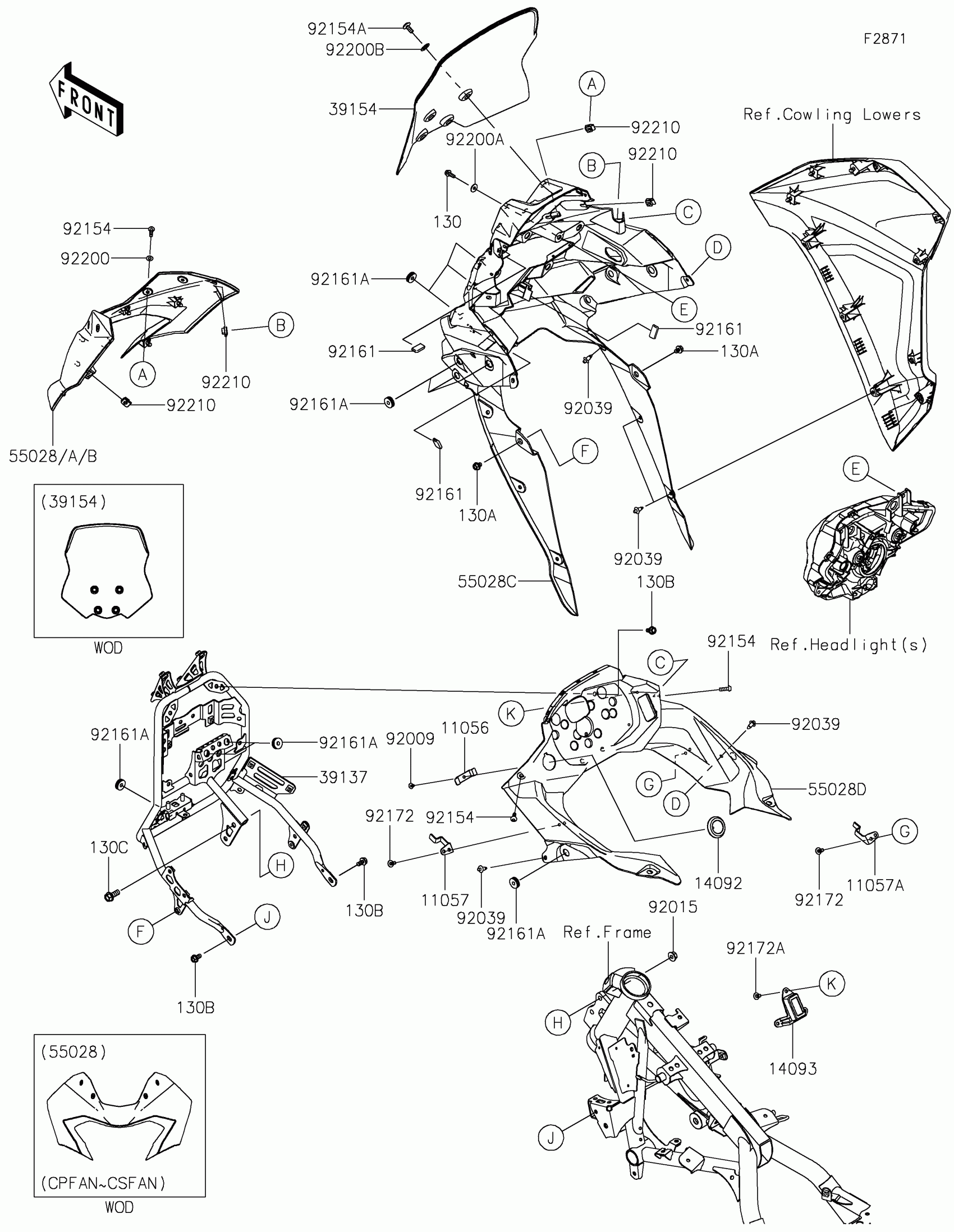

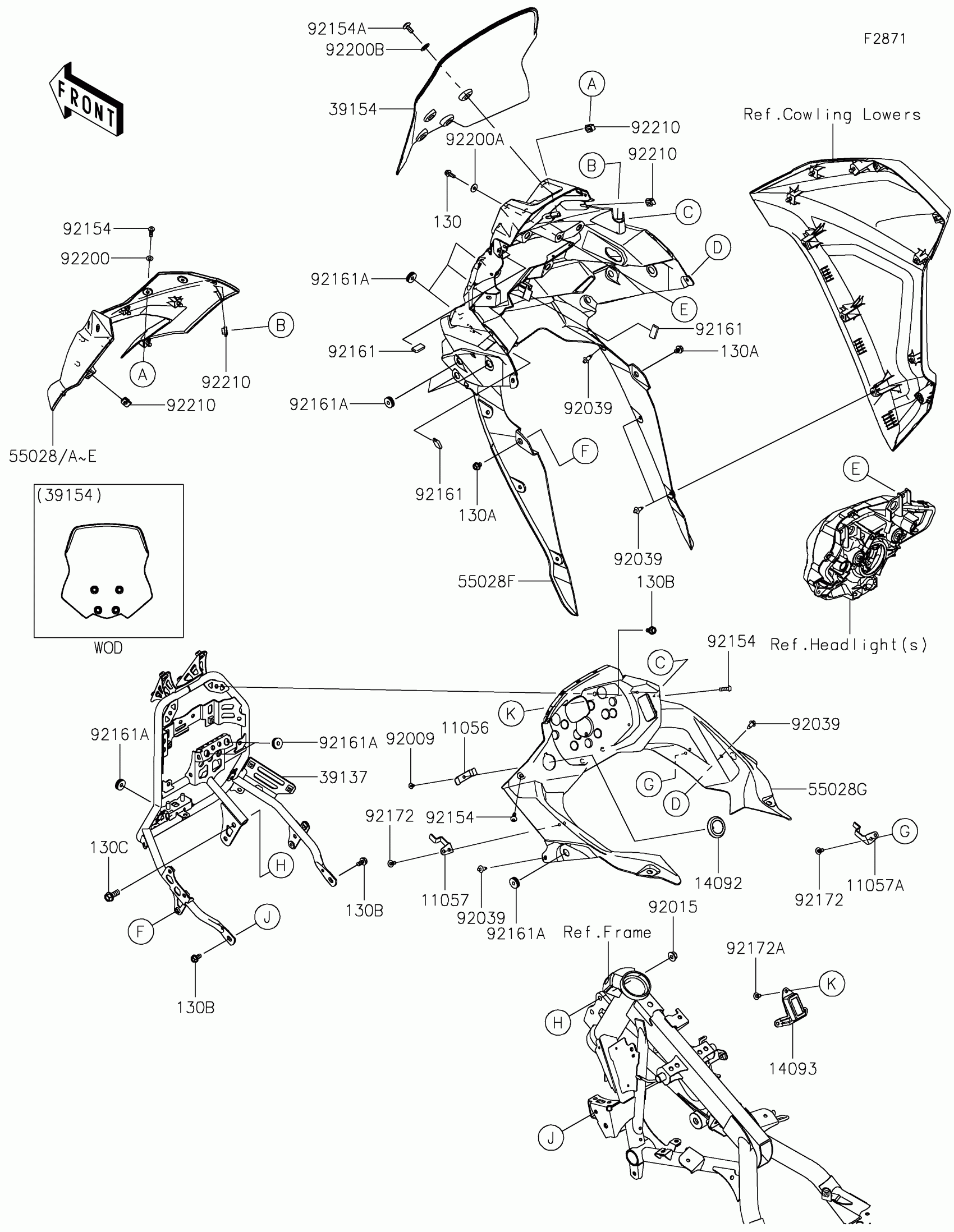

2020 Kawasaki Versys-X 300 ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CAP COVER

11056-4313

1
Out of stock

11057

BRACKET,INNER COWL.,LH

11057-0913

1
Out of stock

11057A

BRACKET,INNER COWL.,RH

11057-0914

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1
Out of stock

130A

BOLT-FLANGED,6X8

130BA0608

1
Out of stock

130B

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

130C

BOLT-FLANGED,8X20

130CA0820

1
Out of stock

14092

COVER,DC SOCKET

14092-0214

1
Out of stock

14093

COVER,FOG SW.

14093-0565

1
Out of stock

39137

STAY-COMP,METER

39137-0680

1
Out of stock

39154

WINDSHIELD

39154-0358

1
Out of stock

55028B

COWLING,UPP,M.M.C.GRAY

55028-0624-51B

1
Out of stock

55028E

COWLING,UPP,M.F.S.BLACK

55028-0624-739

1
Out of stock

55028F

COWLING,FR

55028-0625

1
Out of stock

55028G

COWLING,UPP,INNER

55028-0630

1
Out of stock

92009

SCREW,TAPPING,4X8

92009-1155

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92039

RIVET

92039-0707

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-0932

1
Out of stock

92161

DAMPER,12X23

92161-1367

1
Out of stock

92161A

DAMPER,6X19X5.6

92161-1911

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock

92172A

SCREW,5X10

92172-0864

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,5.2X15X1.0

92200-0456

1
Out of stock

92200B

WASHER,11.4X18X1

92200-1890

1
Out of stock

92210

NUT,5MM

92210-0817

1
Out of stock
