2010 Kawasaki Versys® Front Master Cylinder Diagram

← All diagrams

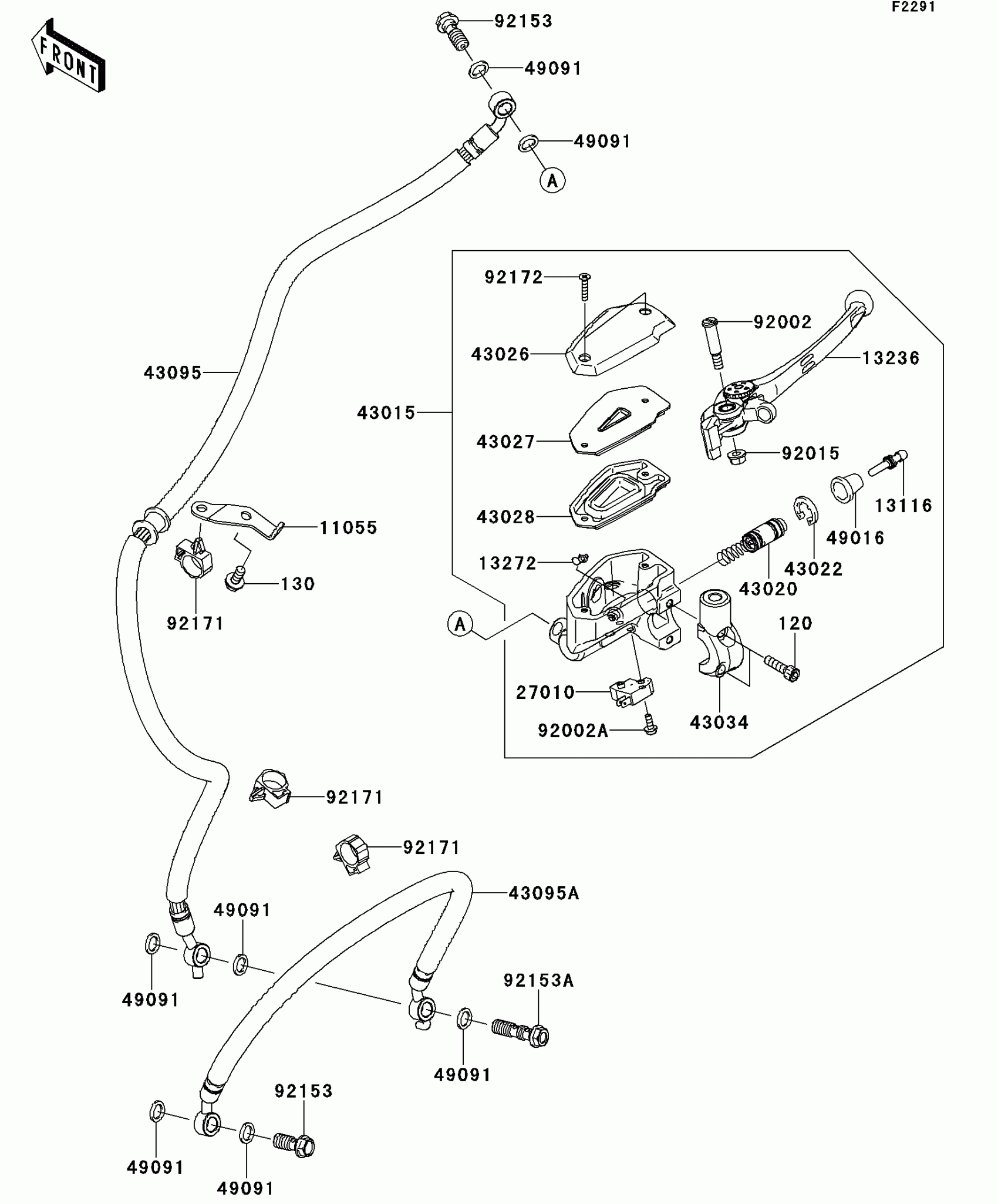

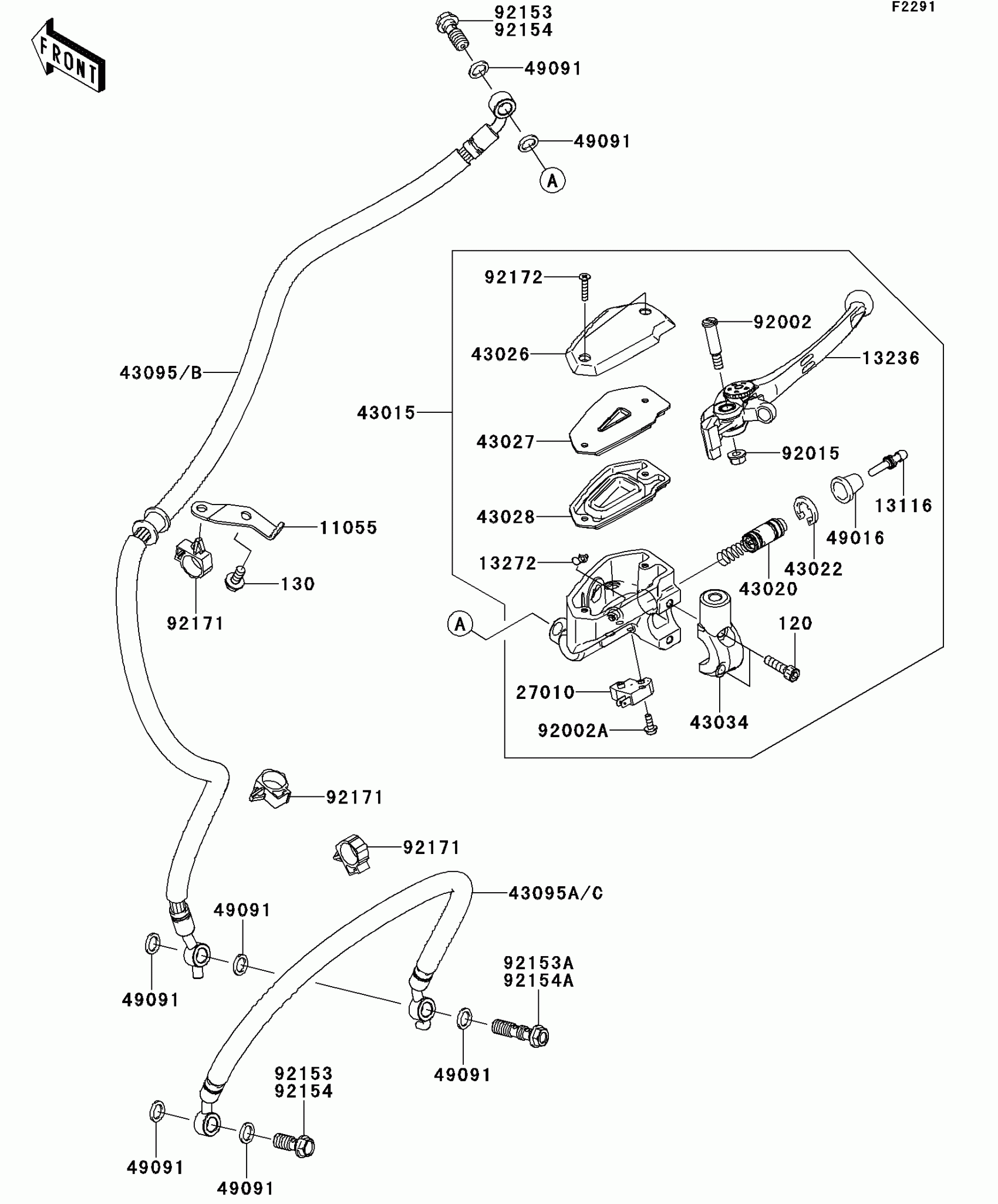

Find the part on the Front Master Cylinder diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,BRAKE HOSE

11055-1875

1

$5.69

In stock

13116

ROD-PUSH

13116-0032

1

$21.73

In stock

13236

1

$76.01

In stock

13272

PLATE

13272-0573

1

$7.47

In stock

27010

SWITCH,BRAKE

27010-0025

1

$33.39

In stock

43015

1

$417.98

In stock

43020

PISTON-COMP-BRAKE

43020-0015

1

$67.19

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-0019

1

$47.10

In stock

43027

PLATE-DIAPHRAGM

43027-0008

1

$8.47

In stock

43028

DIAPHRAGM

43028-0015

1

$37.15

In stock

43034

1

$45.93

In stock

43095

HOSE-BRAKE,FR

43095-0526

1

$95.38

In stock

43095A

HOSE-BRAKE,FR

43095-0527

1

$69.16

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,OIL,L=37

92153-0628

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92172

SCREW,4X20

92172-0320

1

$3.11

In stock

120

BOLT-SOCKET,6X22

120CB0622

1

$4.68

In stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock
