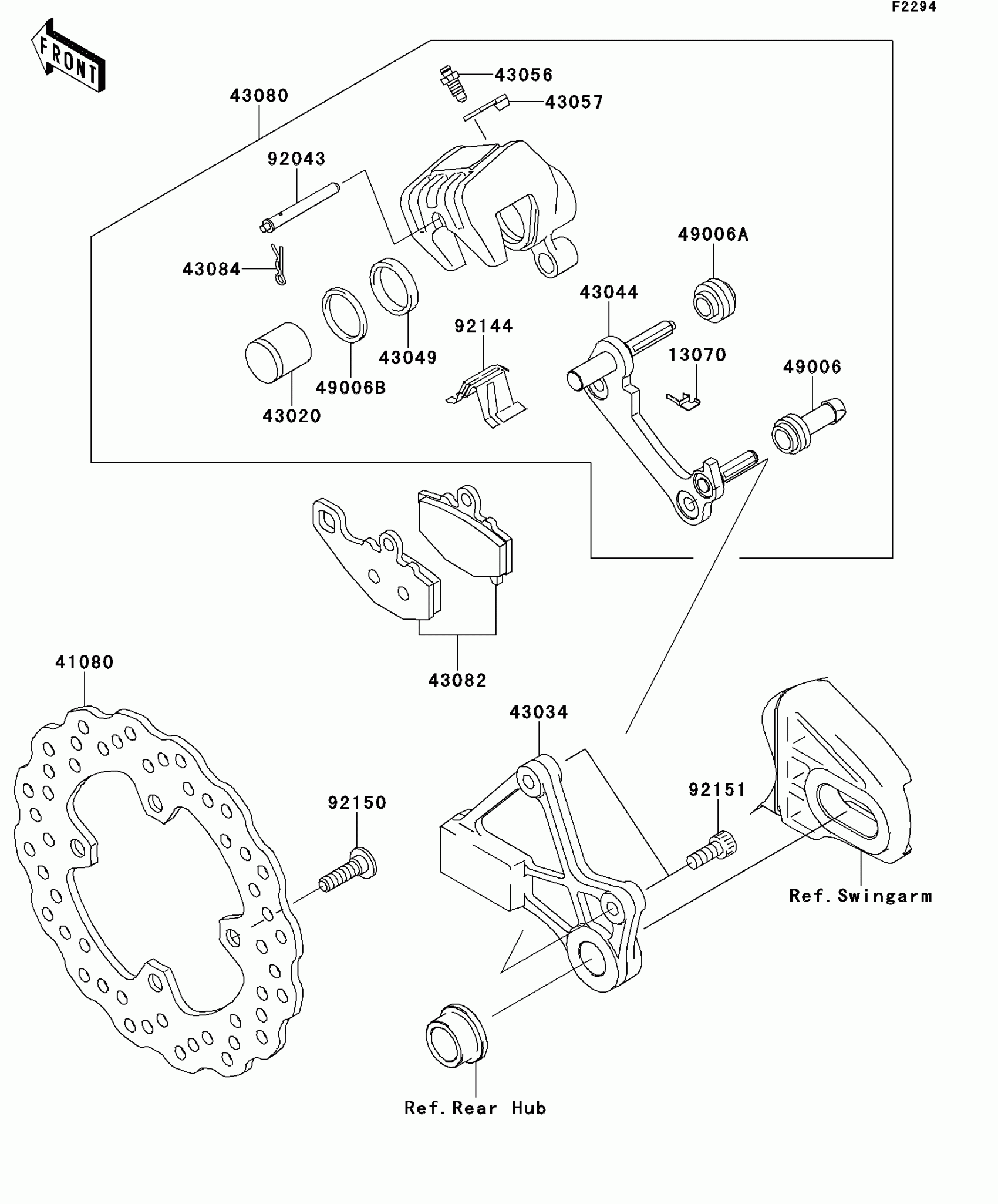

Find the part on the Rear Brake diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE PAD

13070-0045

1

$10.25

In stock

41080

DISC,RR

41080-0040

1

$305.85

In stock

43020

PISTON-COMP-BRAKE

43020-1119

1

$66.46

In stock

43034

1

$112.42

In stock

43044

1

$147.38

In stock

43049

PACKING,PISTON SEAL

43049-1097

1

$8.76

In stock

43056

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$382.60

In stock

43082

PAD-ASSY-BRAKE

43082-1213

1

$63.15

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

49006B

BOOT,PISTON SEAL

49006-1212

1

$21.56

In stock

92043

PIN,PAD

92043-1489

1

$5.21

In stock

92144

SPRING,PAD

92144-1719

1

$37.56

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92151

BOLT,SOCKET,8X20

92151-1289

1

$1.88

In stock
