2024 Kawasaki Versys 650 Swingarm Diagram

← All diagrams

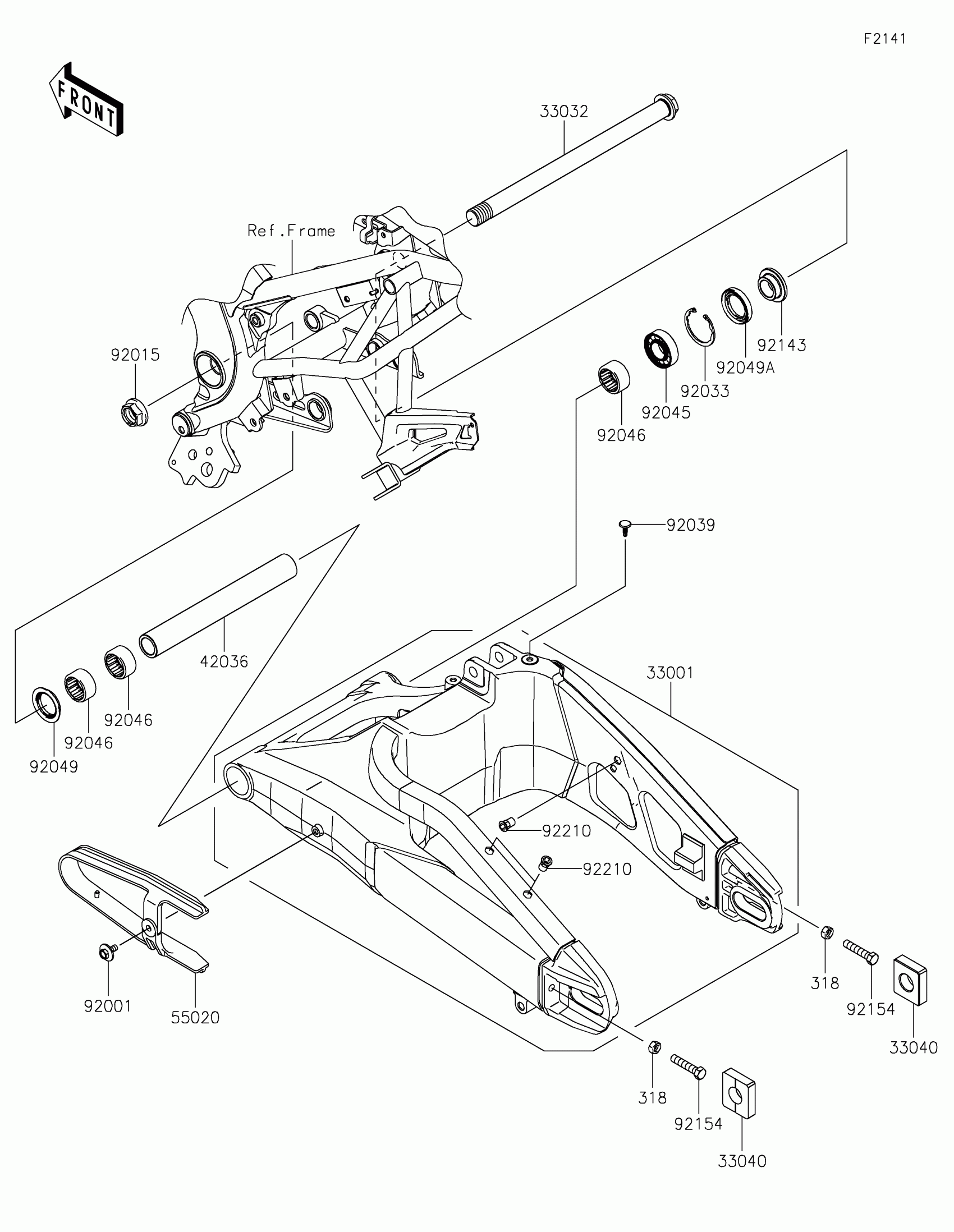

Find the part on the Swingarm diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,F.S.BLACK

33001-0719-18R

1

$751.88

In stock

33032

1

$102.29

In stock

33040

ADJUSTER-CHAIN

33040-1109

1

$18.36

In stock

42036

1

$72.90

In stock

55020

GUARD,CHAIN

55020-0234

1

$37.75

In stock

92001

BOLT,6X16

92001-1950

1

$3.43

In stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92039

RIVET

92039-3787

1

$3.11

In stock

92045

1

$13.66

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL

92049-0132

1
Out of stock

92049A

SEAL-OIL

92049-0138

1
Out of stock

92143

1

$18.34

In stock

92154

BOLT,8X40

92154-0288

1

$3.90

In stock

92210

NUT,POP,6MM,L=15

92210-1397

1
Out of stock

318

NUT-HEX-SMALL,8MM

318BA0800

1

$1.20

In stock
