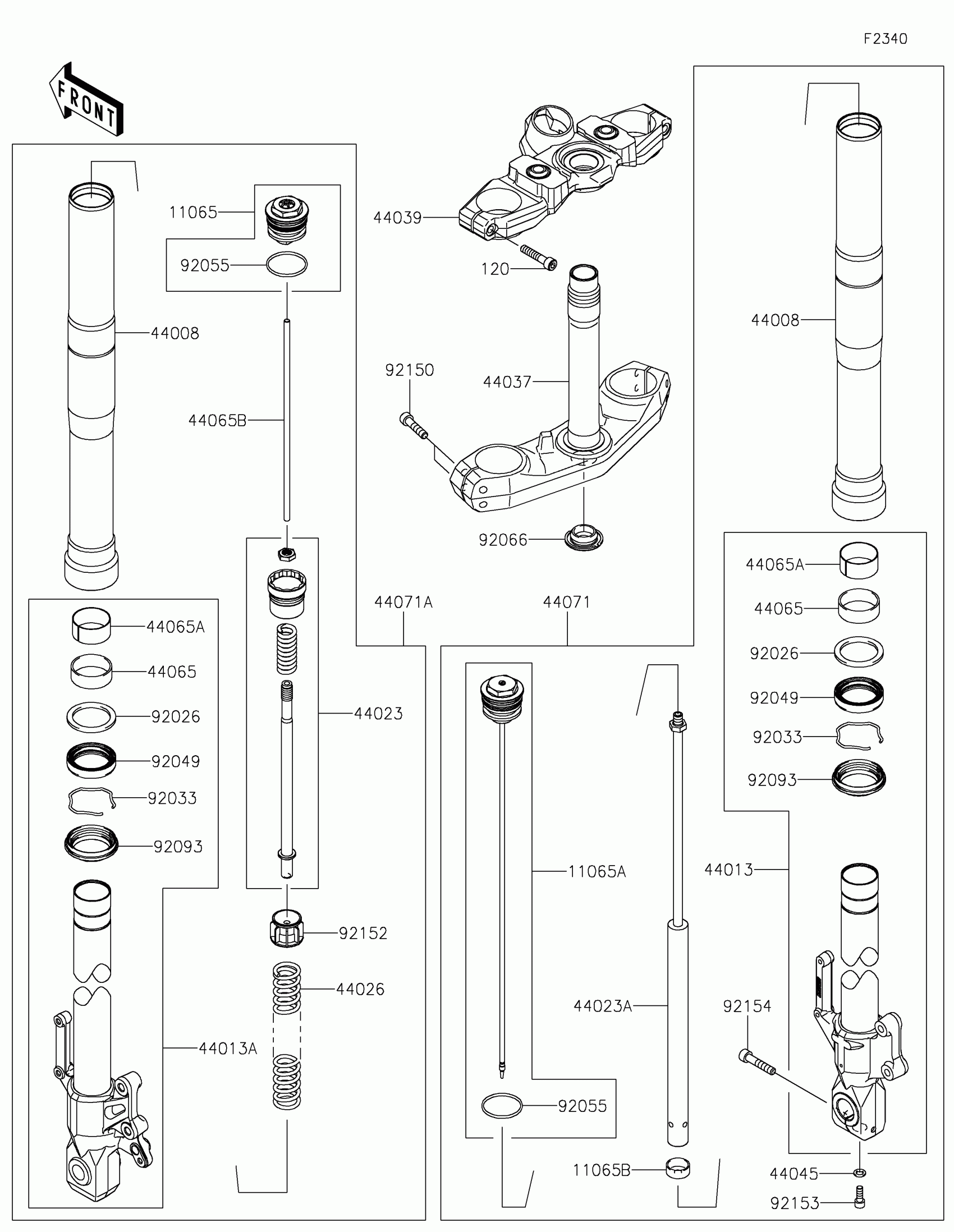

Kawasaki Versys 650 Front Fork Diagram

#

Description
Price

11065

CAP,FORK,LH,GRAY

11065-1369-11G

$135.10

11065A

CAP,FORK,RH,GRAY

11065-1370-11G

$135.10

11065B

CAP

11065-1371

$35.55

44008

PIPE-FORK OUTER,A.BLACK

44008-0072-499

$334.79

44013

PIPE-FORK INNER,RH

44013-0358

$435.72

44013A

PIPE-FORK INNER,LH

44013-0398

Unavailable

44023

CYLINDER-SET-FORK

44023-0122

$135.37

44023A

CYLINDER-SET-FORK

44023-0172

$135.36

44026

SPRING-FRONT FORK

44026-0187

$61.97

44037

HOLDER-FORK UNDER

44037-0149

$435.62

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0159-18R

$216.53

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,GUIDE

44065-0030

$16.65

44065A

BUSHING-FRONT FORK

44065-0036

$16.85

44065B

BUSHING-FRONT FORK

44065-0063

$30.43

44071

DAMPER-ASSY,FORK,RH,BLACK

44071-1413-48M

$911.23

44071A

DAMPER-ASSY,FORK,LH,BLACK

44071-1570-48M

$850.76

92026

SPACER,FORK OUTER

92026-1276

$7.25

92033

RING-SNAP

92033-1222

$4.88

92049

SEAL-OIL

92049-0125

$21.38

92055

RING-O

92055-0131

$4.95

92066

PLUG

92066-0032

$11.19

92093

SEAL,DUST

92093-0035

$20.73

92150

BOLT,SOCKET

92150-1511

Unavailable

92152

COLLAR

92152-1893

$16.05

92153

BOLT,SOCKET,8X22

92153-0028

$7.81

92154

BOLT

92154-1295

$1.88

120

BOLT-SOCKET,8X40

120CA0840

$1.98
