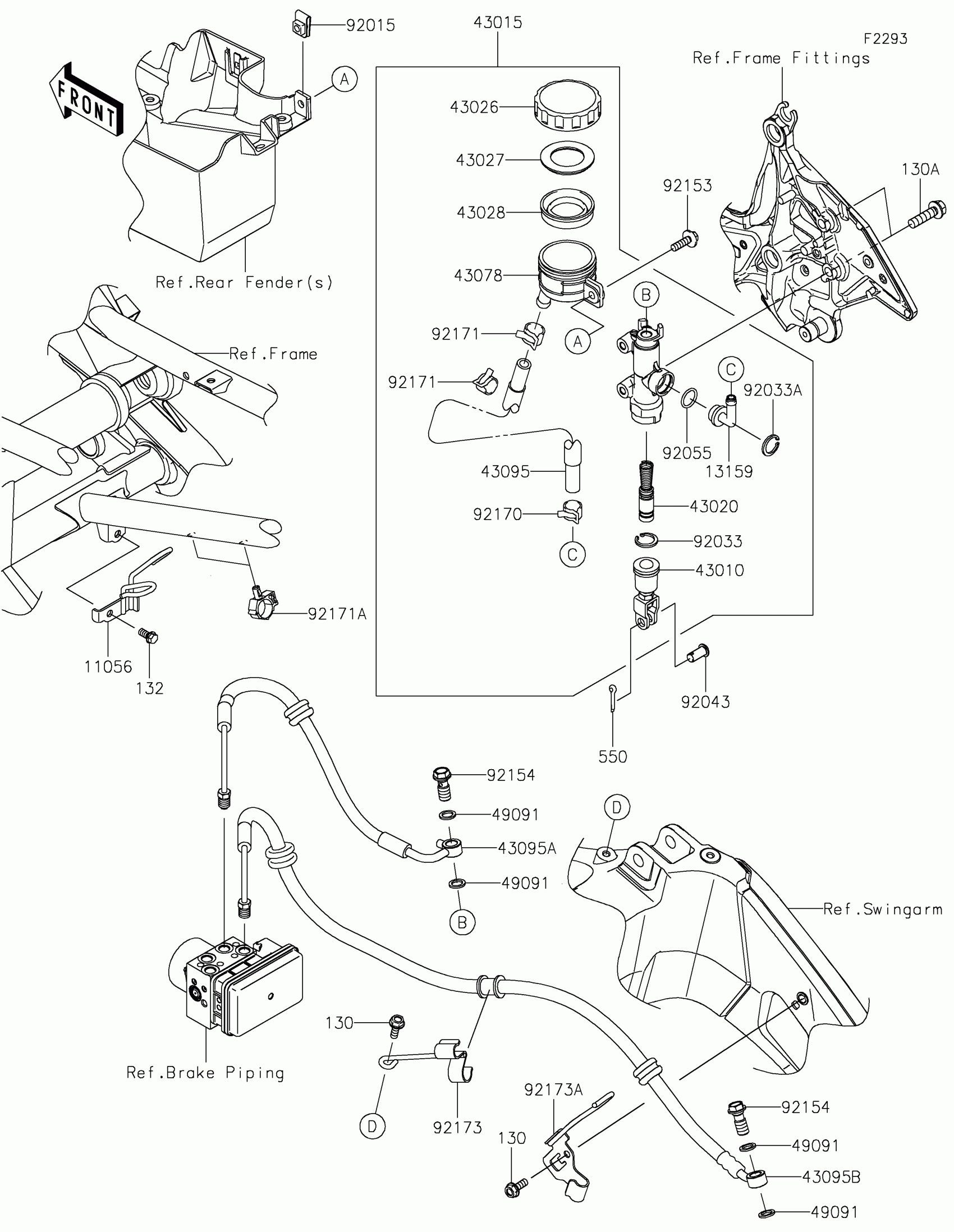

Find the part on the Rear Master Cylinder diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,FRAME COMP

11056-4072

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1062

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0602

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-1051

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

1
Out of stock

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

1
Out of stock

43095

HOSE-BRAKE,RR M/C-ABS UNIT

43095-0823

1
Out of stock

43095A

HOSE-BRAKE,500MM

43095-0842

1
Out of stock

43095B

HOSE-BRAKE,ABS UNIT-RR CAL.

43095-0938

1
Out of stock

43095C

HOSE-BRAKE,RR M/C-ABS UNIT

43095-1961

1
Out of stock

43095D

HOSE-BRAKE,ABS UNIT-RR CAL.

43095-1962

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92043

PIN

92043-0182

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92153

BOLT,6X22

92153-0725

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1
Out of stock

92170

CLAMP,HOSE

92170-1091

1
Out of stock

92171

CLAMP,HOSE

92171-0463

1
Out of stock

92171A

CLAMP

92171-0955

1
Out of stock

92173

CLAMP,SWING ARM,FR

92173-1290

1
Out of stock

92173A

CLAMP,SWING ARM

92173-1291

1
Out of stock

130

BOLT-FLANGED,6X16

130BB0616

1
Out of stock

130A

BOLT-FLANGED,8X30

130CA0830

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BB0612

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
