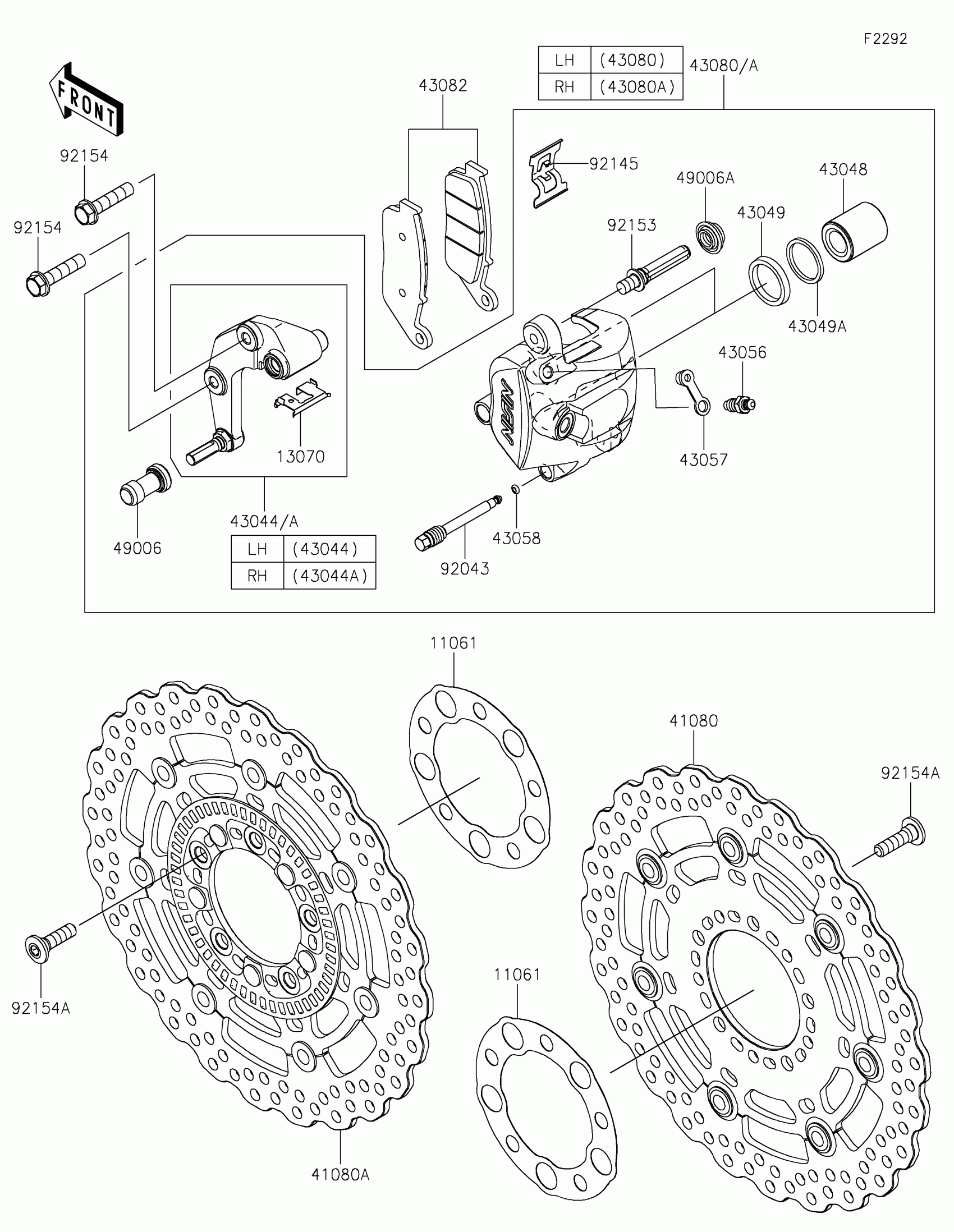

2024 Kawasaki Versys 650 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0451

1

$15.22

In stock

13070

GUIDE,BRAKE PAD

13070-0077

1

$11.32

In stock

41080

DISC,FR,BLACK+SIL

41080-0620-11I

1

$399.31

In stock

41080A

DISC,FR,ABS,BLACK+SIL

41080-0722-11I

1

$361.04

In stock

43044

1

$151.97

In stock

43044A

1

$147.38

In stock

43048

PISTON-CALIPER

43048-1068

1

$83.43

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43058

RING,STOPPER

43058-1100

1

$11.22

In stock

43080

1

$383.12

In stock

43080A

1

$383.12

In stock

43082

PAD-ASSY-BRAKE

43082-0150

1

$78.26

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92043

PIN,HANGER

92043-0820

1

$7.24

In stock

92145

SPRING,PAD

92145-0524

1

$11.32

In stock

92153

BOLT

92153-1872

1

$12.95

In stock

92154

BOLT,FLANGED,8X35

92154-1646

1

$3.72

In stock

92154A

BOLT,SOCKET,8X30

92154-1865

1

$3.72

In stock
