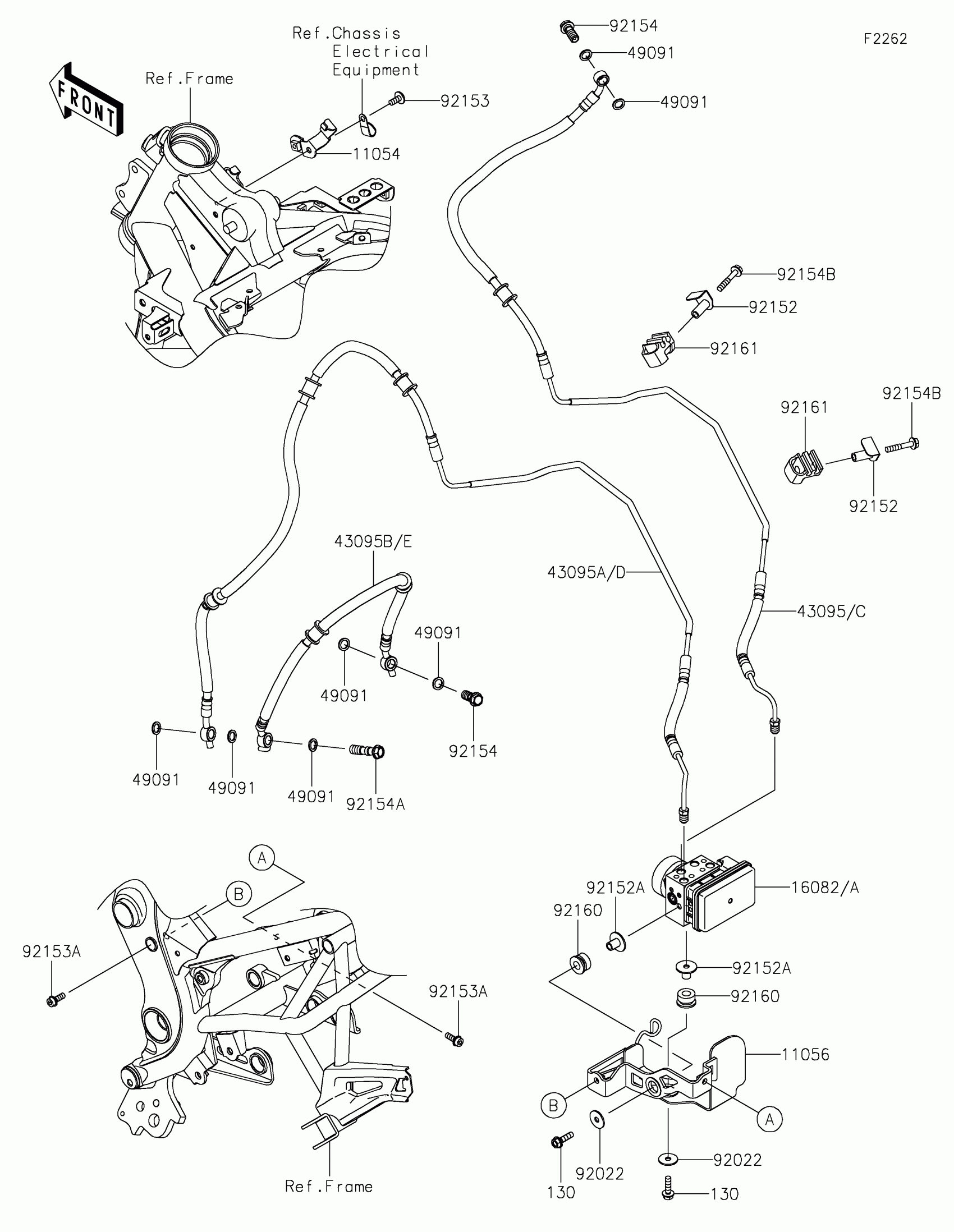

Find the part on the Brake Piping diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,BRAKE PIPE

11054-0408

1

$13.73

In stock

11056

BRACKET,ABS UNIT

11056-3977

1

$53.49

In stock

16082

1

$1,340.31

In stock

16082A

1

$1,340.31

In stock

43095

1

$308.16

In stock

43095A

1

$333.55

In stock

43095B

HOSE-BRAKE,525MM

43095-0822

1

$156.22

In stock

43095C

1

$246.16

In stock

43095D

1

$273.73

In stock

43095E

HOSE-BRAKE,525MM

43095-1960

1

$98.42

In stock

49091

1

$1.81

In stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92152

COLLAR

92152-0409

1

$17.44

In stock

92152A

COLLAR,6.5X10X14.6

92152-0965

1

$2.61

In stock

92153

BOLT,SOCKET,6X14

92153-1446

1
Out of stock

92153A

BOLT,SOCKET,6X16

92153-1517

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1

$4.01

In stock

92154A

BOLT,FLANGED,10X37

92154-0733

1

$8.92

In stock

92154B

BOLT,FLANGED,6X35

92154-4191

1

$1.03

In stock

92160

DAMPER

92160-1141

1

$3.38

In stock

92161

DAMPER,BRAKE PIPE

92161-0347

1

$4.75

In stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock
