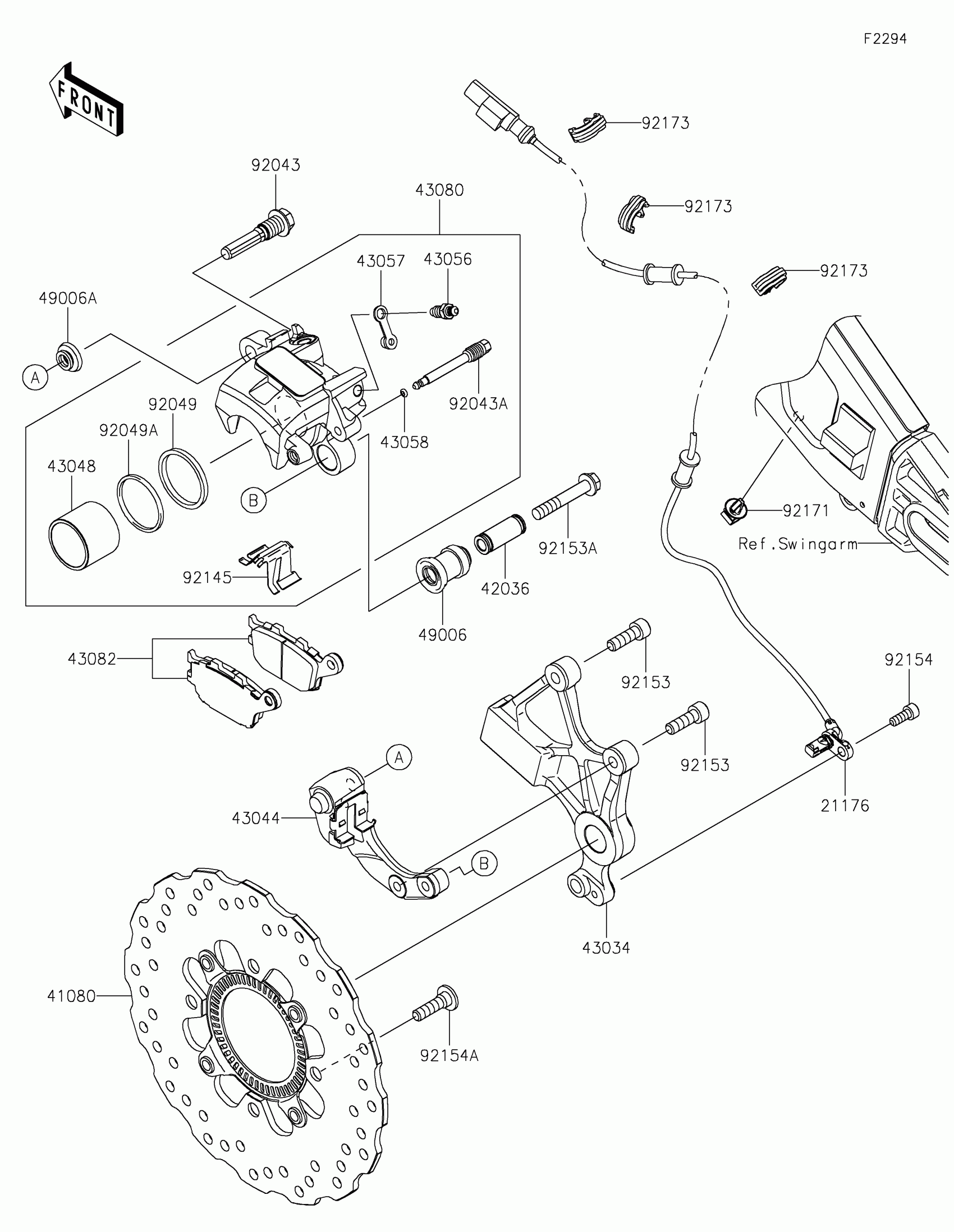

Kawasaki Versys 650 Rear Brake Diagram

#

Description
Price

21176

SENSOR,RR

21176-0943

$142.66

41080

DISC,RR,ABS

41080-0660

$358.18

42036

SLEEVE

42036-0050

$7.61

43034

HOLDER-BRAKE

43034-0157

$124.79

43044

HOLDER-COMP-CALIPER

43044-0080

$155.66

43048

PISTON-CALIPER

43048-0008

$31.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43058

RING,STOPPER

43058-1100

$11.22

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0156-DJ

$318.75

43082

PAD-ASSY-BRAKE

43082-0155

$61.17

49006

BOOT

49006-0058

$12.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN

92043-0137

$10.34

92043A

PIN,HANGER

92043-0820

$7.24

92049

SEAL-OIL

92049-1449

$3.81

92049A

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0493

$5.87

92153

BOLT,SOCKET,8X25

92153-1625

$3.54

92153A

BOLT,FLANGED

92153-1826

$7.84

92154

BOLT,SOCKET,6X16

92154-0235

$2.08

92154A

BOLT,SOCKET,8X30

92154-1865

$3.57

92171

CLAMP

92171-0640

$3.51

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.27
