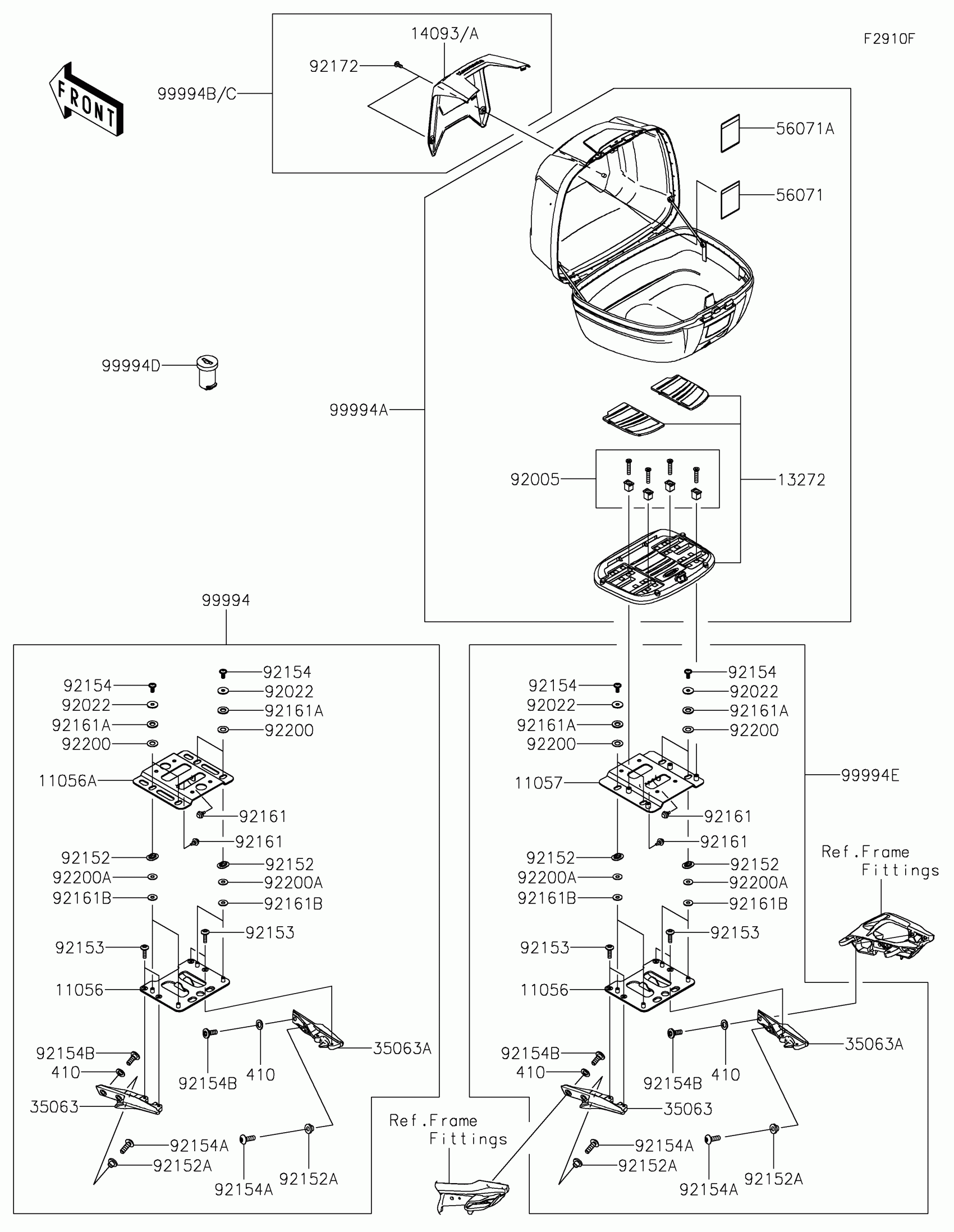

Kawasaki Versys 650 Accessory(Top case) Diagram

#

Description
Price

11056

BRACKET,TOPCASE,LWR

11056-7239

$195.78

11056A

BRACKET,TOPCASE,UPP

11056-7240

$93.58

11057

BRACKET,TOPCASE,UPP

11057-7450

$90.88

13272

PLATE,TOPCASE BASE

13272-3743

$52.17

14093A

COVER,TOPCASE,M.S.BLACK

14093-1067-660

$79.22

14093B

COVER,TOPCASE,EBONY

14093-1067-H8

$79.22

35063

STAY,CARRIER,LH,F.S.BLACK

35063-0971-18R

$88.99

35063A

STAY,CARRIER,RH,F.S.BLACK

35063-0972-18R

$77.52

56071

LABEL-WARNING,MAX LOAD

56071-0940

$44.95

56071A

LABEL-WARNING,PICTOGRAM

56071-1043

$44.95

92005

FITTING

92005-1428

$99.83

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92152

COLLAR,20.5X36X4.7

92152-1983

$2.25

92152A

COLLAR,8X10X10

92152-2134

$7.46

92153

BOLT,SOCKET,6X22

92153-1792

$2.98

92154

BOLT,SOCKET,6X14

92154-0856

$1.43

92154A

BOLT,TORX,8X26

92154-1897

$5.07

92154B

BOLT,SOCKET,8X23

92154-1901

$2.75

92161

DAMPER,STEP

92161-0766

$4.66

92161A

DAMPER,10.3X20X2

92161-1750

$1.32

92161B

DAMPER,10.3X26X2

92161-1751

$1.47

92172

SCREW,SOCKET,5X14

92172-0823

$0.73

92200

WASHER,10.3X20X1

92200-0414

$4.95

92200A

WASHER,10.3X26X1.5

92200-1697

$1.32

99994

KIT-ACCESSORY,TOPCASE BKT

99994-0842

$260.56

99994A

TOPCASE

99994-1493

$288.42

99994C

PANEL-TOPCASE,M.S.BLACK

99994-1494-660

$76.70

99994D

PANEL-TOPCASE,EBONY

99994-1494-H8

$76.70

99994E

ROTOR(INNER GROOVE)

99994-1496

$27.51

99994F

FITTING KIT,F.S.BLACK

99994-1683-18R

$251.19

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.44
