2024 Kawasaki Versys 650 Accessory Diagram

← All diagrams

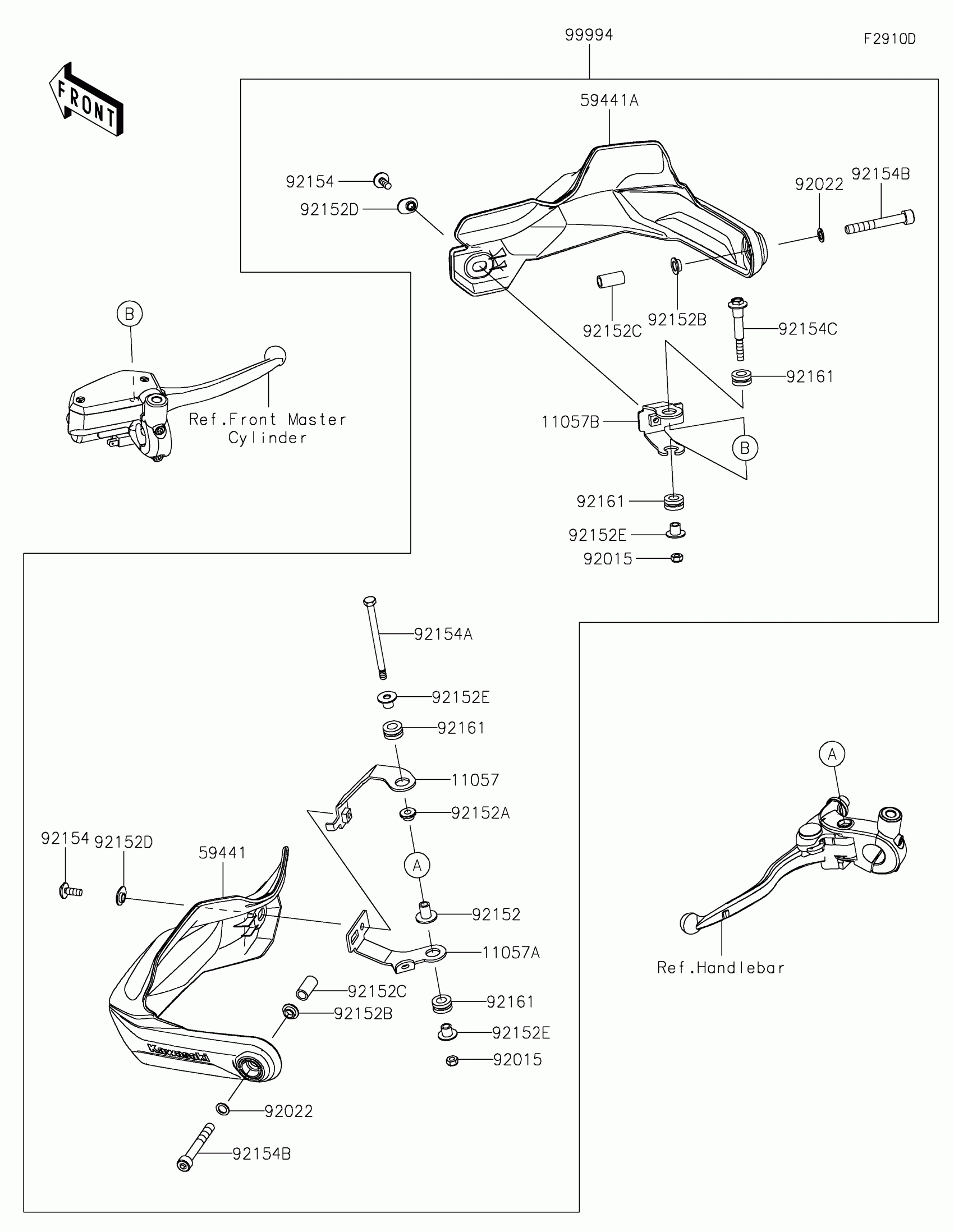

Find the part on the Accessory diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LH,UPP

11057-7518

1

$5.07

In stock

11057A

BRACKET,LH,LWR

11057-7519

1

$4.31

In stock

11057B

BRACKET,RH

11057-7520

1

$4.46

In stock

59441

COVER-HANDLE,LH

59441-0305

1

$53.87

In stock

59441A

COVER-HANDLE,RH

59441-0306

1

$53.87

In stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1

$3.12

In stock

92152

COLLAR,6.3X9.5X13.5

92152-1942

1
Out of stock

92152A

COLLAR

92152-2069

1
Out of stock

92152B

COLLAR

92152-2512

1

$10.36

In stock

92152C

1

$10.56

In stock

92152D

COLLAR

92152-2833

1

$1.03

In stock

92152E

COLLAR

92152-2838

1

$1.76

In stock

92154

BOLT,SOCKET,6X16

92154-4370

1

$1.56

In stock

92154A

BOLT,CLUTCH LEVER

92154-4381

1

$32.62

In stock

92154B

BOLT,SOCKET,8X60

92154-4409

1

$4.58

In stock

92154C

1

$13.07

In stock

92161

DAMPER

92161-1462

1

$1.10

In stock

99994

HAND COVER

99994-1676

1

$208.15

In stock
