2024 Kawasaki Versys 650 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

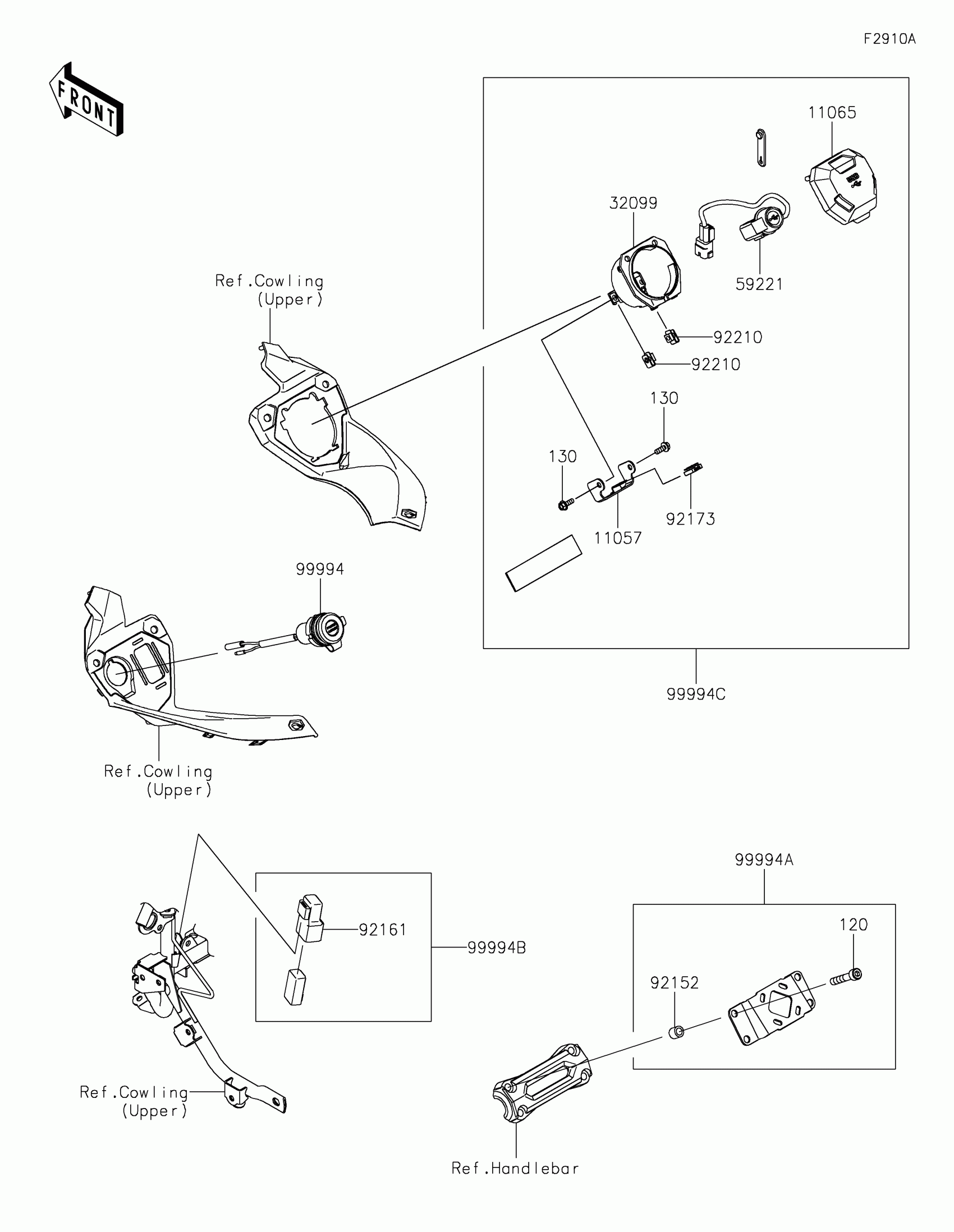

2024 Kawasaki Versys 650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-4390

1

$3.12

In stock

11065

CAP,USB

11065-1425

1

$17.20

In stock

32099

CASE,USB

32099-0822

1

$12.59

In stock

59221

CONNECTOR-CORD,USB

59221-0021

1

$130.51

In stock

92152

COLLAR

92152-2330

1
Out of stock

92161

DAMPER

92161-2290

1

$5.27

In stock

92173

CLAMP

92173-2464

1

$3.49

In stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock

99994

1

$114.51

In stock

99994A

1

$114.42

In stock

99994B

RELAY

99994-1677

1

$25.05

In stock

99994C

USB OUTLET

99994-1923

1

$156.39

In stock

120

BOLT-SOCKET

120CC0845

1

$3.27

In stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock
