2024 Kawasaki Versys 650 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

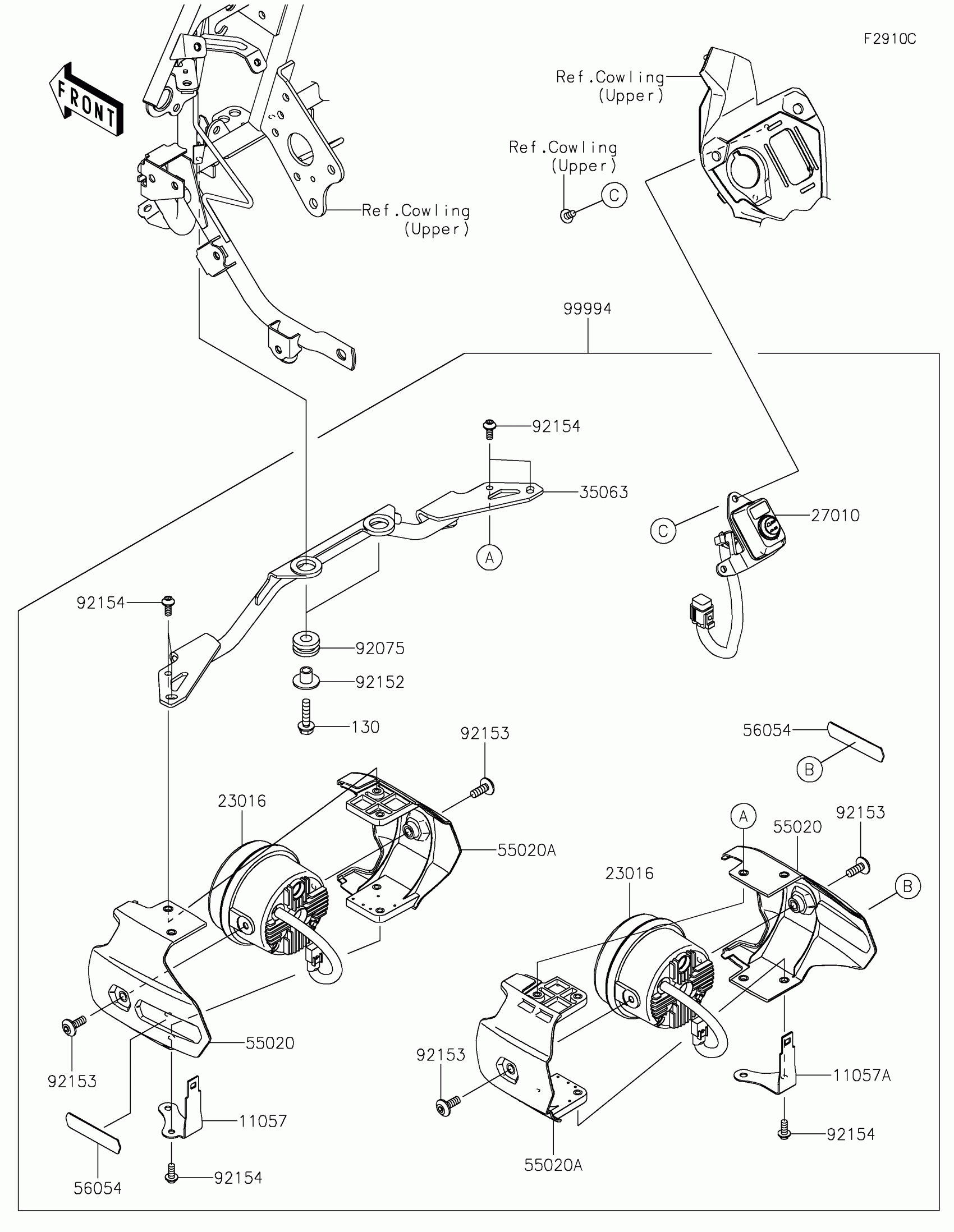

2024 Kawasaki Versys 650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LH

11057-7532

1

$42.91

In stock

11057A

BRACKET,RH

11057-7533

1

$42.91

In stock

23016

1

$402.17

In stock

27010

SWITCH,FOG LAMP

27010-0968

1

$85.87

In stock

35063

STAY

35063-1582

1

$83.46

In stock

55020

GUARD,OUTER

55020-1825

1

$11.67

In stock

55020A

GUARD,INNER

55020-1826

1

$4.63

In stock

56054

1

$9.95

In stock

92075

DAMPER,CASE

92075-222

1

$5.84

In stock

92152

COLLAR,6.8X10X12.1

92152-1407

1

$8.51

In stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1

$3.74

In stock

99994

LED LAMP

99994-1687

1

$810.09

In stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
