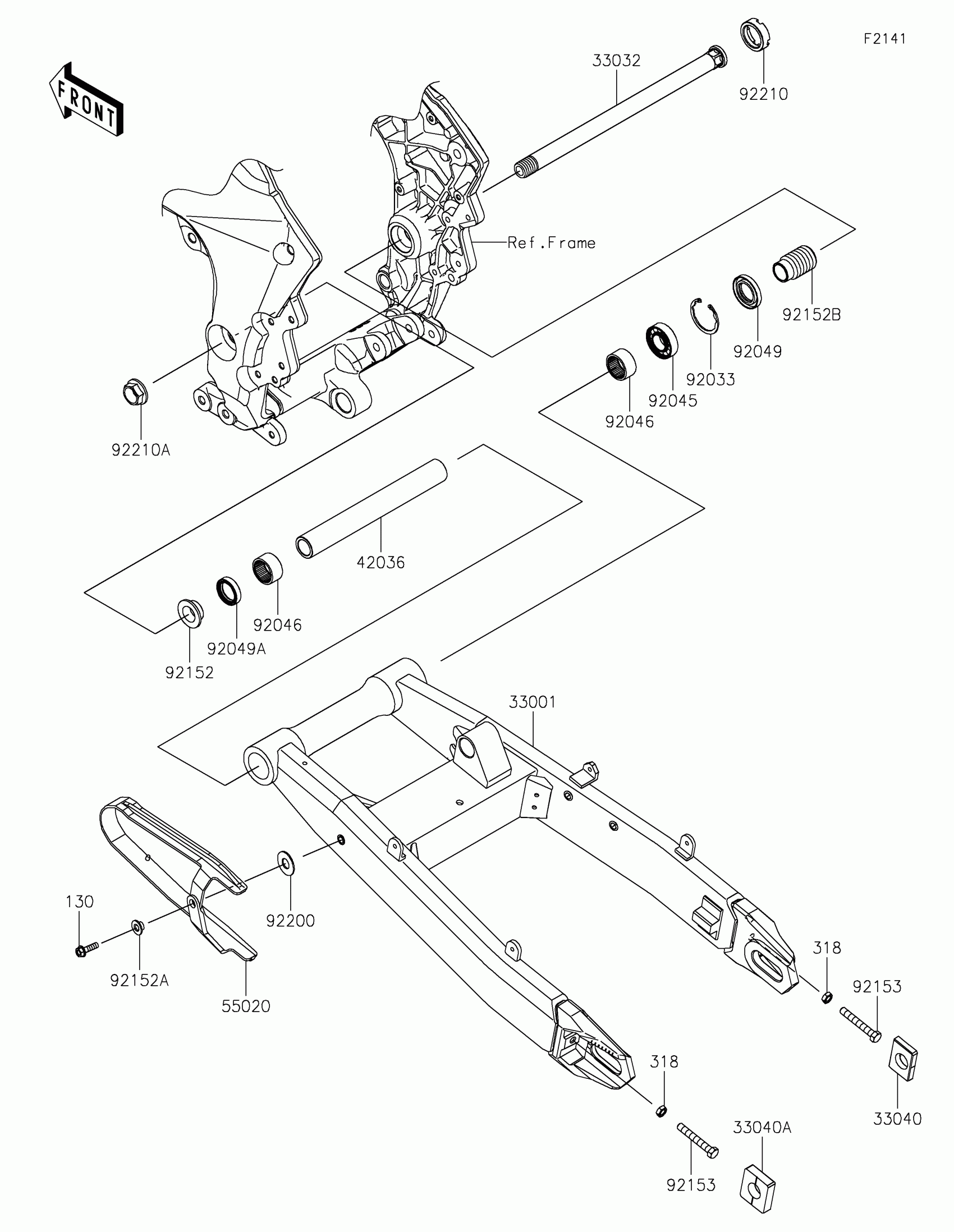

Find the part on the Swingarm diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Versys 1100 Se LT ABS Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,F.S.BLACK

33001-0739-18R

1
Out of stock

33032

SHAFT-SWING ARM

33032-0044

1
Out of stock

33040

ADJUSTER-CHAIN,RH

33040-0040

1
Out of stock

33040A

ADJUSTER-CHAIN,LH

33040-0110

1
Out of stock

42036

SLEEVE,20.1X28X226

42036-0069

1
Out of stock

55020

GUARD,CHAIN

55020-2184

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92045

BEARING-BALL,6004UL11

92045-0017

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

1
Out of stock

92049

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

1
Out of stock

92152

COLLAR,SWING ARM,L=12.5

92152-1234

1
Out of stock

92152A

COLLAR

92152-1931

1
Out of stock

92152B

COLLAR,SWING ARM,L=47

92152-2980

1
Out of stock

92153

BOLT,8X55

92153-1407

1
Out of stock

92200

WASHER,13X30X1.6

92200-2229

1
Out of stock

92210

NUT,30MM

92210-0134

1
Out of stock

92210A

NUT,FLANGED,20MM

92210-0320

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

318

NUT-HEX-SMALL,8MM

318AA0800

1
Out of stock
