2025 Kawasaki Versys 1100 Se LT ABS Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

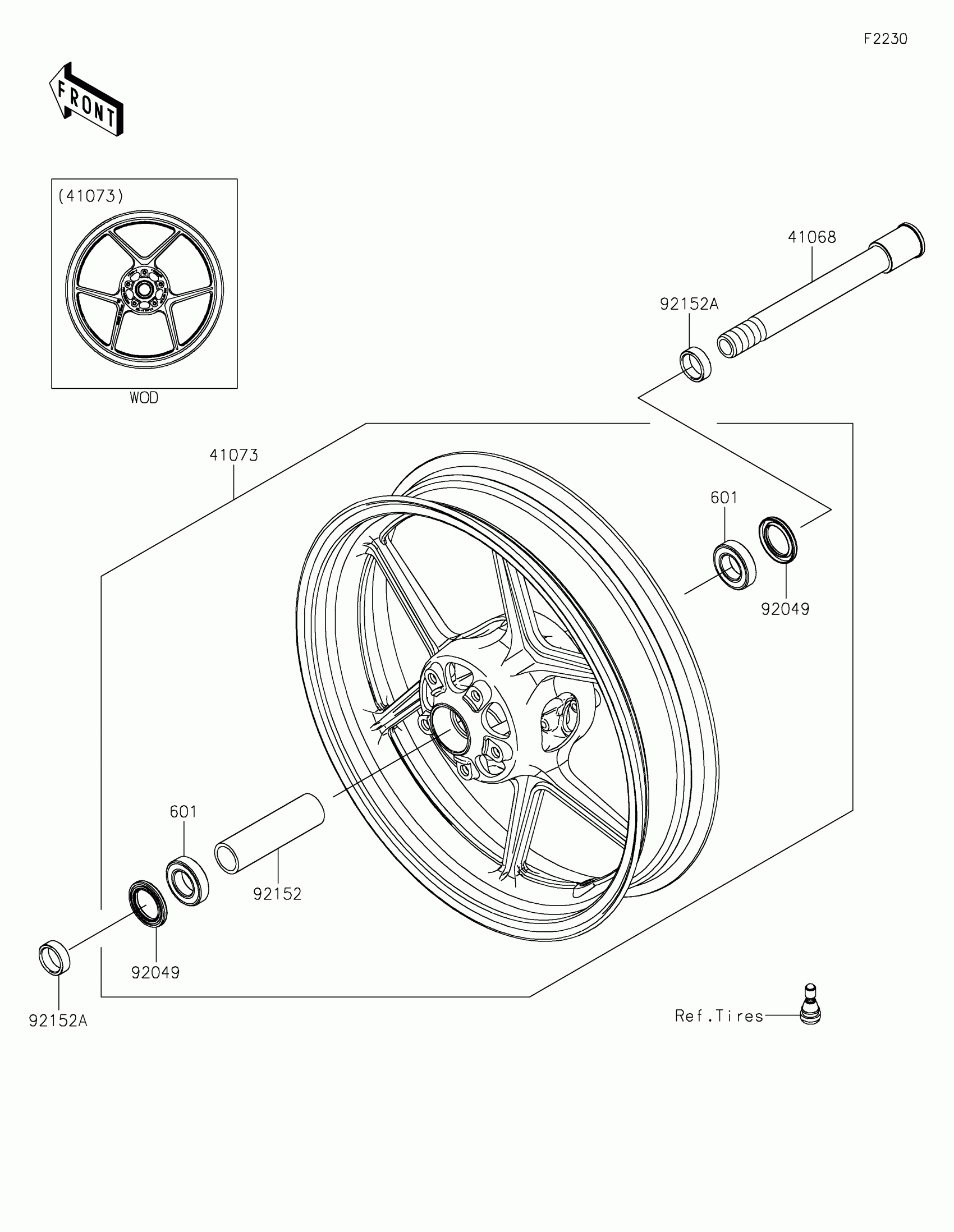

2025 Kawasaki Versys 1100 Se LT ABS Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR,25X207

41068-0599

1
Out of stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0779-18F

1
Out of stock

92049

SEAL-OIL,32X47X5

92049-0795

1
Out of stock

92152

COLLAR,FR HUB,L=115

92152-0242

1
Out of stock

92152A

COLLAR,FR AXLE,L=10.5

92152-0474

1
Out of stock

601

BEARING-BALL,#6005UU

601B6005UU

1
Out of stock
