2025 Kawasaki Versys 1100 Se LT ABS Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

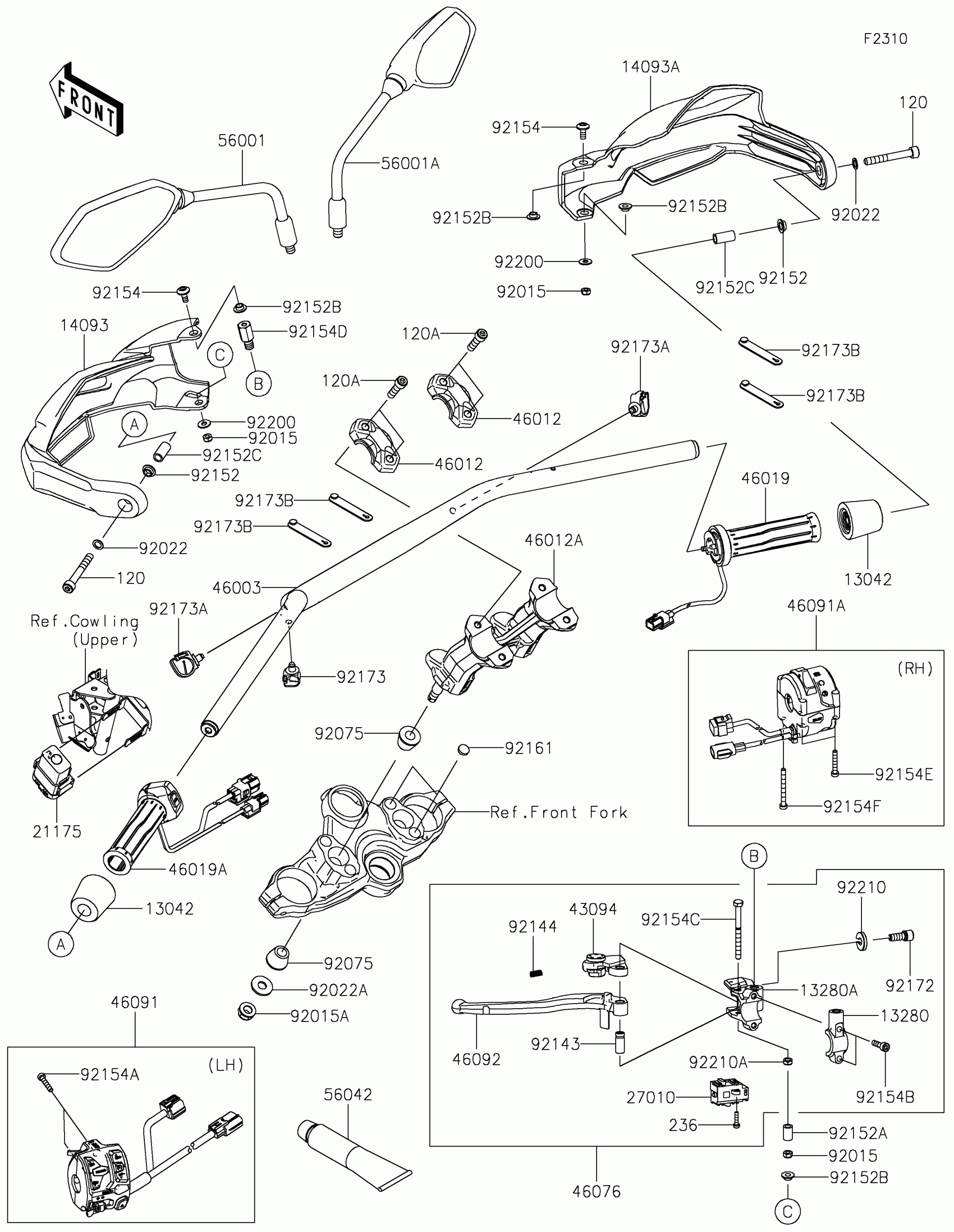

2025 Kawasaki Versys 1100 Se LT ABS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-0785

1
Out of stock

13280

HOLDER,CLUTCH LEVER

13280-0772

1
Out of stock

13280A

HOLDER

13280-0926

1
Out of stock

14093

COVER,LH

14093-0751

1
Out of stock

14093A

COVER,RH

14093-0752

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC,GH

21175-1329

1
Out of stock

27010

SWITCH,CLUTCH

27010-0916

1
Out of stock

43094

ADJUSTER

43094-0008

1
Out of stock

46003

HANDLE,F.S.BLACK

46003-0717-18R

1
Out of stock

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0353-18R

1
Out of stock

46012A

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0354-18R

1
Out of stock

46019

GRIP-ASSY,HEATER,RH

46019-0133

1
Out of stock

46019A

GRIP-ASSY,HEATER,LH

46019-0145

1
Out of stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0164

1
Out of stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0532

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,RH

46091-0668

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-0575

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0297

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0298

1
Out of stock

56042

ADHESIVE,TB1530C

56042-0001

—
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,LOCK,FLANGED,10MM

92015-1717

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92022A

WASHER,10.5X26X2.3,BLACK

92022-1396

1
Out of stock

92075

DAMPER,HANDLE HOLDER

92075-039

1
Out of stock

92143

COLLAR

92143-1379

1
Out of stock

92144

SPRING

92144-1467

1
Out of stock

92152

COLLAR

92152-2512

1
Out of stock

92152A

COLLAR,6.5X10.5X16.5

92152-2513

1
Out of stock

92152B

COLLAR

92152-2514

1
Out of stock

92152C

COLLAR,8.2X11.8X23.5

92152-2515

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154A

BOLT,SOCKET,5X25

92154-2596

1
Out of stock

92154B

BOLT,SOCKET,6X20

92154-2644

1
Out of stock

92154C

BOLT,CLUTCH LEVER PIVOT

92154-3816

1
Out of stock

92154D

BOLT

92154-3825

1
Out of stock

92154E

BOLT,5X30

92154-3921

1
Out of stock

92154F

BOLT,5X50

92154-3922

1
Out of stock

92161

DAMPER,13X3

92161-1723

1
Out of stock

92172

SCREW

92172-1138

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP

92173-0861

1
Out of stock

92173B

CLAMP

92173-1526

1
Out of stock

92200

WASHER,6.2X15X1.2

92200-1762

1
Out of stock

92210

NUT

92210-1519

1
Out of stock

92210A

NUT,LOCK,6MM

92210-1544

1
Out of stock

120

BOLT-SOCKET,8X60

120CB0860

1
Out of stock

120A

BOLT-SOCKET,8X30

120CC0830

1
Out of stock

236

SCREW-PAN-WSP-CROS

236AB0416

1
Out of stock
