2025 Kawasaki Versys 1100 Se LT ABS Front Fork Diagram

← All diagrams

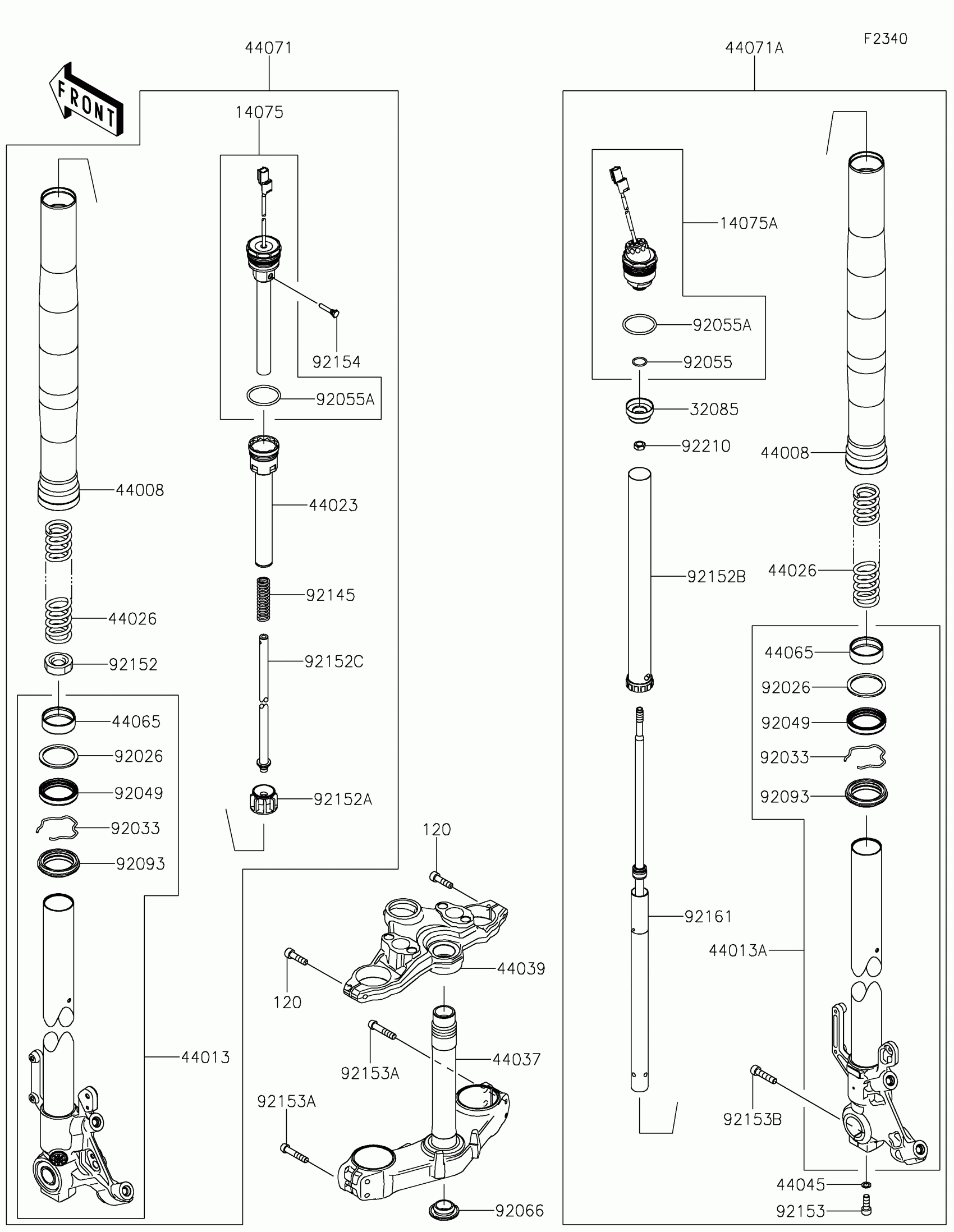

Find the part on the Front Fork diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Versys 1100 Se LT ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14075

CAP-ASSY,FORK,LH

14075-0047

1

$956.25

In stock

14075A

CAP-ASSY,FORK,RH

14075-0721

1

$1,497.15

In stock

32085

STOPPER

32085-0851

1

$46.96

In stock

44008

PIPE-FORK OUTER

44008-0088

1

$426.46

In stock

44013

PIPE-FORK INNER,LH

44013-0335

1

$684.82

In stock

44013A

PIPE-FORK INNER,RH

44013-0336

1

$684.82

In stock

44023

CYLINDER-SET-FORK

44023-0159

1

$169.25

In stock

44026

SPRING-FRONT FORK

44026-0234

1

$74.29

In stock

44037

HOLDER-FORK UNDER

44037-0183

1

$845.66

In stock

44039

1

$301.01

In stock

44045

1

$4.88

In stock

44065

BUSHING-FRONT FORK

44065-0026

1

$23.28

In stock

44071

DAMPER-ASSY,LH

44071-1336

1

$2,061.90

In stock

44071A

DAMPER-ASSY,RH

44071-1567

1

$2,890.28

In stock

92026

SPACER

92026-0165

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92049

SEAL-OIL

92049-0064

1
Out of stock

92055

RING-O

92055-0927

1

$3.14

In stock

92055A

RING-O,FORK CAP

92055-1497

1

$4.69

In stock

92066

PLUG

92066-0032

1

$11.19

In stock

92093

SEAL,DUST

92093-0042

1

$22.98

In stock

92145

1

$36.17

In stock

92152

COLLAR

92152-2564

1

$79.79

In stock

92152A

COLLAR

92152-2565

1

$29.67

In stock

92152B

COLLAR

92152-2567

1

$30.66

In stock

92152C

COLLAR

92152-2658

1

$46.96

In stock

92153

BOLT,SOCKET,8X22

92153-0028

1
Out of stock

92153A

BOLT

92153-0533

1
Out of stock

92153B

BOLT,SOCKET

92153-0537

1
Out of stock

92154

BOLT,TOP

92154-3743

1

$43.28

In stock

92161

DAMPER

92161-2190

1

$863.53

In stock

92210

NUT

92210-1764

1

$1.22

In stock

120

BOLT-SOCKET,8X30

120CC0830

1

$2.95

In stock
