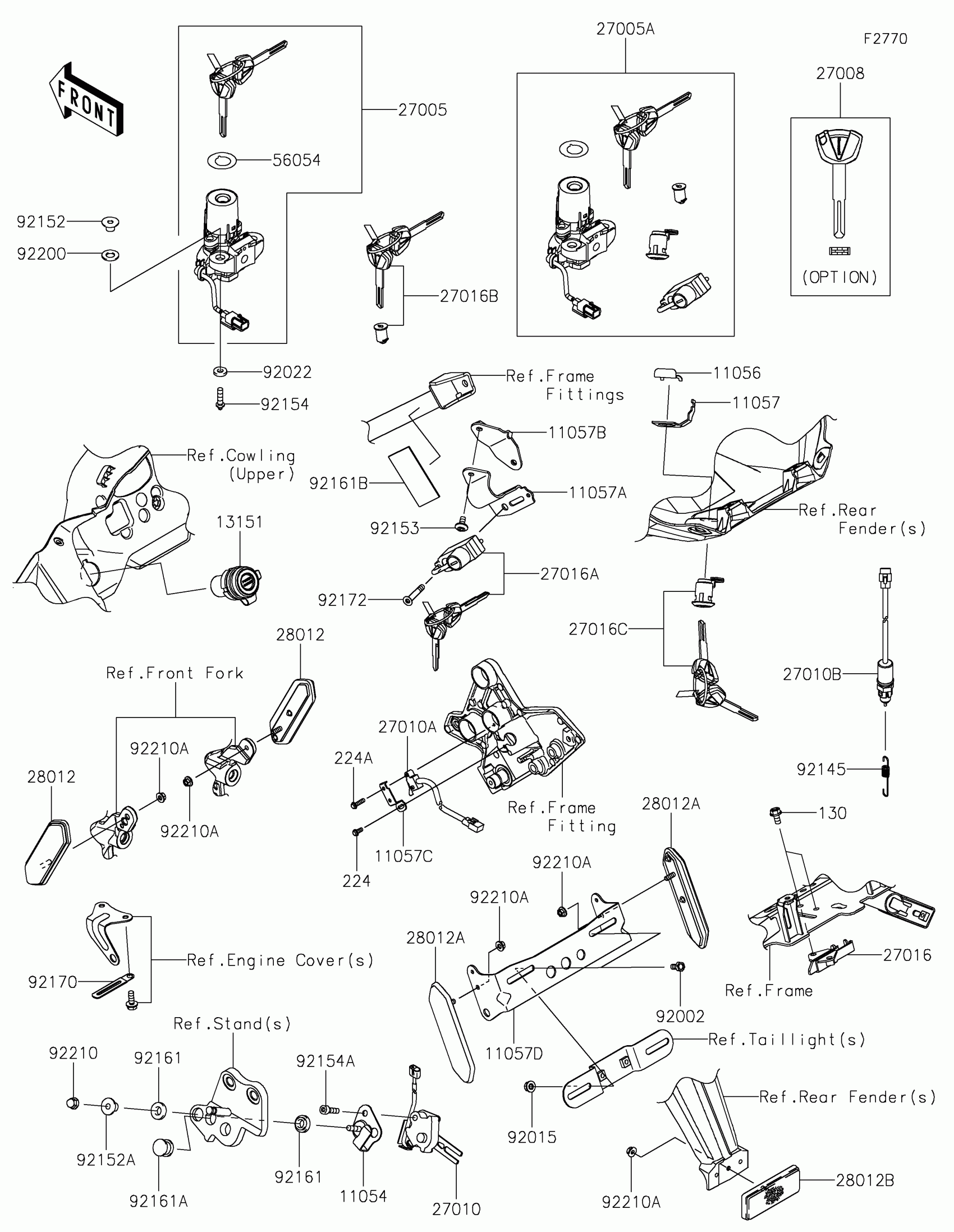

Find the part on the Ignition Switch diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Versys 1100 Se LT ABS Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

1

$10.83

In stock

11056

BRACKET,CLASP

11056-0238

1

$4.75

In stock

11057

1

$3.93

In stock

11057A

BRACKET

11057-1708

1

$9.90

In stock

11057B

BRACKET

11057-1709

1

$9.20

In stock

11057C

BRACKET,REAR BRAKE

11057-1969

1

$3.29

In stock

11057D

1

$117.71

In stock

13151

1

$145.88

In stock

27005

1

$181.84

In stock

27005A

1

$513.33

In stock

27008

KEY-LOCK,BLANK

27008-0662

1

$26.43

In stock

27010

SWITCH,SIDE STAND

27010-0811

1

$72.44

In stock

27010A

SWITCH,REAR BRAKE

27010-0865

1

$78.58

In stock

27010B

SWITCH,BRAKE

27010-0894

1

$35.68

In stock

27016

1

$29.14

In stock

27016A

LOCK-ASSY,HELMET

27016-5423

1

$112.47

In stock

27016B

LOCK-ASSY,TANK CAP

27016-5425

1

$128.97

In stock

27016C

LOCK-ASSY,SEAT

27016-5438

1

$133.27

In stock

28012

1

$15.61

In stock

28012A

1

$15.61

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

56054

1

$10.49

In stock

92002

BOLT,6X12

92002-1132

1

$1.32

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,7X15.5X3

92022-312

1
Out of stock

92145

1

$3.58

In stock

92152

COLLAR

92152-0423

1

$3.11

In stock

92152A

COLLAR

92152-1074

1

$4.93

In stock

92153

BOLT,SOCKET,6X12

92153-1948

1

$1.53

In stock

92154

BOLT,TORX,6X22

92154-1858

1

$3.14

In stock

92154A

BOLT,SOCKET,6X22

92154-1898

1

$1.78

In stock

92161

DAMPER

92161-0117

1

$2.36

In stock

92161A

DAMPER

92161-0118

1

$2.36

In stock

92161B

DAMPER,36X77X1.5

92161-2202

1

$2.20

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92172

SCREW,HEXLOBE,6X35

92172-0835

1

$2.44

In stock

92200

WASHER,10.2X20X1.6

92200-0328

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock

92210A

NUT,FLANGED,5MM

92210-0007

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

224

1

$0.47

In stock

224A

1

$0.69

In stock
