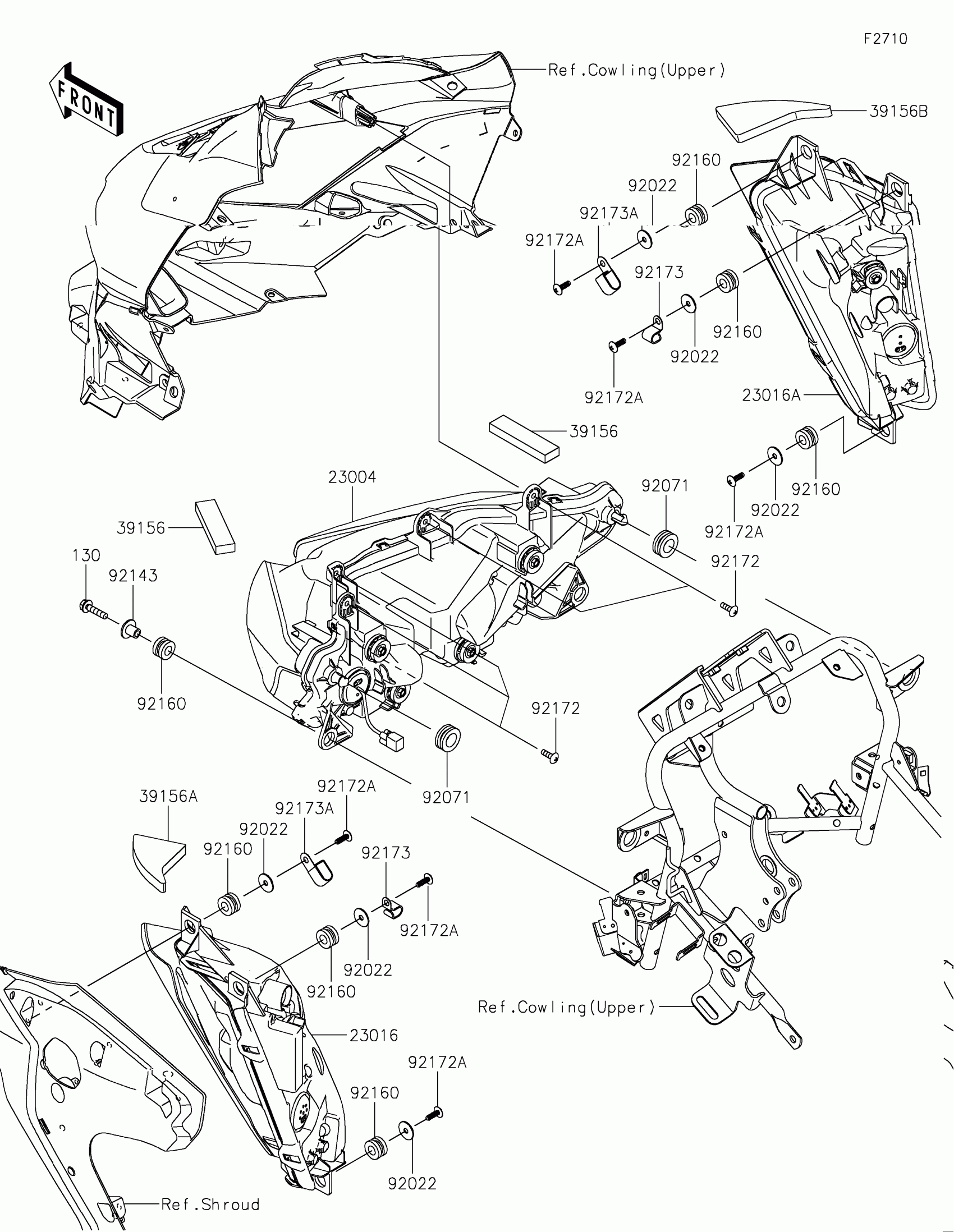

Find the part on the Headlight diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Versys 1100 Se LT ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0420

1
Out of stock

23016

LAMP-ASSY,CORNERING,LH

23016-0624

1
Out of stock

23016A

LAMP-ASSY,CORNERING,RH

23016-0627

1
Out of stock

39156

PAD,80X20X10

39156-2443

1
Out of stock

39156A

PAD

39156-2446

1
Out of stock

39156B

PAD

39156-2447

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92071

GROMMET

92071-1131

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0175

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92173

CLAMP

92173-0982

1
Out of stock

92173A

CLAMP,68MM

92173-1009

1
Out of stock

130

BOLT-FLANGED,6X25

130BB0625

1
Out of stock
