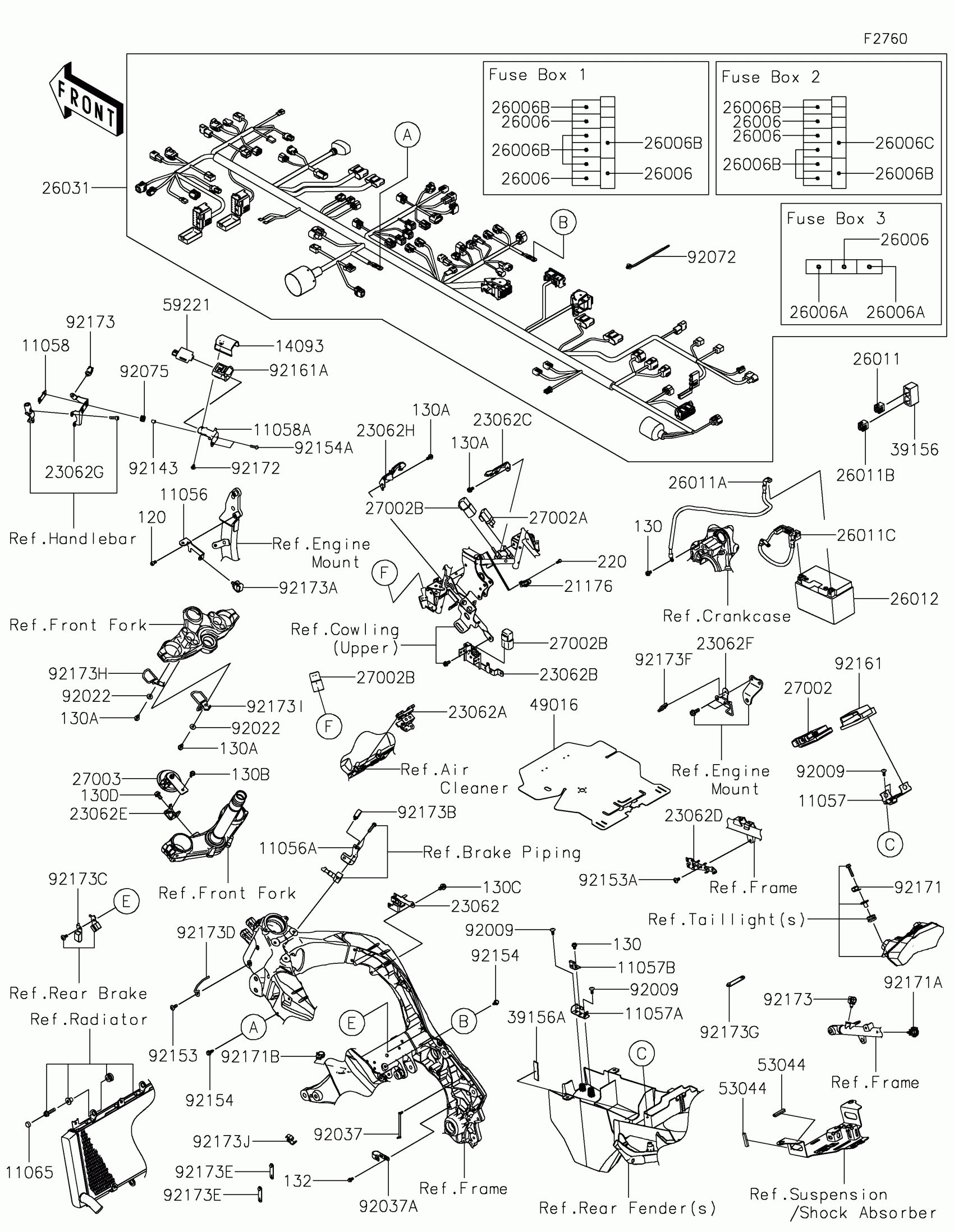

Kawasaki Versys 1100 SE LT ABS Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,ENGINE

11056-1478

$5.46

11056A

BRACKET,WHEEL SPEED SENSOR

11056-4165

$3.58

11057

BRACKET,RELAY BOX

11057-1688

$10.85

11057A

BRACKET,RR FENDER

11057-1707

$5.56

11057B

BRACKET,WATERPROOF JOINT

11057-2454

$4.08

11058

BRACKET,USB,RR

11058-1409

$5.97

11058A

BRACKET,USB,FR

11058-2312

$8.64

11065

CAP,BOLT

11065-0752

$1.93

14093

COVER,USB

14093-1458

$4.80

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

23062

BRACKET-COMP,A/C,RH

23062-1179

$19.49

23062A

BRACKET-COMP,A/C,RR

23062-1180

$12.02

23062B

BRACKET-COMP,IMMOBI AMP.

23062-1181

$16.92

23062C

BRACKET-COMP,FOG SWITCH

23062-1201

$25.56

23062D

BRACKET-COMP,KECS HARNESS

23062-1202

$23.14

23062E

BRACKET-COMP,HORN

23062-1206

$10.59

23062F

BRACKET-COMP

23062-1502

$18.27

23062G

BRACKET-COMP,CLUTCH LEVER

23062-1561

$13.68

23062H

BRACKET-COMP

23062-1641

$29.82

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$5.71

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26011A

WIRE-LEAD,BATTERY(-)

26011-1861

$51.61

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$33.04

26011C

WIRE-LEAD,BATTERY(+)

26011-2520

$52.79

26012

BATTERY,YT12A-BS,12V

26012-1529

$178.57

26031

HARNESS,MAIN

26031-4264

$1,223.33

27002

RELAY-ASSY

27002-0061

$171.42

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0068

$84.96

27002B

RELAY-ASSY

27002-1086

$32.97

27003

HORN

27003-0142

$71.20

39156

PAD,DIAG CONNECTOR

39156-2354

$5.10

39156A

PAD,15X60X2

39156-2448

$1.17

49016

COVER-SEAL

49016-0667

$37.37

53044

TRIM,L=40

53044-0662

$4.22

59221

CONNECTOR-CORD,USB TYPE-C

59221-0022

$87.41

92009

SCREW,TAPPING

92009-1113

$2.99

92022

WASHER

92022-2247

$0.57

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92037A

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.69

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92075

DAMPER

92075-1912

$5.07

92143

COLLAR,5.6X8X9.3

92143-1984

$3.15

92153

BOLT,SOCKET,6X16

92153-1526

$1.32

92153A

BOLT,SOCKET,6X12

92153-1948

$1.53

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92154A

BOLT,SOCKET,5X18

92154-2107

$1.54

92161

DAMPER,RELAY BOX

92161-0203

$10.02

92161A

DAMPER

92161-2497

$9.59

92171

CLAMP

92171-0813

$8.46

92171A

CLAMP

92171-0864

$4.14

92171B

CLAMP,EDGE CLIP

92171-1722

$7.90

92172

SCREW,5X10

92172-1194

$1.20

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0861

$2.11

92173B

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173C

CLAMP,84MM

92173-1008

$4.68

92173D

CLAMP,IRON WIRE

92173-1199

$5.24

92173E

CLAMP,RUBBER PLATE

92173-1229

$3.56

92173F

CLAMP,CABLE CLIP

92173-1242

$1.47

92173G

CLAMP

92173-1526

$3.56

92173H

CLAMP,FRONT FORK,LH

92173-1914

$23.14

92173I

CLAMP,FRONT FORK,RH

92173-1915

$23.14

92173J

CLAMP

92173-2939

$4.29

120

BOLT-SOCKET,6X12

120CA0612

$1.27

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X14

130BA0614

$0.97

130C

BOLT-FLANGED,8X12

130BA0812

$0.79

130D

BOLT-FLANGED,8X14

130BA0814

$1.54

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

220

SCREW-PAN-CROS,5X16

220AB0516

$1.27
