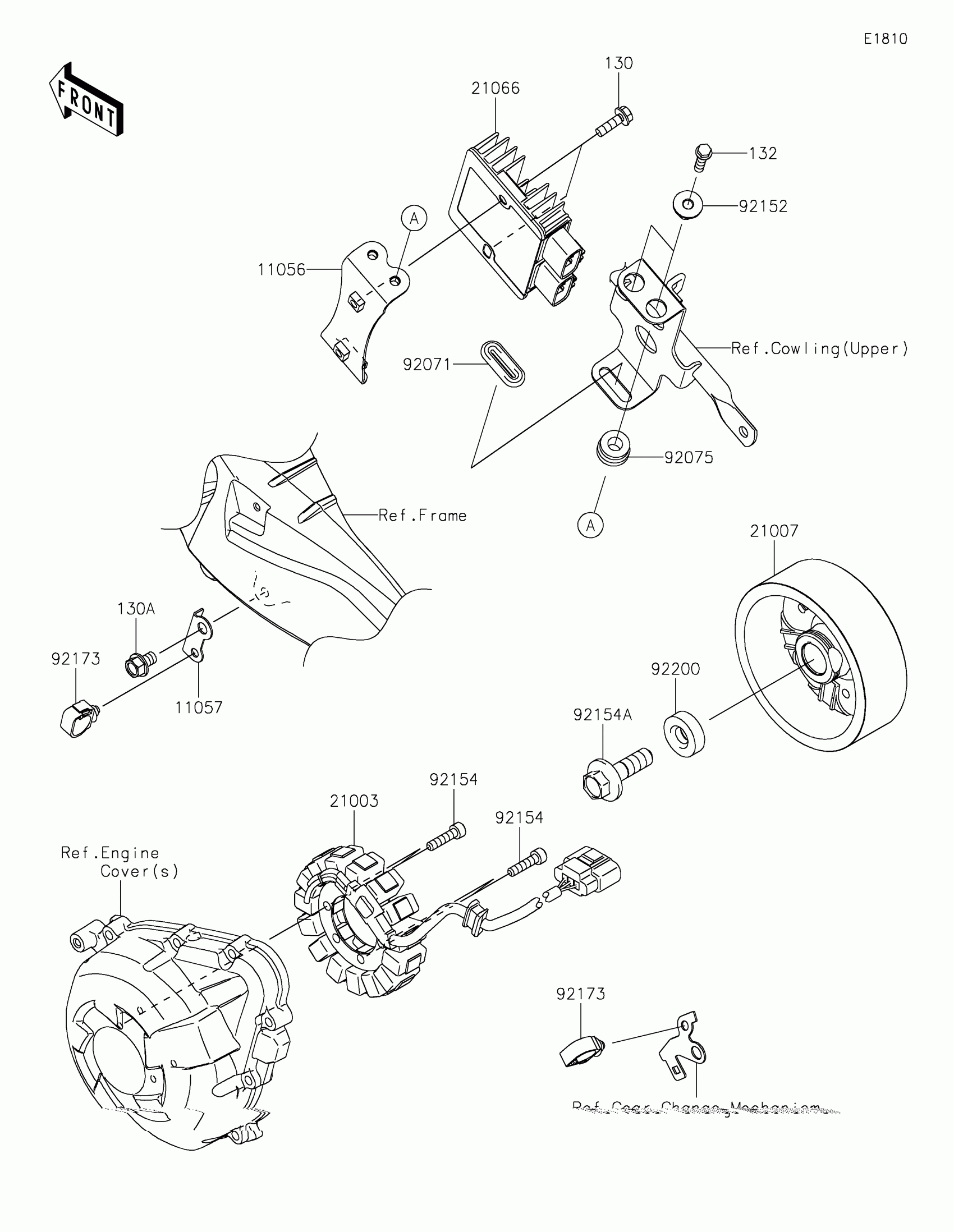

Find the part on the Generator diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Versys 1100 Se LT ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,REGULATOR

11056-4211

1

$12.22

In stock

11057

BRACKET,CLAMP

11057-2010

1

$2.76

In stock

21003

STATOR

21003-0155

1

$835.00

In stock

21007

ROTOR

21007-0609

1

$626.07

In stock

21066

REGULATOR-VOLTAGE

21066-0748

1

$346.24

In stock

92071

GROMMET

92071-1187

1

$3.94

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92152

COLLAR

92152-0666

1

$5.35

In stock

92154

BOLT,SOCKET,6X25

92154-0477

1

$1.66

In stock

92154A

BOLT,FLANGED,12X40

92154-2650

1

$12.02

In stock

92173

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

130A

BOLT-FLANGED,8X12

130BA0812

1

$0.92

In stock

132

1

$2.29

In stock
