2018 Kawasaki Versys® 1000 LT Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2018 Kawasaki Versys® 1000 LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

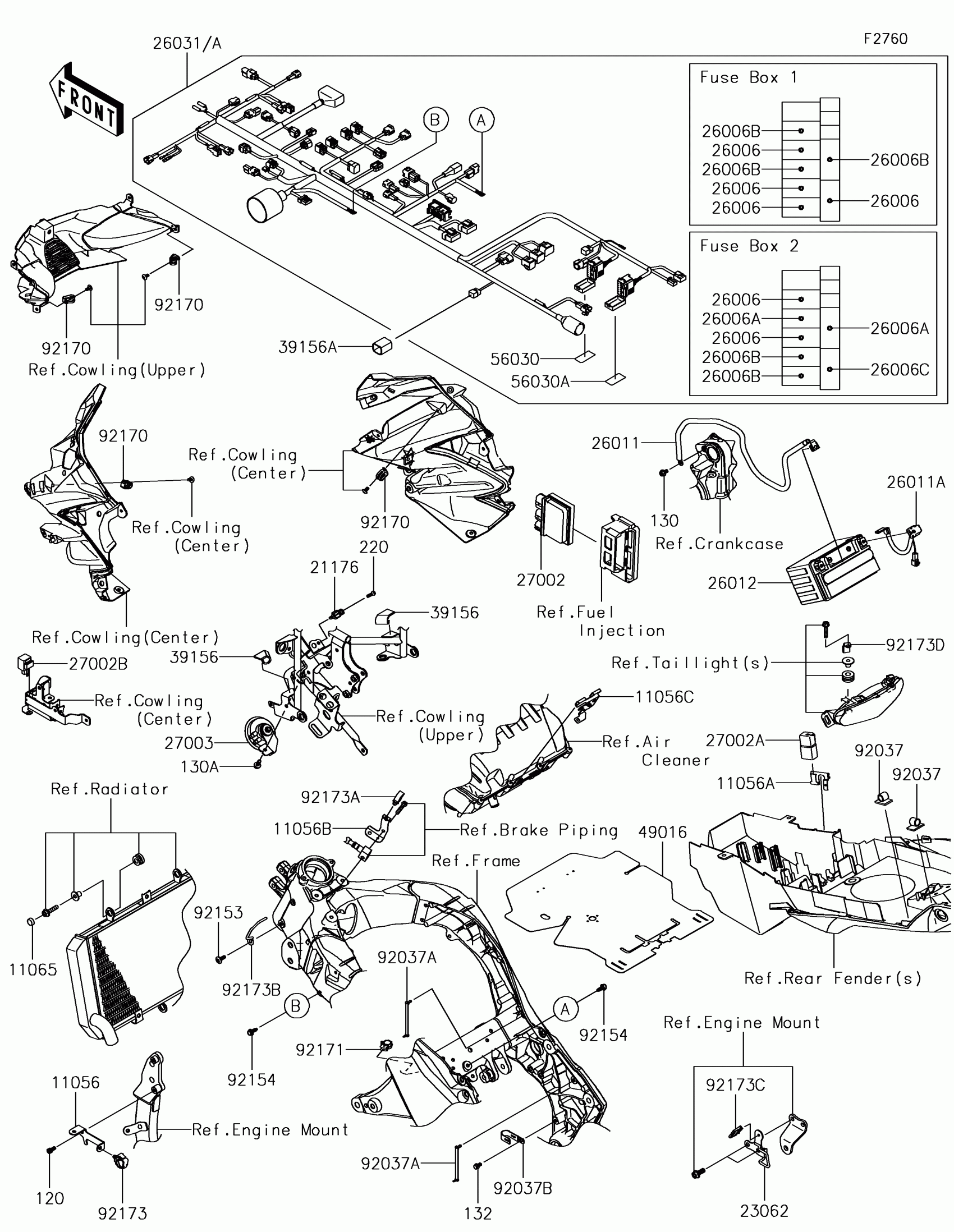

2018 Kawasaki Versys® 1000 LT Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ENGINE

11056-1478

1
Out of stock

11056A

BRACKET,RELAY

11056-1735

1
Out of stock

11056B

BRACKET,WHEEL SPEED SENSOR

11056-4165

1
Out of stock

11056C

BRACKET,AIR BOX

11056-4375

1
Out of stock

11065

CAP,BOLT

11065-0752

1
Out of stock

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

21176

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

23062

BRACKET-COMP,CABLE GUIDE

23062-0811

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

1
Out of stock

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

1
Out of stock

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0737

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0758

1
Out of stock

26012

BATTERY,YTX9-BS,12V 8AH

26012-0838

1
Out of stock

26031

HARNESS,MAIN

26031-2198

1
Out of stock

26031A

HARNESS,MAIN

26031-2199

1
Out of stock

27002

RELAY-ASSY,BOX

27002-0025

1
Out of stock

27002A

RELAY-ASSY

27002-1086

1
Out of stock

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

1
Out of stock

27003

HORN

27003-0109

1
Out of stock

39156

PAD,21X33X3

39156-1851

1

$0.98

In stock

39156A

PAD,DIAG. CONNECTOR

39156-1886

1

$1.80

In stock

49016

COVER-SEAL

49016-0625

1
Out of stock

56030

LABEL,FUSE BOX1

56030-0830

1
Out of stock

56030A

LABEL,FUSE BOX2

56030-0878

1
Out of stock

92037

CLAMP,TUBE

92037-1794

1
Out of stock

92037A

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92037B

CLAMP,CABLE,STEEL SHEET

92037-2014

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92171

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP

92173-0861

1
Out of stock

92173A

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92173B

CLAMP,IRON WIRE

92173-1199

1
Out of stock

92173C

CLAMP,CABLE CLIP

92173-1242

1
Out of stock

92173D

CLAMP

92173-1729

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

132

1

$1.47

In stock

220

SCREW-PAN-CROS,5X16

220AB0516

1
Out of stock
