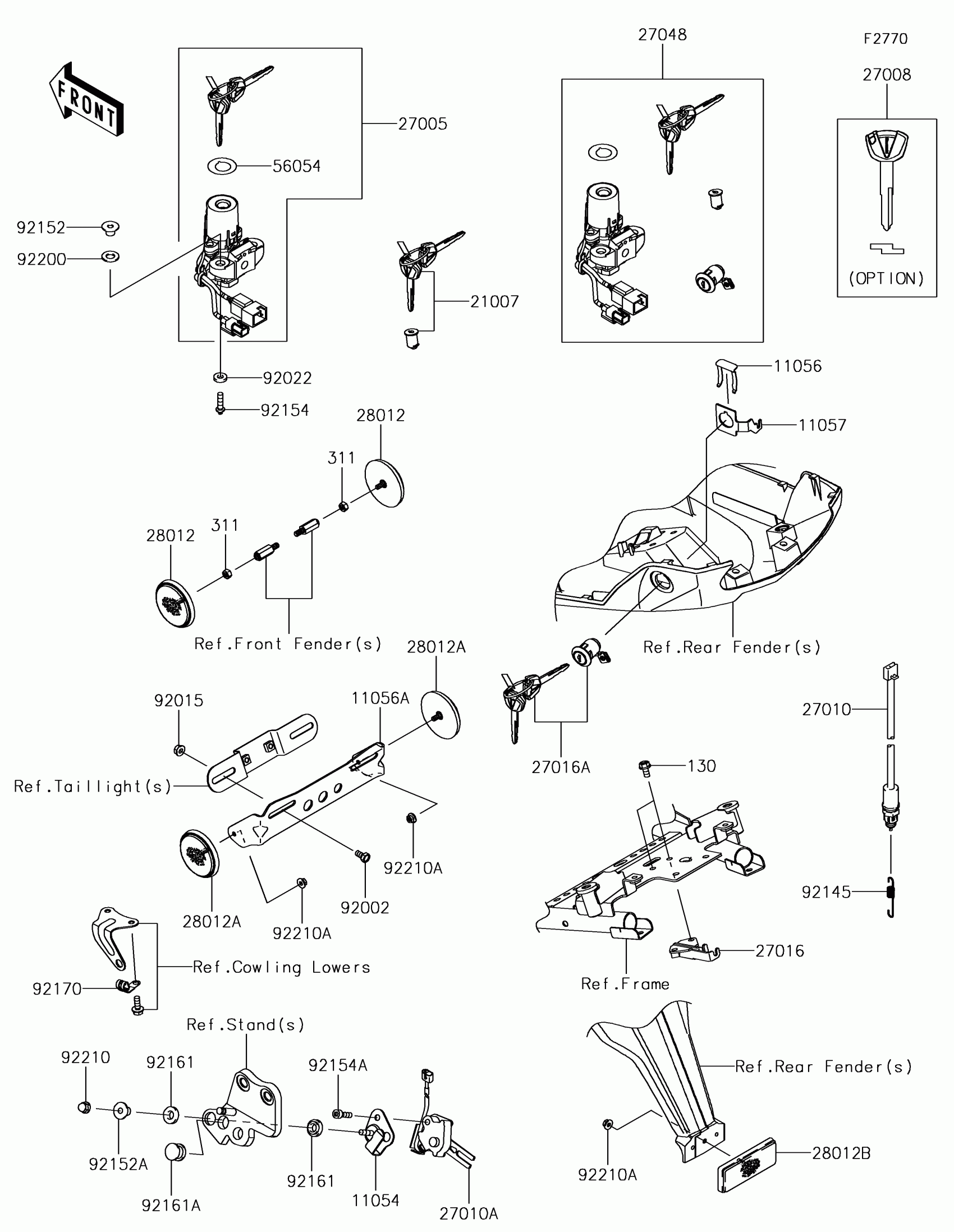

Kawasaki VERSYS® 1000 LT Ignition Switch/Locks/Reflectors Diagram

Description

Price

11054

BRACKET,SIDE STAND SWITCH

11054-1904

$10.83

11056

BRACKET,CLASP

11056-0238

$4.53

11056A

BRACKET,REFLECTOR

11056-4459

$32.34

11057

BRACKET,KEY CYLINDER

11057-0478

$3.93

130

BOLT-FLANGED,6X12

130BA0612

$1.25

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005

SWITCH-ASSY-IGNITION

27005-0565

$183.65

27008

KEY-LOCK,BLANK,IMMOBI,SUB

27008-0065

$60.57

27010

SWITCH,STOP

27010-0749

$35.68

27010A

SWITCH,SIDE STAND

27010-0811

$72.44

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5396

$92.15

27048

SWITCH-ASSY

27048-5116

$436.76

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

311

NUT-HEX,5MM

311AB0500

$0.46

56054

MARK,IGNITION SWITCH

56054-0969

Unavailable

92002

BOLT,6X12

92002-1132

$1.14

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,7X15.5X3

92022-312

$3.97

92145

SPRING,BRAKE LAMP SWITCH

92145-0761

$3.58

92152

COLLAR

92152-0423

$2.98

92152A

COLLAR

92152-1074

$4.67

92154

BOLT,TORX,6X22

92154-1858

$3.01

92154A

BOLT,SOCKET,6X22

92154-1898

$1.54

92161

DAMPER

92161-0117

$2.36

92161A

DAMPER

92161-0118

$2.36

92170

CLAMP

92170-1514

$3.29

92200

WASHER,10.2X20X1.6

92200-0328

$3.51

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,FLANGED,5MM

92210-0007

$1.90
