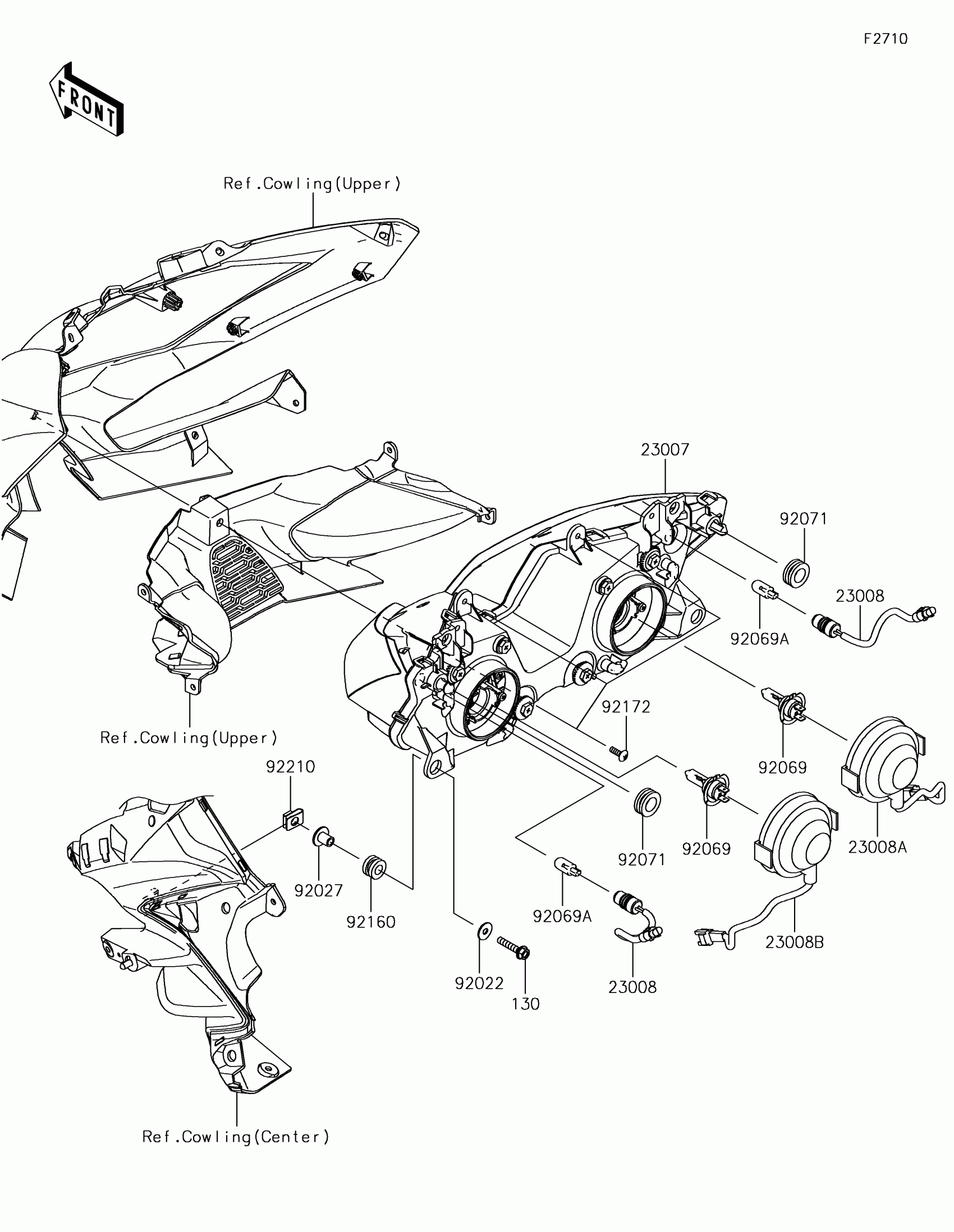

Kawasaki VERSYS® 1000 LT Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X30

130BB0630

$3.38

23007

LENS-COMP

23007-0174

$369.16

23008

SOCKET-ASSY,POSITION LAMP

23008-0155

$84.47

23008A

SOCKET-ASSY,LO

23008-0160

$50.60

23008B

SOCKET-ASSY,HI

23008-0161

$50.60

92022

WASHER,6.2X18X1.2

92022-1369

$3.56

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92069

BULB,12V 55W,H7

92069-0053

$38.09

92069A

BULB,12V 5W

92069-1016

$4.88

92071

GROMMET

92071-1131

$5.93

92160

DAMPER,10X20X12

92160-1167

$3.57

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92210

NUT

92210-0130

$4.23
