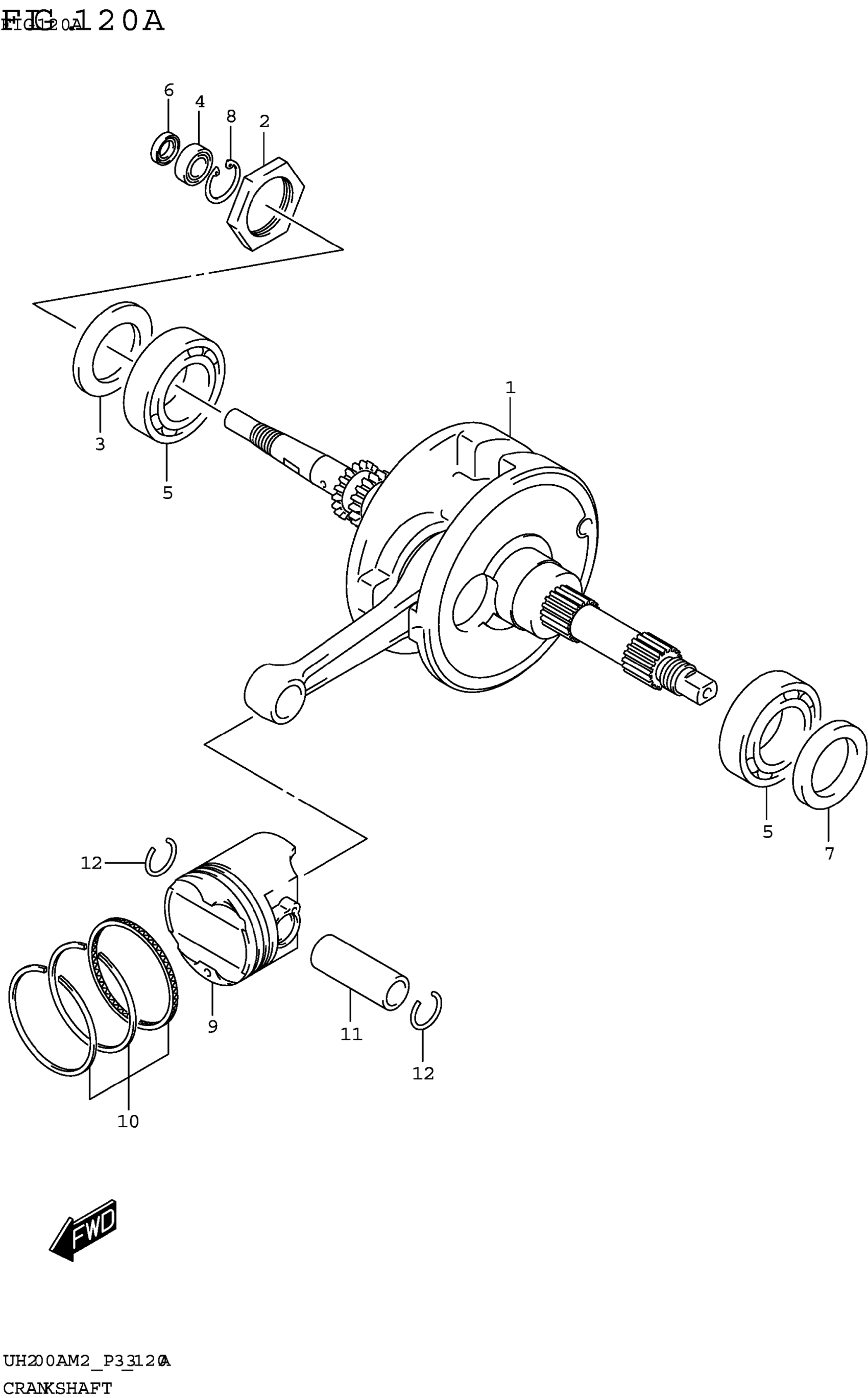

Suzuki UH200AM2 (2022) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-12J50

$541.57

2

NUT,FLYWHEEL

12664-24B01

$17.40

3

SHIM (35X57X1)

09181-35024

$7.40

4

BEARING

08153-60017

$21.21

5

BEARING (35X72X17)

09262-35038

$42.19

6

SEAL,OIL (12X21X7)

09282-12L01

$8.82

7

OIL SEAL (34X52X6)

09283-34L01

$30.10

8

CIRCLIP

08331-41289

$2.92

9

PISTON

12111-03H60-0F0

$105.37

10

RING SET,PISTON

12140-06H20

$93.63

11

PIN,PISTON

12151-17C20

$16.37

12

CIRCLIP

09381-19006

$2.18
