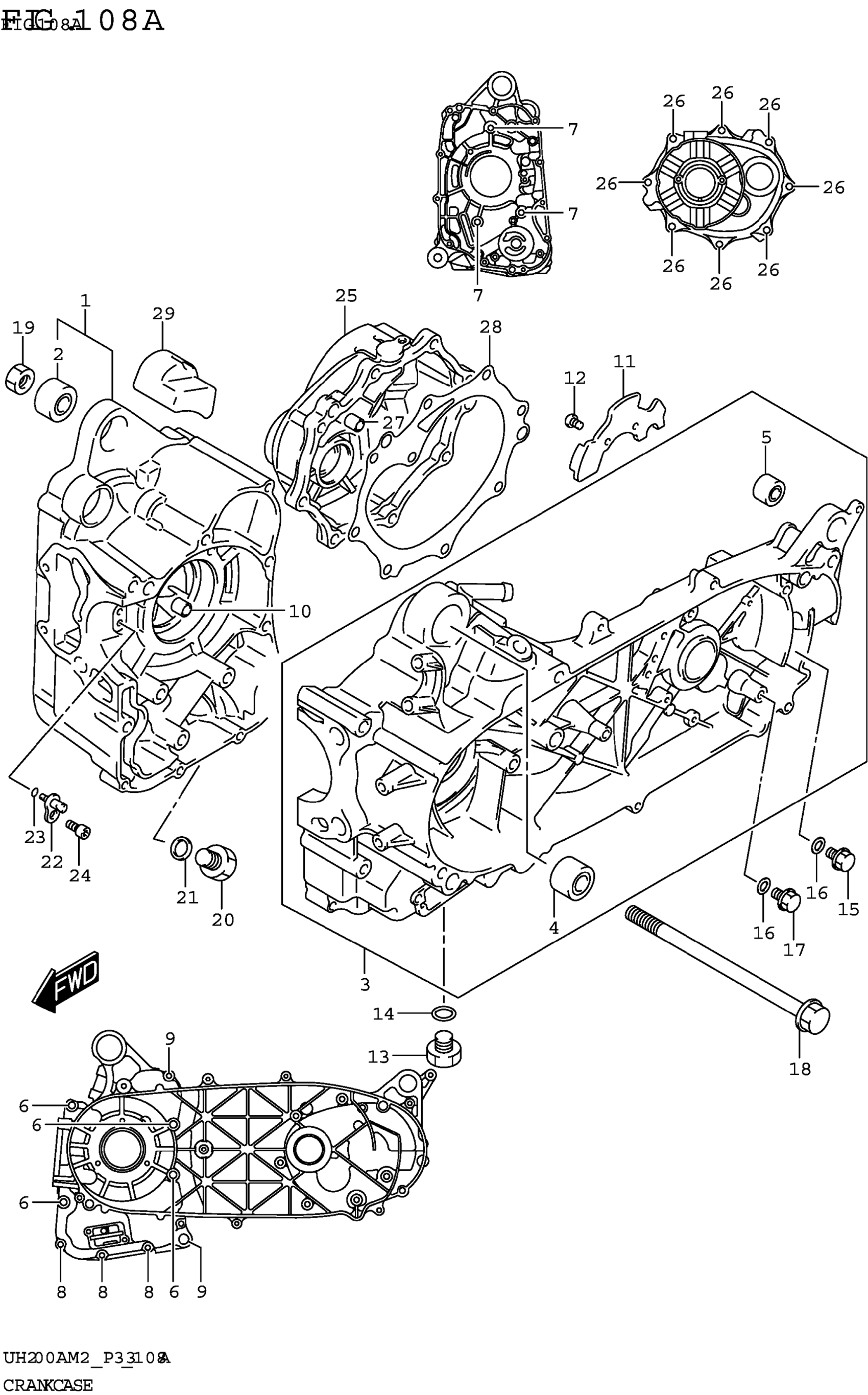

Suzuki UH200AM2 (2022) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET RH

11310-03830

$279.28

2

.BUSH (12X34.1X29.5)

09319-12060

$16.98

3

CRANKCASE SET LH

11320-03840

$737.27

4

.BUSH (12X34.1X29.5)

09319-12060

$16.98

5

.BUSH (10.2X22.3X20)

09319-10032

$10.08

6

.BOLT

01550-0885A

$4.53

7

.BOLT

01550-0865A

$3.21

8

BOLT

01547-0635A

$2.31

9

.BOLT

01547-0655A

$2.43

10

PIN

04211-11169

$1.77

11

PLATE,GEAR BOX

11323-03H00-X07

Unavailable

12

BOLT

01547-0612A

$2.01

13

PLUG (14X12)

09247-14026

$3.38

14

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

15

BOLT (8X12)

01550-0812A

$2.31

16

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

17

BOLT (8X12)

01550-0812A

$2.31

18

BOLT (12X215)

09103-12058

$18.27

19

NUT

08310-0012A

$2.36

20

PLUG (12X10)

09247-12006

$2.80

21

GASKET (12X16.5X2.2)

09168-12021

$1.75

22

JET,PISTON COOLING

11390-03H00

$29.47

23

O-RING (D:1.2,ID:4)

09280-04004

$1.76

24

BOLT (6X12)

09106-06075

$2.50

25

COVER,GEAR BOX

11431-12J00

Unavailable

26

BOLT

01550-0830A

$2.80

27

PIN

04211-11169

$1.77

28

GASKET,GEAR BOX COVER

11484-12J00

$18.28

29

SEPARATOR,OIL BREATHER

11186-49F00

Unavailable
