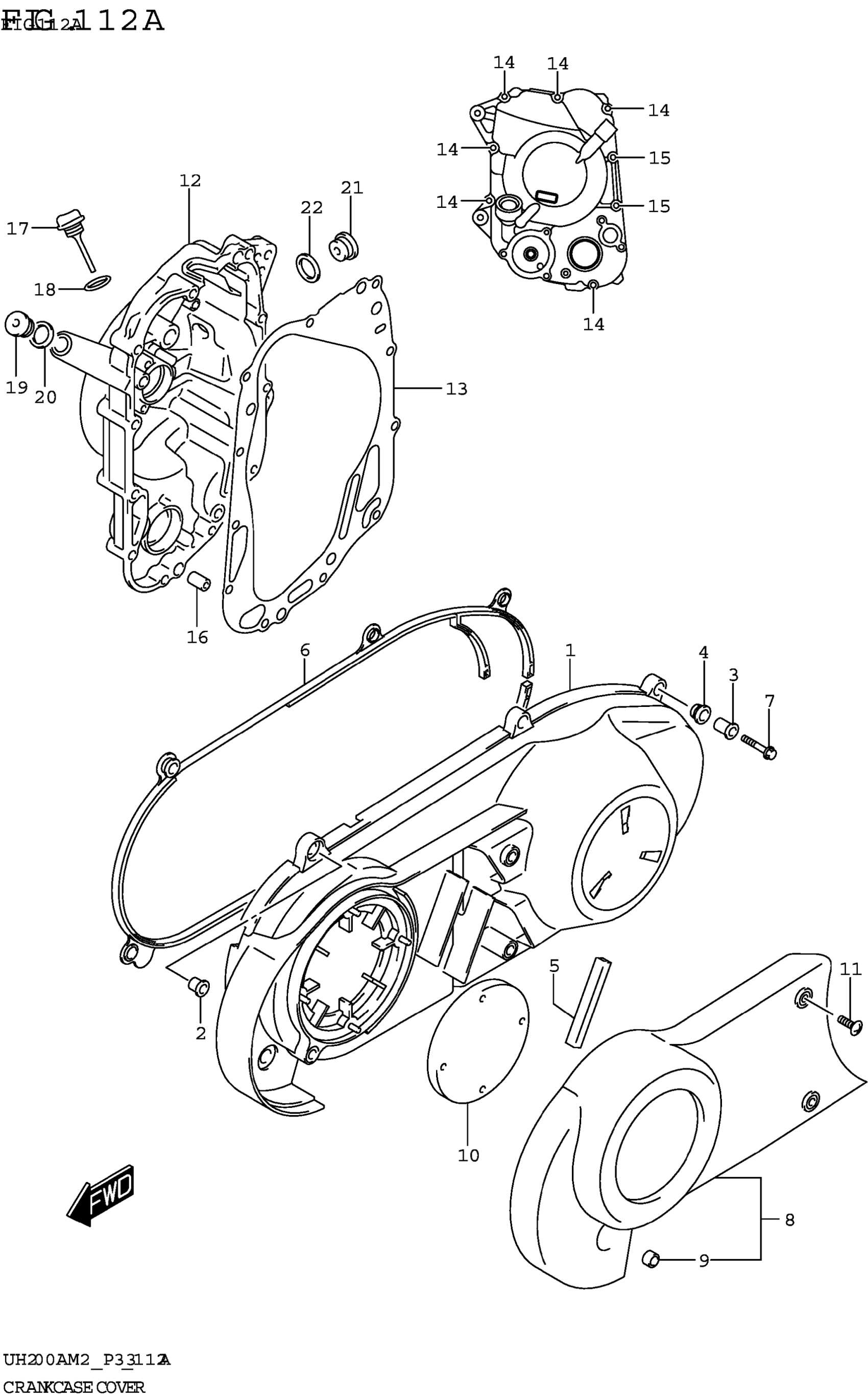

Suzuki UH200AM2 (2022) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-12J00

$159.62

2

SPACER,CLUTCH COVER

11342-03H00

$5.37

3

SPACER,CLUTCH COVER NO.1

11342-43E20

$4.77

4

CUSHION,CLUTCH COVER

11344-43E20

$3.46

5

MOLD,CLUTCH COVER

11345-03H00

$6.72

6

GASKET,CLUTCH COVER

11482-03H00

$33.23

7

BOLT

01547-0625A

$2.01

8

DUCT, BELT COOLING

11380-12J00

$41.70

9

SPACER (6.5X10X7)

09180-06283

$1.89

10

FILTER,BELT COOLING

11388-03H01-X07

$8.62

11

SCREW

02142-0616B

$1.80

12

COVER,MAGNETO

11351-03H10

$225.03

13

GASKET,MAGNETO COVER

11483-03H00-X07

$20.12

14

BOLT

01547-0635A

$2.31

15

BOLT

01547-0645A

$2.43

16

PIN (8.5X18X2.3)

04211-09149

$1.64

17

GAUGE,OIL LEVEL

11971-14F00

$11.20

18

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

19

PLUG (14X12)

09248-14011

$2.80

20

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

21

PLUG (16X8)

09248-16012

$4.19

22

GASKET (16X22X2)

09168-16002

$1.89
