2017 Suzuki UH200AL7 Rear Leg Shield Diagram

← All diagrams

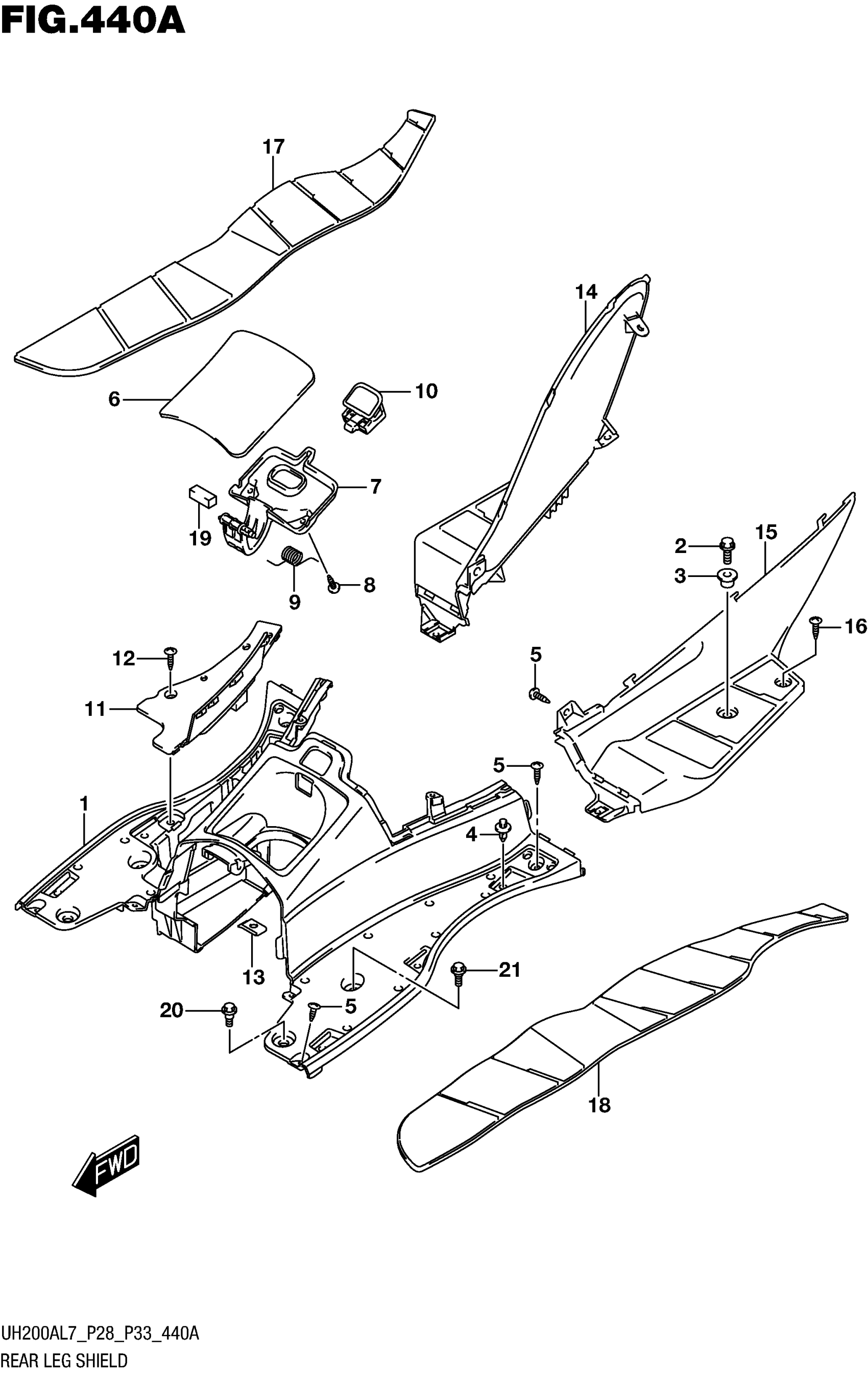

Find the part on the Rear Leg Shield diagram for your 2017 Suzuki UH200AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki UH200AL7 Rear Leg Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTBOARD, FRONT (BLACK)

48121-12JB0-291

1
Out of stock

2

BOLT

48124-12JA0

—
Out of stock

3

SPACER (6.3X10X9.6)

48129-12JA0

2
Out of stock

4

CLIP (BLACK)

09409-08308-5ES

6
Out of stock

5

SCREW

03541-0516A

10
Out of stock

6

LID, FUEL (BLACK)

48125-12JB0-291

1
Out of stock

7

ARM, FUEL LID

48126-12JB0

1
Out of stock

8

SCREW

03541-0516A

2
Out of stock

9

SPRING,FUEL LID

92163-03H00

1
Out of stock

10

LOCK ASSY (BLACK)

92180-12JA0-291

1
Out of stock

11

LID, BATTERY (BLACK)

48127-12JB0-291

1
Out of stock

12

SCREW

03541-0516A

1
Out of stock

13

NUT

09148-05038

3
Out of stock

14

FOOTBOARD RH (BLACK)

48122-12JB0-291

—
Out of stock

15

FOOTBOARD LH (BLACK) This part replaces 48123-12JB0-291.

48123-12JA0-291

1
Out of stock

16

SCREW

03541-0520B

2
Out of stock

17

MAT,FLOOR RH (BLACK) This part replaces 48211-12JA0-291.

48211-12JC0-291

1
Out of stock

18

MAT, FLOOR LH (BLACK)

48221-12JA0-291

1
Out of stock

19

CUSHION, FUEL LID

48128-12JA0

1
Out of stock

20

BOLT (6X17.8)

09111-06072

2
Out of stock

21

BOLT (6X14.8)

09111-06102

2
Out of stock
