2017 Suzuki UH200AL7 Helmet BOX Diagram

← All diagrams

Find the part on the Helmet BOX diagram for your 2017 Suzuki UH200AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

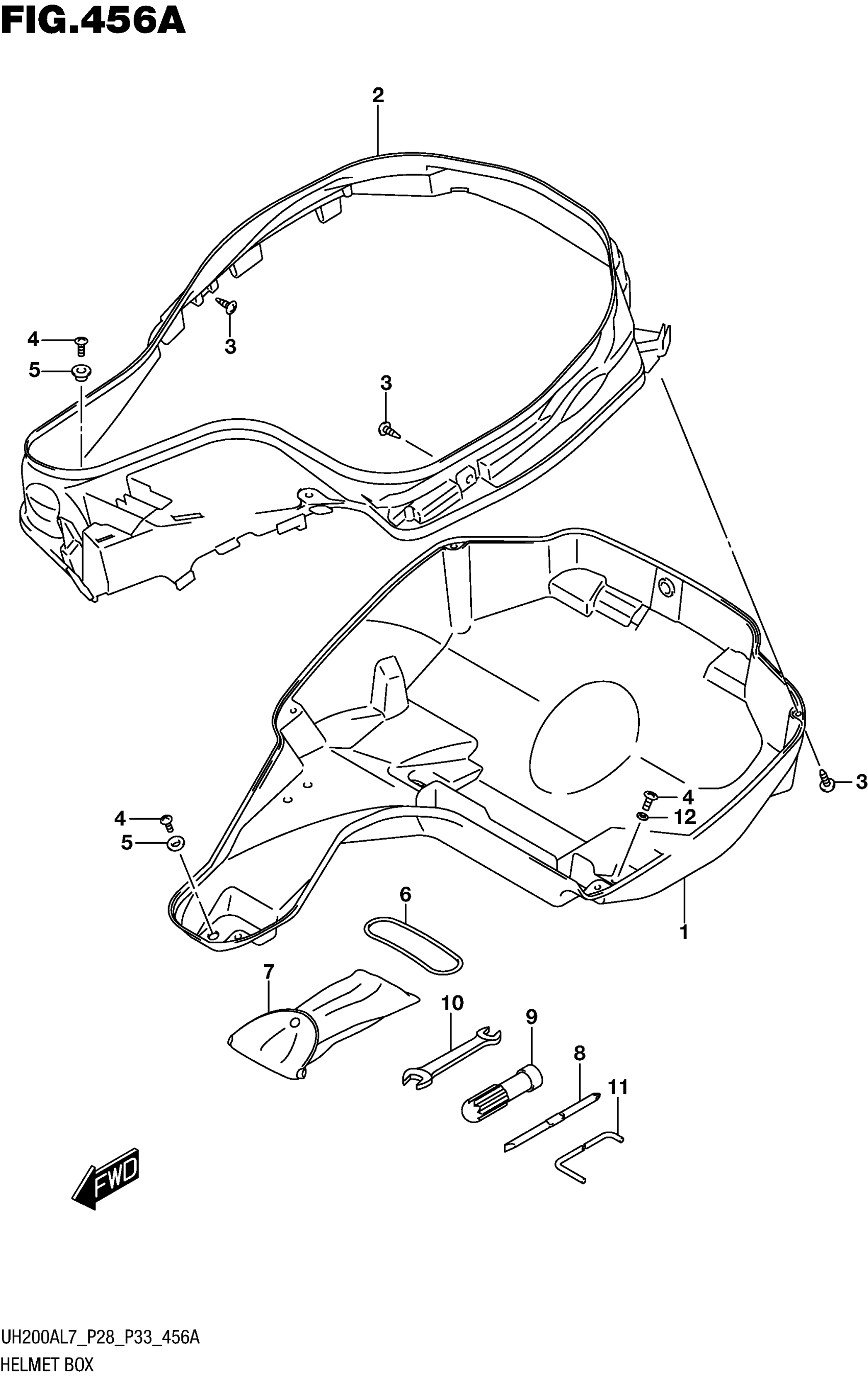

2017 Suzuki UH200AL7 Helmet BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX,HELMET LOWER

92211-12JB0

1
Out of stock

2

BOX,HELMET UPPER

92221-12JB0

1
Out of stock

3

SCREW

03541-0516A

7
Out of stock

4

SCREW

02142-0616A

4
Out of stock

5

2

$2.35

In stock

6

O RING (D:3.5,ID:56.5)

09280-57003

1
Out of stock

7

BAG,TOOL

96511-12JA0

1
Out of stock

8

DRIVER

09814-00L01

—
Out of stock

9

GRIP,DRIVER

09814-00L02

—
Out of stock

10

SPANNER,OPEN (10X12)

96513-12JA0

—
Out of stock

11

ROD,TOOL

09816-00177

1
Out of stock

12

WASHER

09160-06019

2
Out of stock
