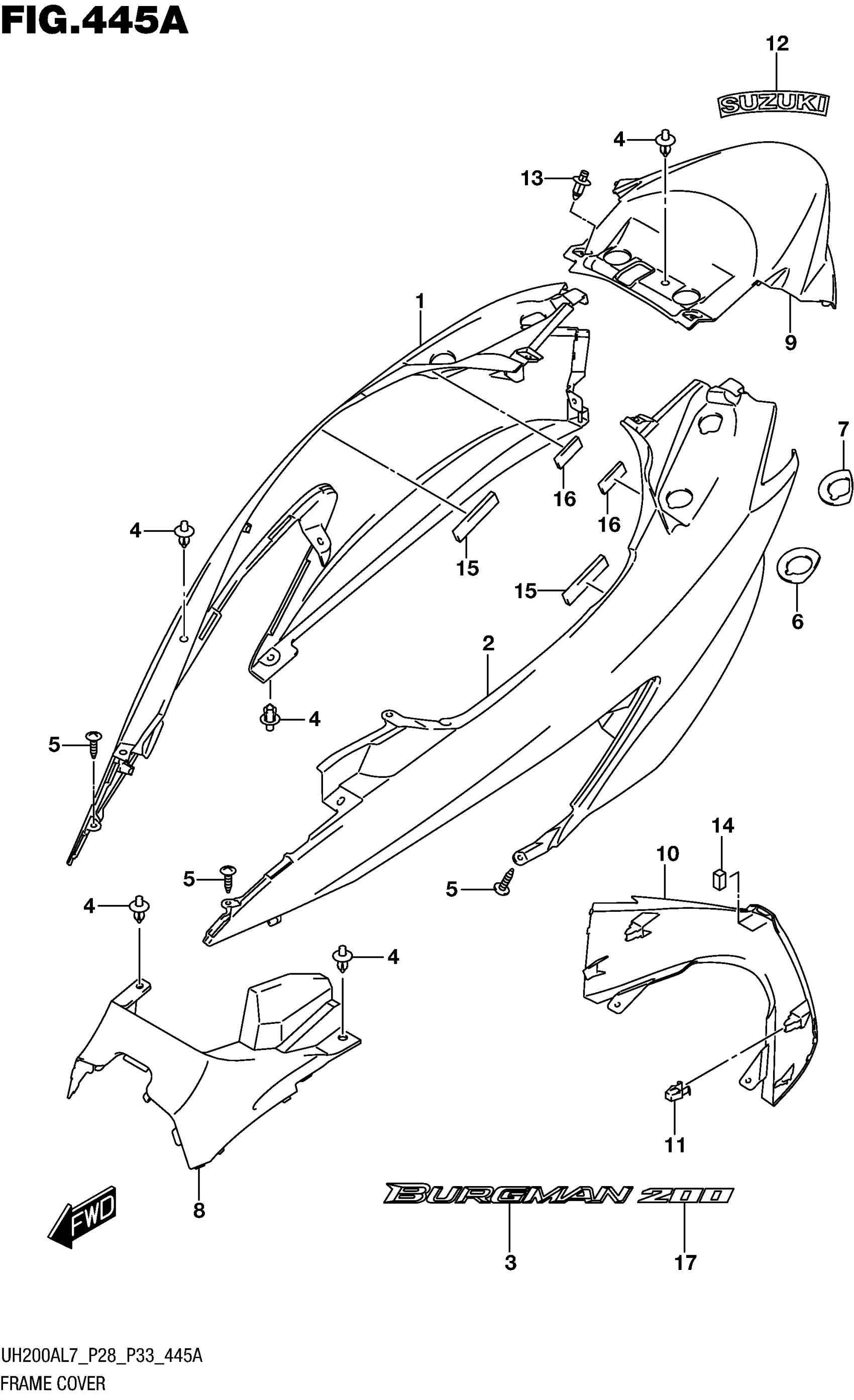

Suzuki UH200AL7 (2017) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (GRAY)

47111-12JA2-PGZ

$178.77

1-2

COVER, FRAME RH (WHITE)

47111-12JA2-YUH

$197.75

1-3

COVER, FRAME RH (SILVER)

47111-12JA2-YMC

$178.77

2-1

COVER, FRAME LH (GRAY)

47211-12JA2-PGZ

$197.75

2-2

COVER, FRAME LH (WHITE)

47211-12JA2-YUH

$120.45

2-3

COVER, FRAME LH (SILVER)

47211-12JA2-YMC

$178.77

3

EMBLEM,FRAME COVER

68131-12JA0

$44.02

4

CLIP (BLACK)

09409-08308-5ES

$1.97

5

SCREW

03541-0516A

$1.37

6

CUSHION,FRAME COVER FR

47161-12JB0

$3.13

7

CUSHION,FRAME COVER RR

47162-12JB0

$3.13

8

COVER, FRONT (BLACK)

47351-12JB0-291

$52.63

9-1

COVER, CENTER (GRAY)

47311-12JA0-PGZ

$49.98

9-2

COVER,FRAME CTR (WHITE)

47311-12JA0-YUH

$73.83

9-3

COVER, CENTER (SILVER)

47311-12JA0-YMC

$83.22

10-1

COVER, REAR LOWER (GRAY)

47411-12JA0-PGZ

$45.62

10-2

COVER,FRAME LWR (WHITE)

47411-12JA0-YUH

$84.27

10-3

COVER, REAR LOWER (SILVER)

47411-12JA0-YMC

$69.37

11

CLIP

09409-08326

$2.45

12-1

EMBLEM "SUZUKI" (SILVER/GRAY) | FOR PGZ

68131-03HB0-AJK

Unavailable

12-2

EMBLEM,"SUZUKI" (GRAY/WHITE) | FOR YUH

68131-03HB0-ALZ

$11.78

12-3

EMBLEM "SUZUKI" (SILVER) | FOR YMC

68131-03HB0-BGE

$8.41

13

CLIP

09409-06329

$2.80

14

CUSHION, FR BOX NO.4

92152-12JA0

$5.28

15

CUSHION, FRAME COVER UPPER

47163-12JA0

$3.24

15

NO.1

47163-12JA0

$3.24

16

CUSHION, FRAME COVER UPPER

47164-12JA0

$3.80

16

NO.2

47164-12JA0

$3.80

17-1

EMBLEM "200" (SILVER/GRAY) | FOR PGZ

68131-03H30-AJK

$8.41

17-2

EMBLEM,"200" (GRAY/WHITE) | FOR YUH

68131-03H30-ALZ

$10.17

17-3

EMBLEM "200" (SILVER) | FOR YMC

68131-03H30-BGE

$9.67
