1972 Yamaha U7E (U7E) Transmission Diagram

← All diagrams

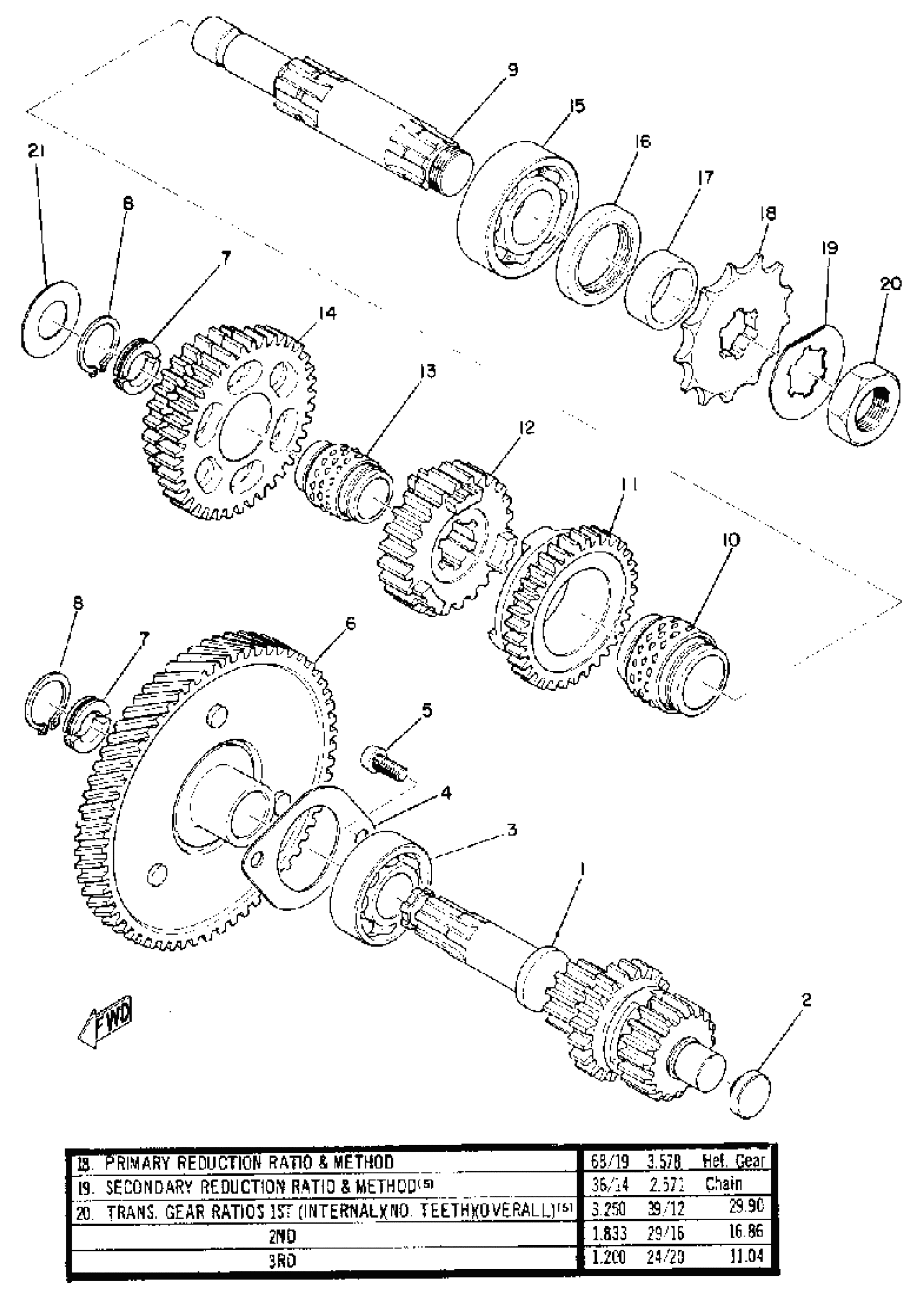

Find the part on the Transmission diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN AXLE

(296-17410-09-00)

1
Out of stock

2

PLUG, SPEC''L SHAPE

(90338-17006-00)

1
Out of stock

3

1

$31.64

In stock

4

PLATE, BEARING COVER

296-17471-00-00

1
Out of stock

5

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

6

PRI DRVN GEAR

(298-16150-00-00)

1
Out of stock

7

HOLDER, KICK GEAR

137-15654-00-00

1
Out of stock

8

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

9

AXLE, DRIVE

(296-17421-00-00)

1
Out of stock

10

BEARING, SLIDE 2

(296-17224-00-00)

1
Out of stock

11

GEAR, 2ND WHEEL

(296-17221-00-00)

1
Out of stock

12

GEAR, 3RD WHEEL

(296-17231-00-00)

1
Out of stock

13

BEARING, SIDE 1

(296-17214-03-00)

1
Out of stock

14

GEAR, 1ST WHEEL

(296-17211-02-00)

1
Out of stock

15

BEARING(1YW)

93306-20461-00

1

$33.41

In stock

16

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

17

COLLAR (525)

90387-20491-00

—

$13.71

In stock

18

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

—
Out of stock

18

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

—
Out of stock

18

SPROCKET, DRIVE (166-17461-60)

93812-16092-00

1
Out of stock

19

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

20

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

21

SHIM, DRIVE AXLE

164-17427-00-06

—

$5.15

In stock
