1972 Yamaha U7E (U7E) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

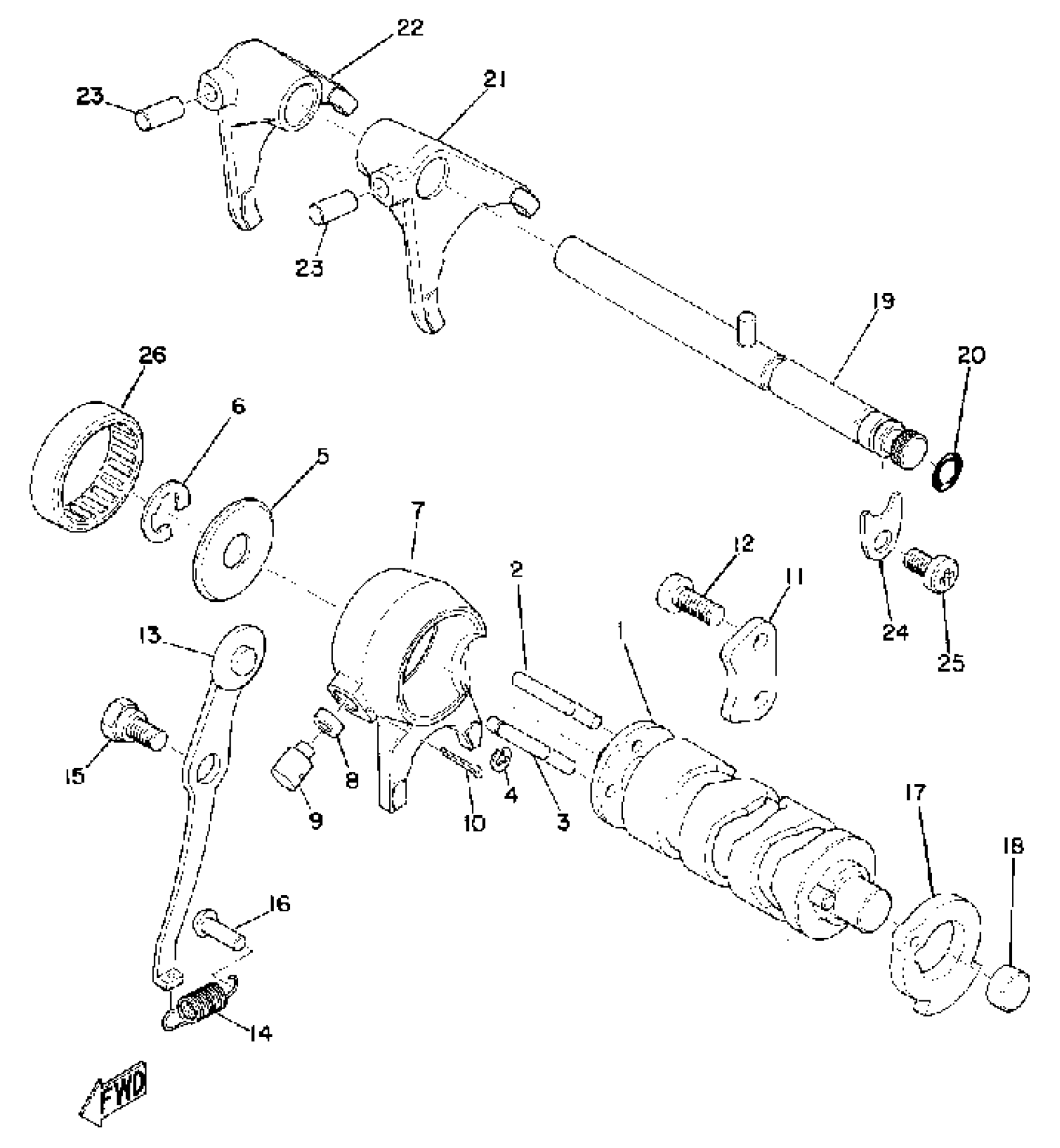

1972 Yamaha U7E (U7E) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

(296-18540-60-00)

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

4

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

5

PLATE, SIDE

296-18561-00-00

1

$5.38

In stock

6

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

7

FORK, SHIFT 1

(296-18511-00-00)

1
Out of stock

8

PIN,SPEC'L SHAPE

90249-05035-00

1
Out of stock

9

PIN, SPEC''L SHAPE

(90249-05041-00)

1
Out of stock

10

PIN, COTTER

91490-25020-00

1

$2.94

In stock

11

PLATE, STOPPER

296-18562-01-00

1
Out of stock

12

SCREW, PAN

98507-06014-00

1

$6.18

In stock

13

STOPPER LEVER ASSY

296-18140-03-00

—
Out of stock

14

SPRING, TENSION

(90506-09013-00)

1
Out of stock

15

BOLT

90109-06239-00

1

$5.77

In stock

16

HOOK, SPRING

132-16346-00-00

—
Out of stock

17

PLATE, SIDE 2

(296-18566-00-00)

1
Out of stock

18

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

19

BAR, SHIF FRK GDE 1

(296-18531-00-00)

1
Out of stock

20

O-RING

93210-08003-00

—

$6.86

In stock

21

FORK, SHIFT 2

(296-18512-01-00)

1
Out of stock

22

FORK, SHIFT 3

(296-18513-01-00)

1
Out of stock

23

PIN,DOWEL(296)

93606-14081-00

—
Out of stock

24

STOPPER

(296-18549-00-00)

1
Out of stock

25

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

26

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

—

$29.23

In stock
