1972 Yamaha U7E (U7E) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

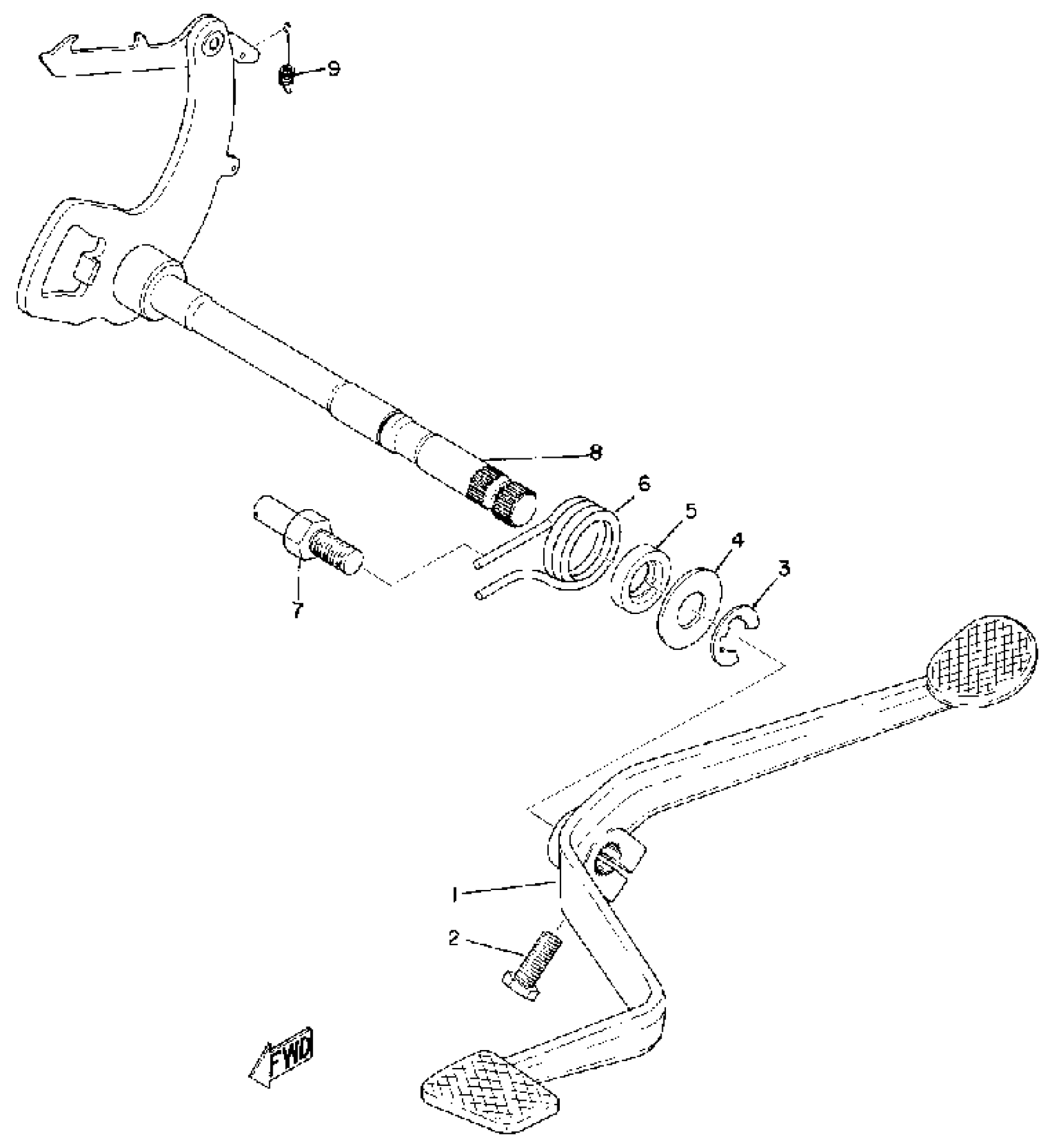

1972 Yamaha U7E (U7E) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

(297-18111-00-93)

1
Out of stock

2

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

3

CIRCLIP

99006-10600-00

1

$6.91

In stock

4

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

5

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

6

SPRING, TORSION

(90508-32137-00)

1
Out of stock

7

STOPPER, SCREW

278-18127-01-00

1
Out of stock

8

SHIFT SHAFT ASSY

58H-18101-04-00

1
Out of stock

9

SPRING, TENSION (296)

90506-08122-00

1

$5.80

In stock
