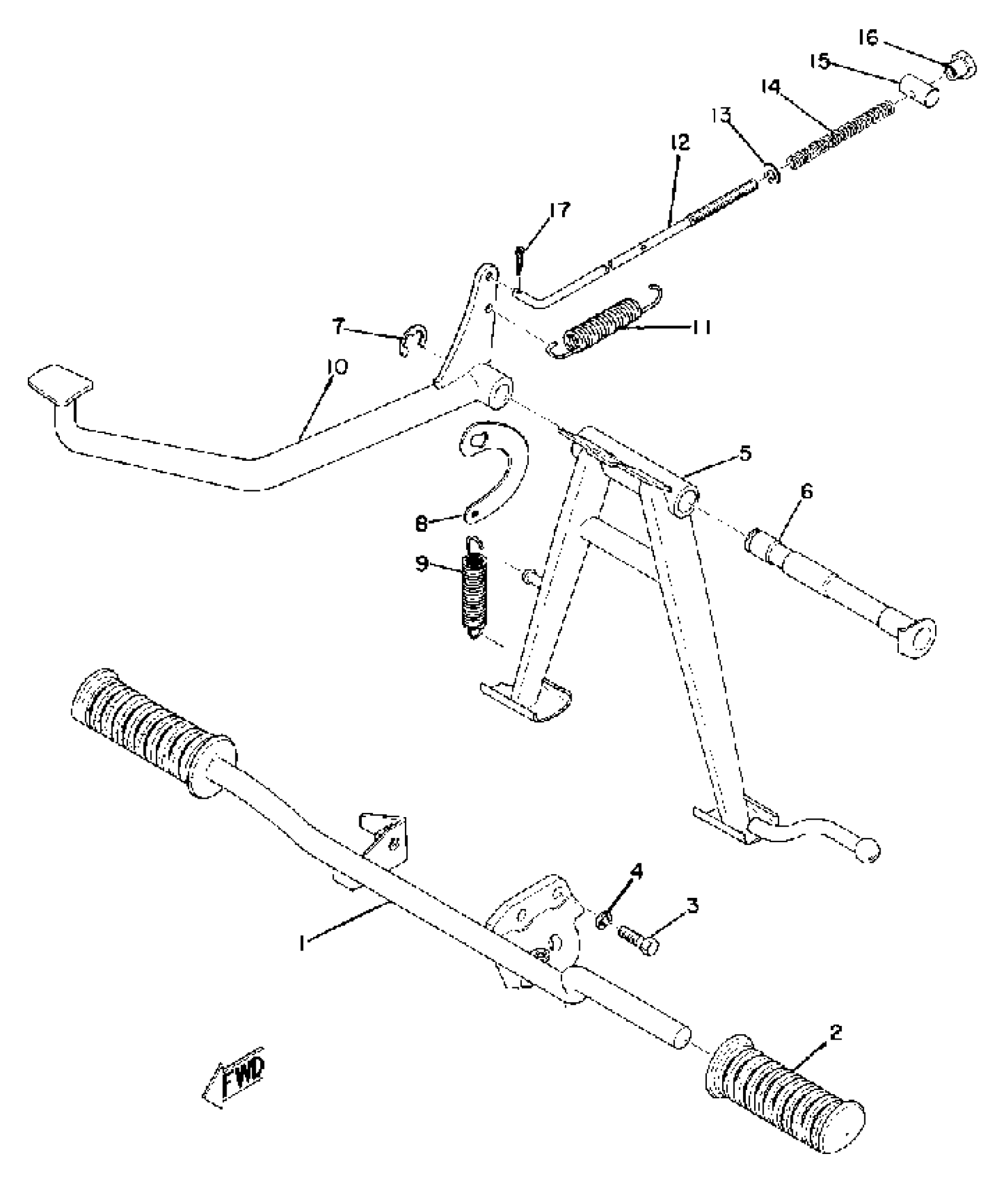

Yamaha U7E (U7E) 1972 STAND FOOTREST BRAKE PEDAL Diagram

#

Description
Price

1

FOOT REST ASSEMBLY

(99999-01171-00)

Unavailable

2

COVER, FOOTREST

122-27413-00-00

$13.55

3

BOLT, HEXAGON

97013-08016-00

$1.24

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

5

STAND, MAIN

(266-27111-01-00)

Unavailable

6

SHAFT, MAIN STAND

(296-27112-00-00)

Unavailable

7

CIRCLIP (122)

93430-12008-00

$4.89

8

LINK, MAIN STAND

(109-27115-00-00)

Unavailable

9

SPRING, TENSION

(90506-29054-00)

Unavailable

10

PEDAL, BRAKE

(296-27211-01-00)

Unavailable

11

SPRING (109-27216-00)

90506-20041-00

$6.35

12

ROD, BRAKE

(296-27231-00-00)

Unavailable

13

WASHER, PLATE (371)

90201-06431-00

$4.18

14

SPRING, (180-27236-00)

90501-10245-00

$5.75

15

PIN 1562723700

90249-12008-00

$5.75

16

NUT (25K)

90179-06411-00

Unavailable

17

PIN, COTTER

91490-20025-00

Unavailable
