1972 Yamaha U7E (U7E) LEG Shield Diagram

← All diagrams

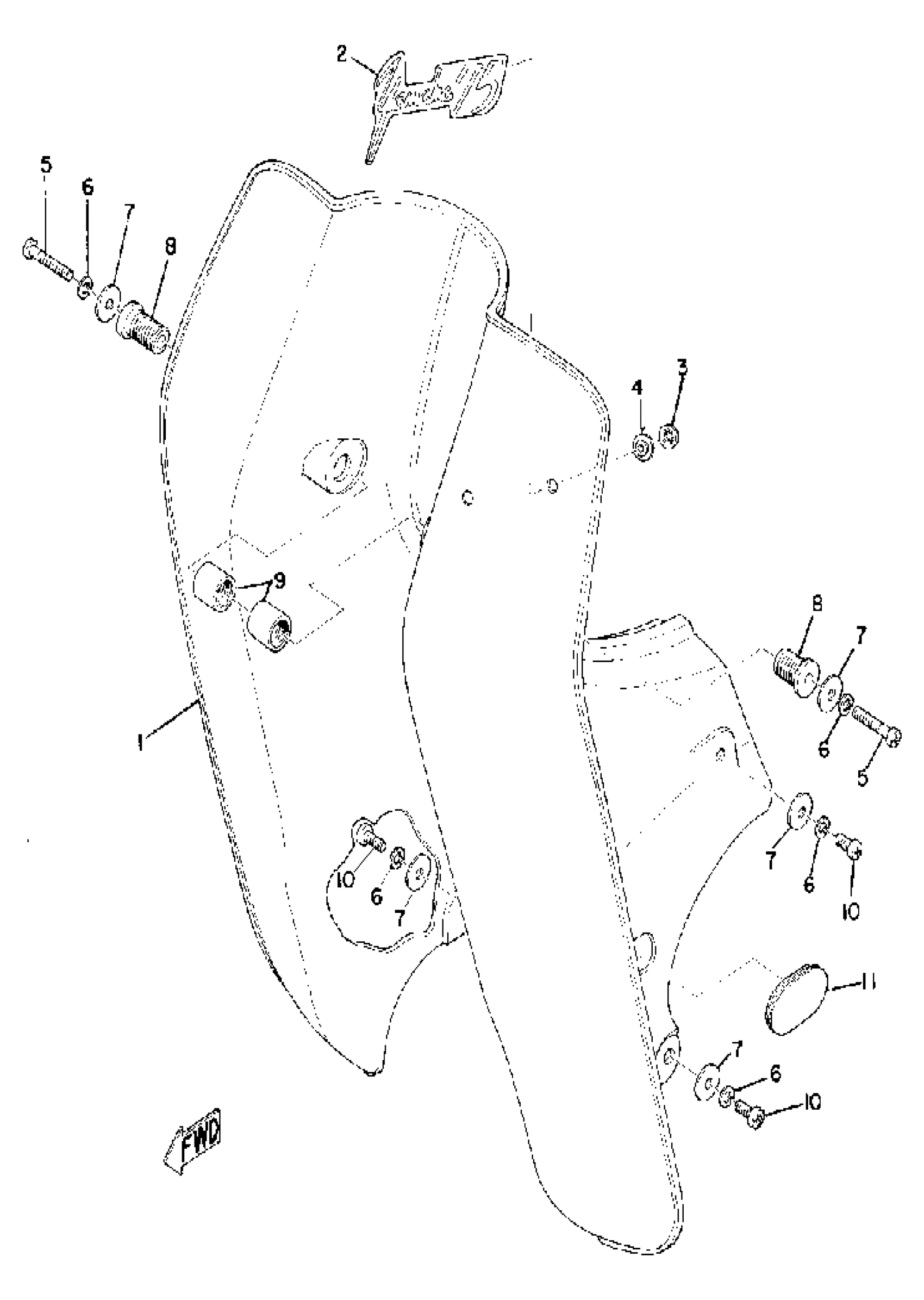

Find the part on the LEG Shield diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEG SHIELD 1

(296-28311-01-00)

1
Out of stock

2

EMBLEM

(298-28315-00-00)

1
Out of stock

3

NUT SPRING 116283170100

90183-04005-00

1

$0.74

In stock

4

DAMPER, EMBLEM

(116-28316-01-00)

1
Out of stock

5

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

8

SPACER

(296-28329-00-00)

1
Out of stock

9

COLLAR

(296-28373-00-00)

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

CAP

(296-28349-00-00)

1
Out of stock
