1972 Yamaha U7E (U7E) Seat Diagram

← All diagrams

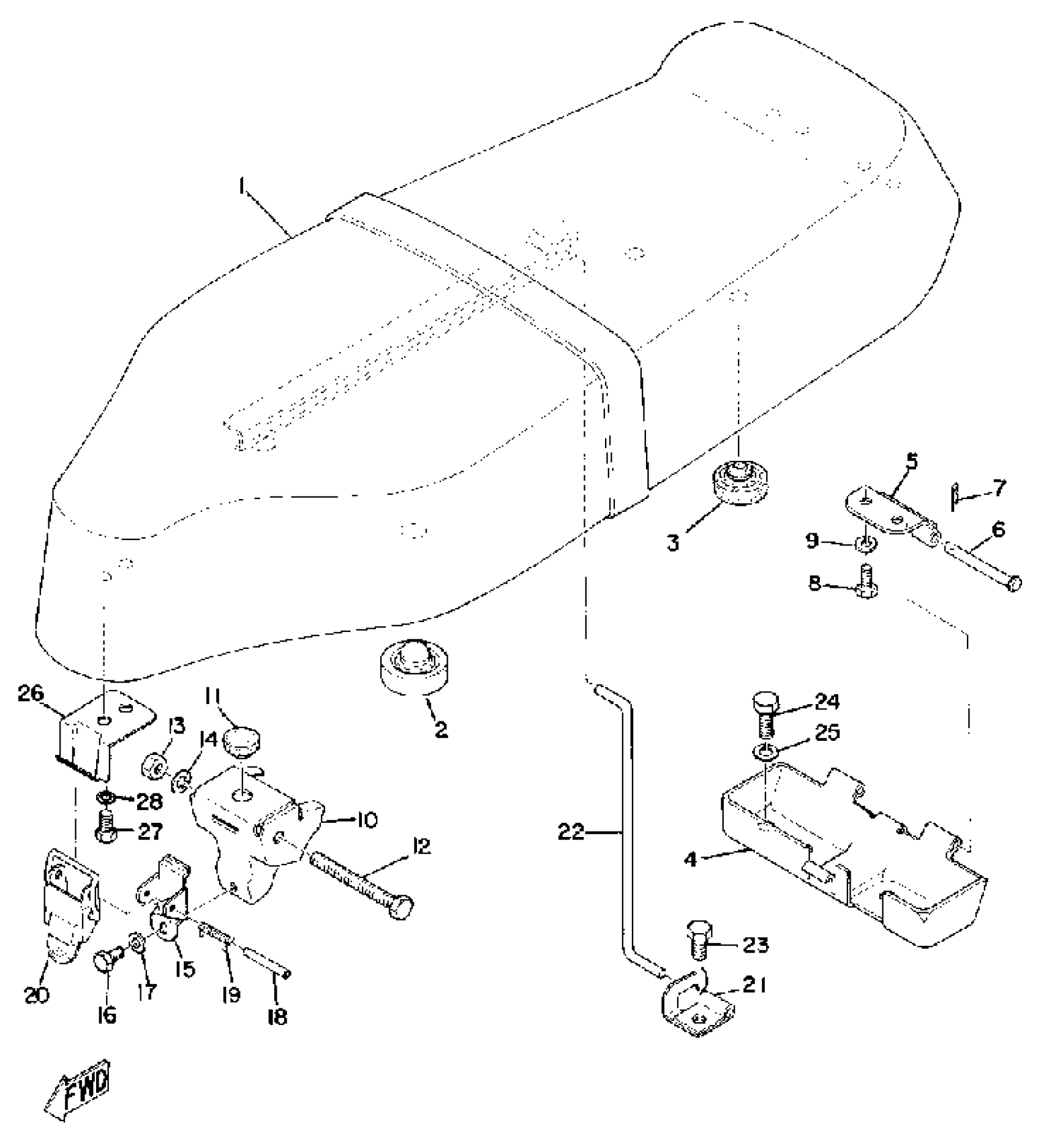

Find the part on the Seat diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(298-24730-01-00)

1
Out of stock

2

DAMPER, SEAT

(296-24723-00-00)

1
Out of stock

3

PAD, SEAT

116-24741-00-00

—
Out of stock

4

BRACKET, SEAT

(298-24738-00-33)

1
Out of stock

5

HINGE, SEAT

(214-24726-00-00)

1
Out of stock

6

PIN, CLEVIS

91701-05055-00

1
Out of stock

7

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

BRACKET, SEAT

(298-24718-00-00)

1
Out of stock

11

STOPPER, MAIN STAND

128-27114-00-00

1

$6.62

In stock

12

BOLT

97021-08065-00

1
Out of stock

13

. NUT

95380-08700-00

1

$3.07

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

BRACKET, SEAT

214-24718-00-00

1
Out of stock

16

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

17

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

18

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

19

. SPRING, TORSION

90508-10012-00

1
Out of stock

20

LEVER, SEAT

214-24776-00-33

1
Out of stock

21

BRACKET, SEAT

(298-24748-00-00)

1
Out of stock

22

STOPPER

(298-24768-00-00)

1
Out of stock

23

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

24

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

26

BRACKET, SEAT

(298-24728-00-00)

1
Out of stock

27

BOLT (661)

97013-06012-00

1

$4.71

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
