1967 Yamaha U5E (U5E) Transmission Diagram

← All diagrams

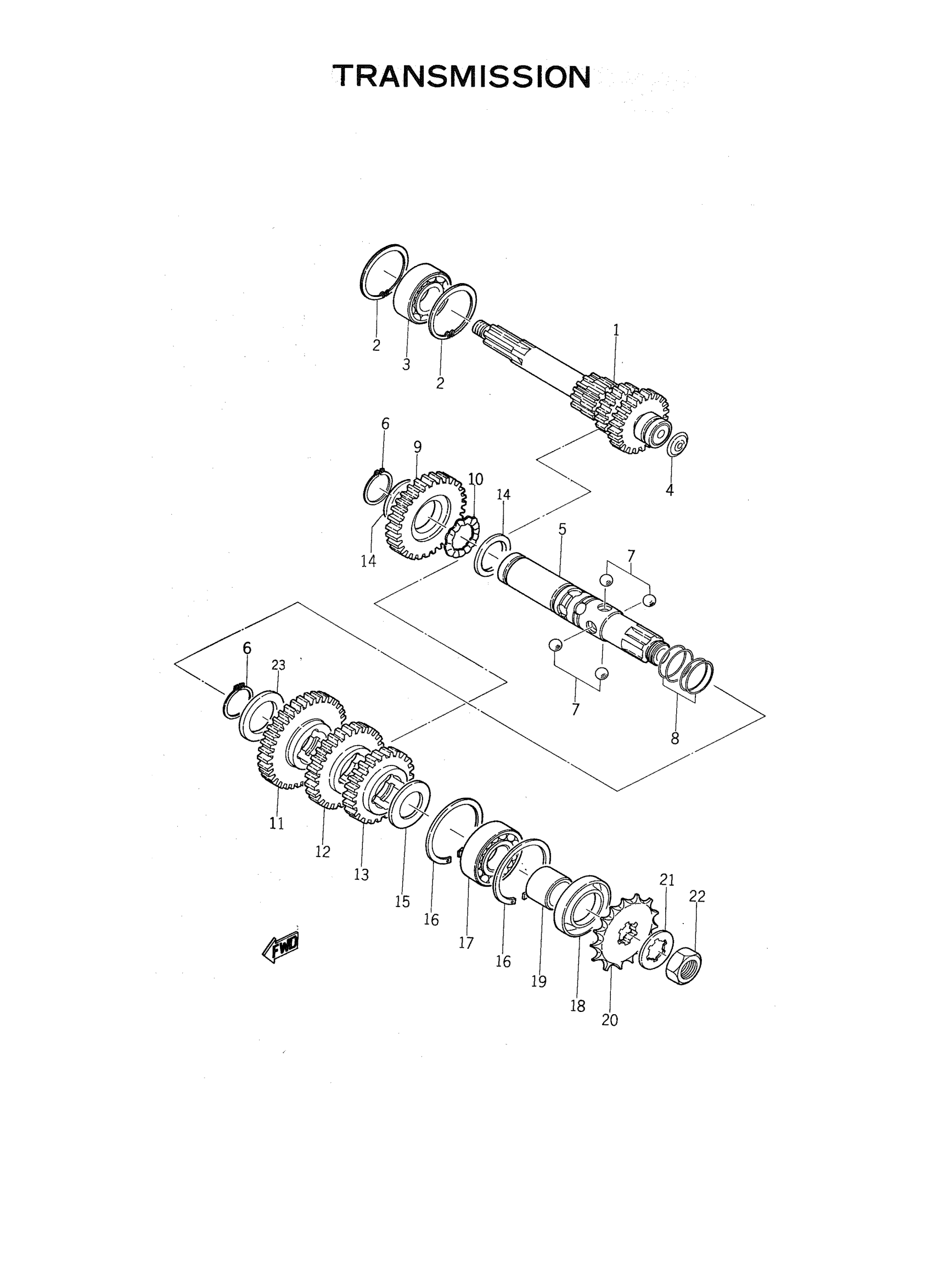

Find the part on the Transmission diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha U5E (U5E) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN AXLE

116-17411-011111-00

1
Out of stock

2

CIR-CLIP (70R)

93420-40064-00

—
Out of stock

3

BEARING (7X9)

93306-20327-00

1

$33.29

In stock

4

PLUG,EXPANSION

90330-20004-00

1
Out of stock

5

AXLE, DRIVE

116-17421-00-00

1
Out of stock

6

CIRCLIP(JF7)

99009-25400-00

1

$6.68

In stock

7

BALL

93509-32012-00

—
Out of stock

8

SPRING, BALL HOLD

122-17479-00-00

1
Out of stock

9

GEAR, IDLE

116-15641-00-00

1
Out of stock

10

WASHER, WAVE

131-15643-00-00

1
Out of stock

11

GEAR, 1ST WHEEL

116-17211-00-00

1
Out of stock

12

GEAR, 2ND WHEEL

116-17221-00-00

1
Out of stock

13

GEAR, 3RD WHEEL

116-17231-00-00

1
Out of stock

14

SHIM 1

102-17427-00-00

1
Out of stock

14

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

15

SPACER,DRIVE AXLE

116-17429-00-10

1
Out of stock

16

CIRCLIP, INNER

93450-47011-00

1
Out of stock

17

BEARING(1YW)

93306-20461-00

—

$33.41

In stock

18

OIL SEAL (28X47X7-102)

93102-28022-00

—

$12.63

In stock

19

COLLAR

90387-20346-00

1
Out of stock

20

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

—
Out of stock

20

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

—
Out of stock

20

SPROCKET, DRIVE (166-17461-60)

93812-16092-00

1
Out of stock

21

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

22

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

23

SPACER

90560-20082-00

1
Out of stock
