1967 Yamaha U5E (U5E) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

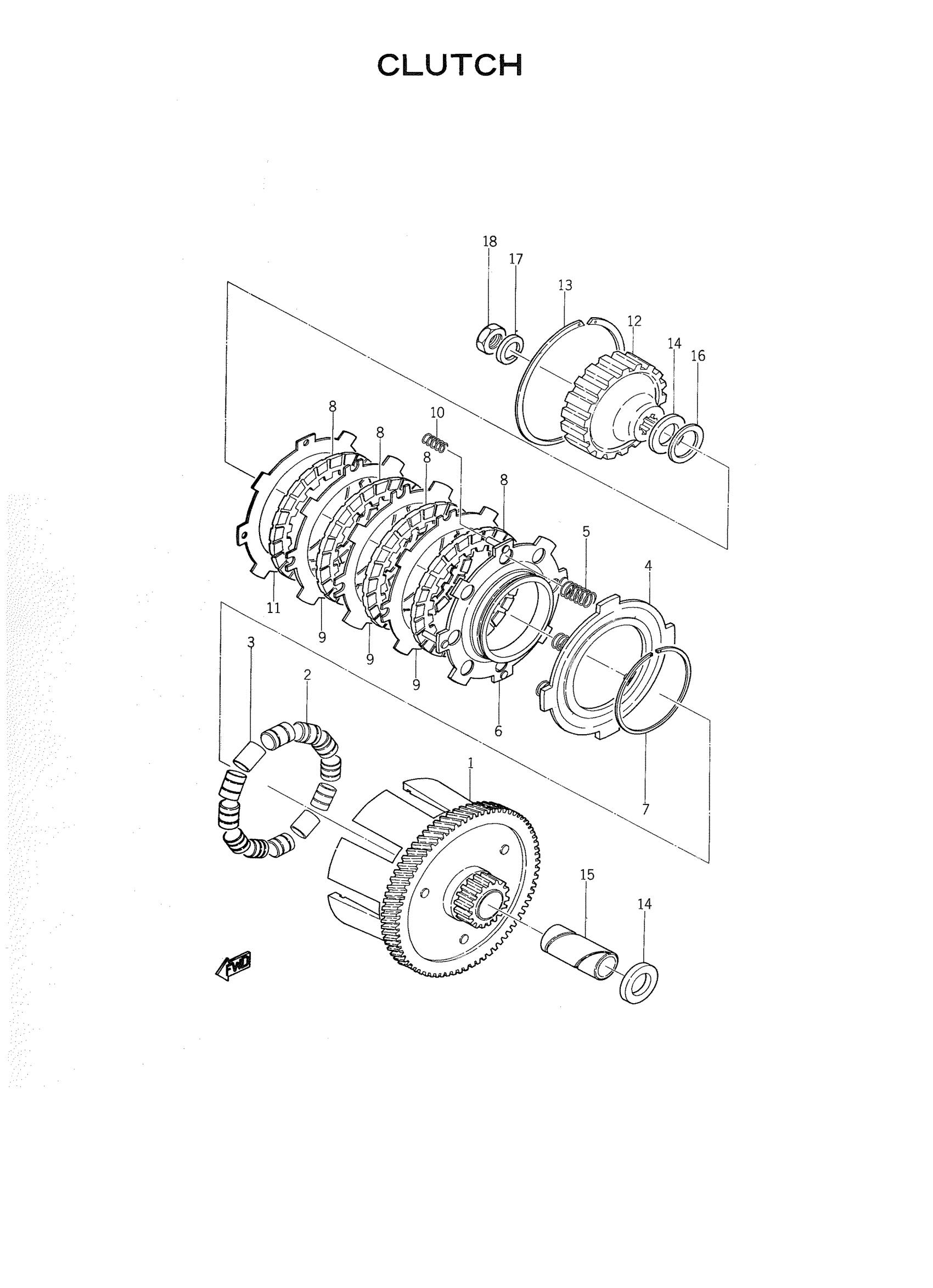

1967 Yamaha U5E (U5E) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

116-16105-02-00

1
Out of stock

2

ROLLER WEIGHT ASY

116-16540-01-00

1
Out of stock

3

ROLLER, WEIGHT STRAIGHT

120-16545-00-00

1
Out of stock

4

SPRING, CLUTCH

116-16523-00-00

1
Out of stock

5

SPRING, CLUTCH

116-16523-00-00

1
Out of stock

6

PLATE,PRESSURE 1

116-16551-90-00

1
Out of stock

7

CLIP

116-16529-00-00

1
Out of stock

8

PLATE, FRICTION

3E5-16521-00-00

1

$14.46

In stock

9

PLATE, CLUTCH 1

116-16524-10-00

1
Out of stock

9

PLATE,CLUTCH 1

116-16524-20-00

1
Out of stock

9

PLATE,CLUTCH 1

116-16524-20-00

1
Out of stock

10

SPRING,COMPRESSION

90501-08034-00

1
Out of stock

11

PLATE, CLUTCH 2

116-16525-00-00

1
Out of stock

12

BOSS, CLUTCH

116-16571-00-00

1
Out of stock

13

CLIP

93451-08009-00

1
Out of stock

14

PLATE, THRUST

116-16164-00-00

1
Out of stock

15

SPACER

116-16181-00-00

1
Out of stock

16

WASHER, PLATE

90201-23315-00

1
Out of stock

17

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

18

NUT, HEXAGON 1371637700

90170-12060-00

—

$8.29

In stock
