1967 Yamaha U5E (U5E) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

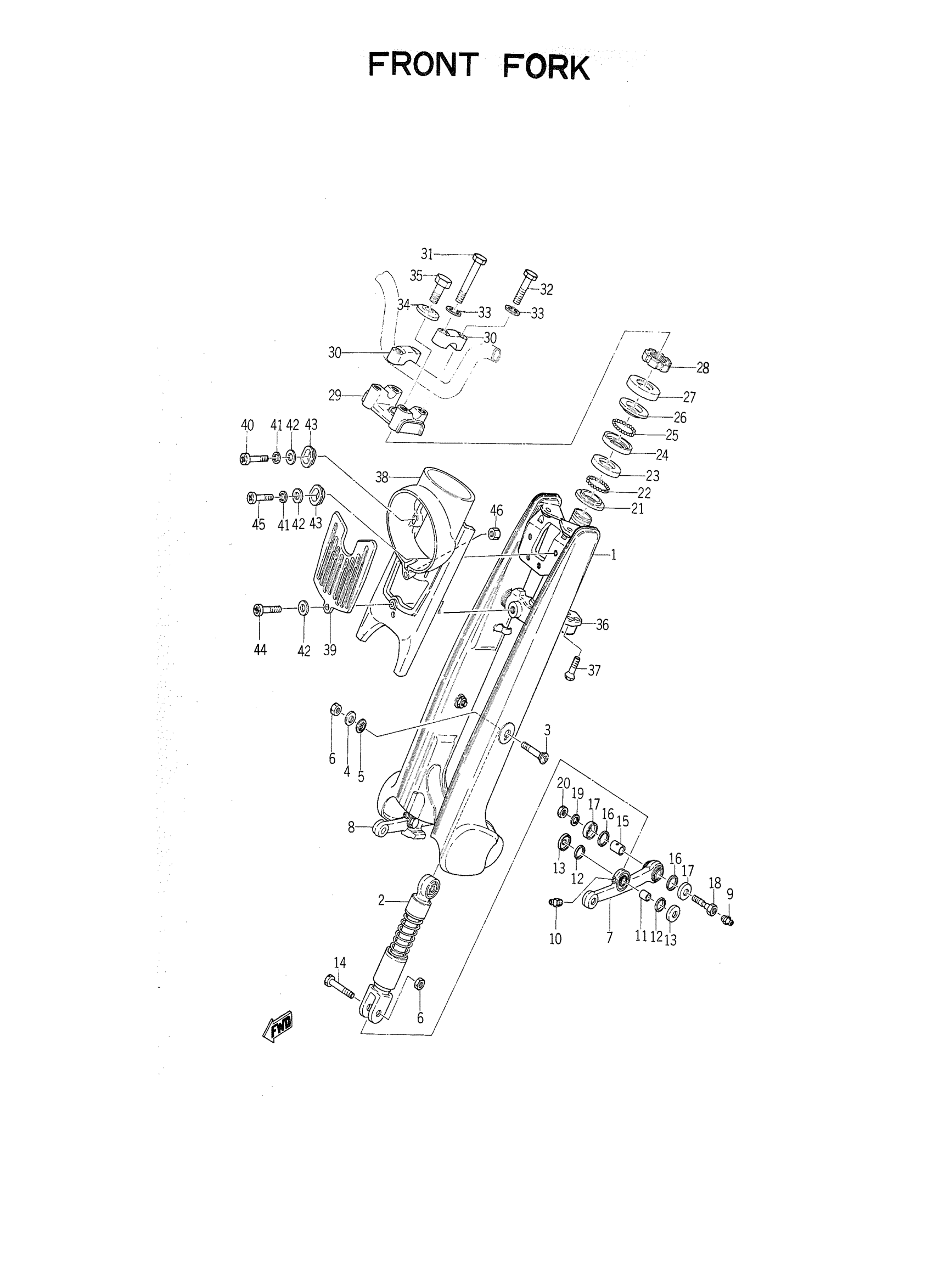

1967 Yamaha U5E (U5E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY

116-23310-01-00

1
Out of stock

2

SHOCK ABSORBER ASY

120-23350-01-00

1
Out of stock

3

BOLT

90109-08318-00

1
Out of stock

4

WASHER,SPEC'L SHAP

90209-08109-00

1
Out of stock

5

WASHER (688)

92990-08400-00

1

$3.46

In stock

6

. NUT

95380-08700-00

1

$3.07

In stock

7

ARM, FRONT LH

116-23361-01-00

1
Out of stock

8

ARM, FRONT RH

116-23371-01-00

1
Out of stock

9

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

10

NIPPLE, GREASE

93700-04002-00

1

$2.70

In stock

11

COLLAR

90387-08045-00

1
Out of stock

12

SEAL. DUST 1

116-23381-00-00

1
Out of stock

13

COVER, DUST SEAL(1)

116-23383-00-00

—

$1.95

In stock

14

SCREW 296233670000

90155-08002-00

—

$3.05

In stock

15

COLLAR, FRONT ARM 2

296-23364-02-00

—

$4.95

In stock

16

SEAL, DUST 2

116-23382-00-00

1
Out of stock

17

COVER, DUST SEAL 2

3AC-23384-00-00

—

$3.62

In stock

18

BOLT (342)

90401-10035-00

—

$3.86

In stock

19

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

20

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

21

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

22

BALL

93501-04011-00

—
Out of stock

23

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

24

RACE, BALL 1

BP2-23411-00-00

—

$8.40

In stock

25

BALL

93503-16003-00

—

$2.14

In stock

26

RACE, BALL 2

BP2-23412-00-00

—

$5.71

In stock

27

COVER, BALL RACE

122-23416-00-00

—

$6.40

In stock

28

NUT

90179-25004-00

—

$20.78

In stock

29

CROWN, HANDLE

116-23435-00-00

1
Out of stock

30

HOLDER, HANDLE UPPER

116-23441-00-00

1
Out of stock

31

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

32

BOLT

97014-08040-00

—

$5.26

In stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

WASHER

90209-10020-00

—

$3.98

In stock

35

BOLT 1222345100

90105-10006-00

—

$9.17

In stock

36

STEERING LOCK ASSEMBLY

2N3-23408-00-00

1
Out of stock

37

SCREW,OVAL HEAD

92601-05012-00

1
Out of stock

38

BODY, HEADLAMP

116-84111-01-24

1
Out of stock

39

PANEL,FRONT

116-23391-01-00

1
Out of stock

40

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

42

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

43

WASHER, SPECIAL

116-23392-00-00

1
Out of stock

44

SCREW PAN HEAD

98580-06040-00

—

$6.17

In stock

45

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

46

NUT, SPECIAL

116-23393-00-00

1
Out of stock
