1967 Yamaha U5E (U5E) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

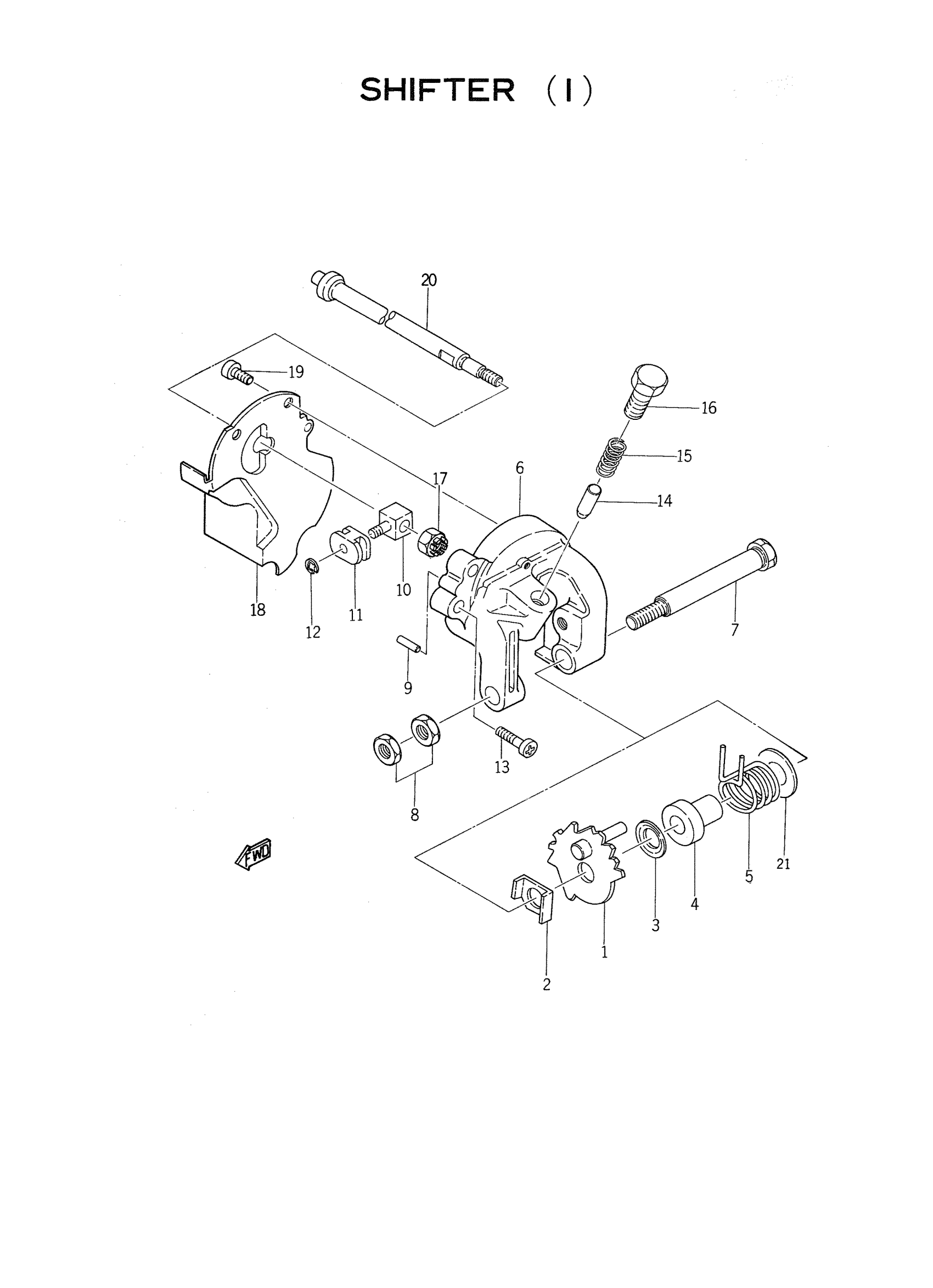

1967 Yamaha U5E (U5E) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM PLATE ASY

116-18440-00-00

1
Out of stock

2

PLATE, THRUST

102-18457-00-00

1
Out of stock

3

SHAFT, CAM

102-18432-00-00

1
Out of stock

4

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

5

SPRING,TORSION

90508-35063-00

1
Out of stock

6

BRACKET,SHIFTER

102-18431-01-00

1
Out of stock

7

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

8

. NUT

95380-08700-00

1

$3.07

In stock

9

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

10

SHIFTER

116-18421-01-00

1
Out of stock

11

RETAINER, SHIFTER

116-18422-00-00

1
Out of stock

12

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

13

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

14

STOPPER, CAM

102-18547-00-00

1
Out of stock

15

SPRING,COMPRESSION

90501-10056-00

1
Out of stock

16

BOLT

90109-10201-00

1
Out of stock

17

CLIP, RING

116-18415-00-00

1
Out of stock

18

SEAL, DUST

116-18428-00-00

1
Out of stock

19

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

20

SHIFTER ROD ASY

116-18410-01-00

1
Out of stock

21

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock
